CHAPTER 4: Operation
Connecting Analog

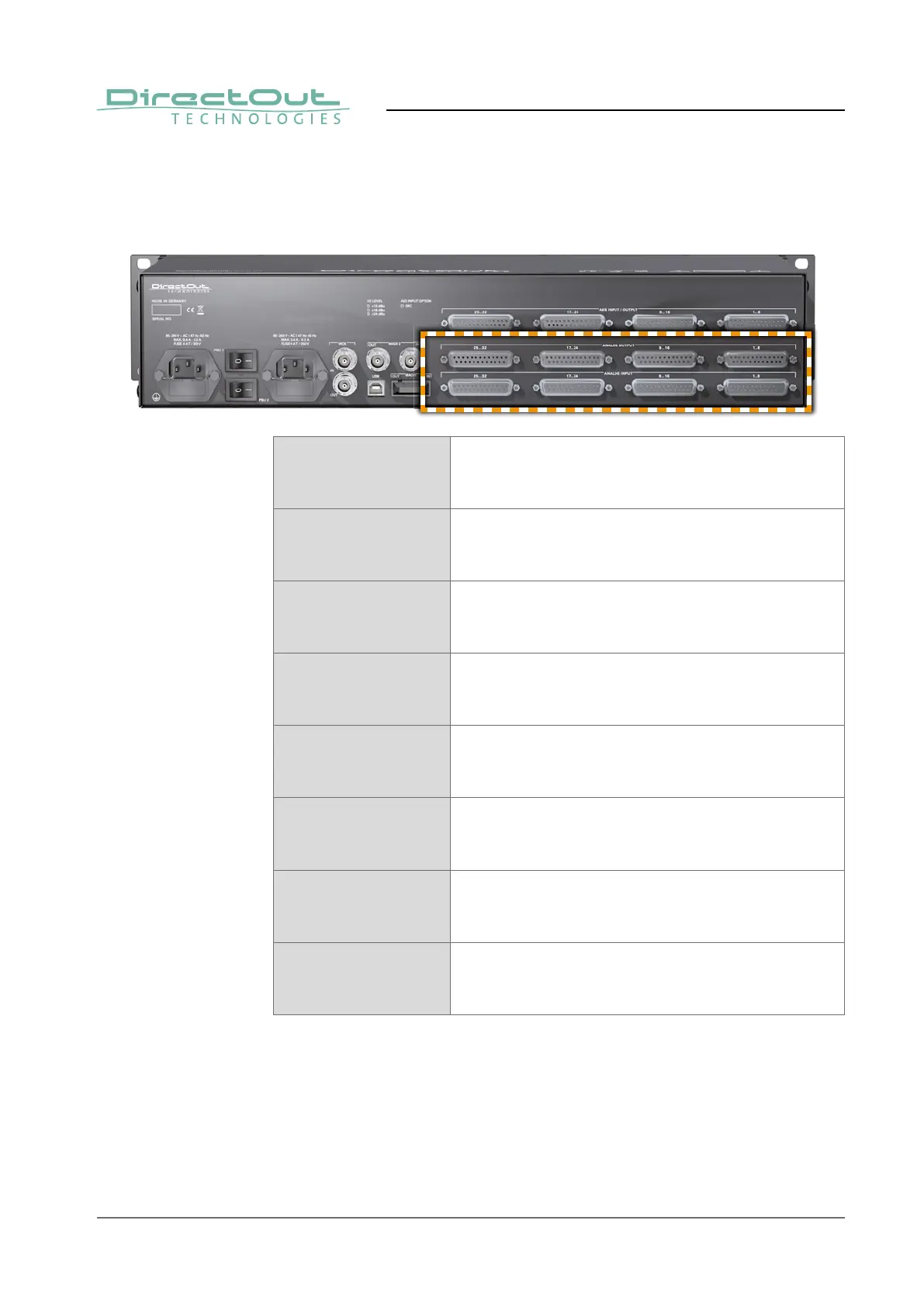

Eight DSUB-25 ports (4 x input / 4 x output) are used for transmission of the analog
audio signals. Each port transmits eight audio channels.
ANALOG OUTPUT
1..8
DSUB-25 Port
Analog audio output (balanced) -
connect audio channels 1 to 8 here
ANALOG OUTPUT
9..16
DSUB-25 Port
Analog audio output (balanced) -
connect audio channels 9 to 16 here
ANALOG OUTPUT
17..24
DSUB-25 Port
Analog audio output (balanced) -
connect audio channels 17 to 24 here
ANALOG OUTPUT
25..32
DSUB-25 Port
Analog audio output (balanced) -
connect audio channels 25 to 32 here
ANALOG INPUT
1..8
DSUB-25 Port
Analog audio input (balanced) -
connect audio channels 1 to 8 here
ANALOG INPUT
9..16
DSUB-25 Port
Analog audio input (balanced) -
connect audio channels 9 to 16 here
ANALOG INPUT
17..24
DSUB-25 Port
Analog audio input (balanced) -
connect audio channels 17 to 24 here
ANALOG INPUT
25..32
DSUB-25 Port
Analog audio input (balanced) -
connect audio channels 25 to 32 here
The pinout complies with AES59 (‘TASCAM pinout’) - see „Appendix A - DSUB-25
Pin assignment“ on page 48.
