page 31 of 60EXBOX.MD Manual - Version 1.0
CHAPTER 4: Operation

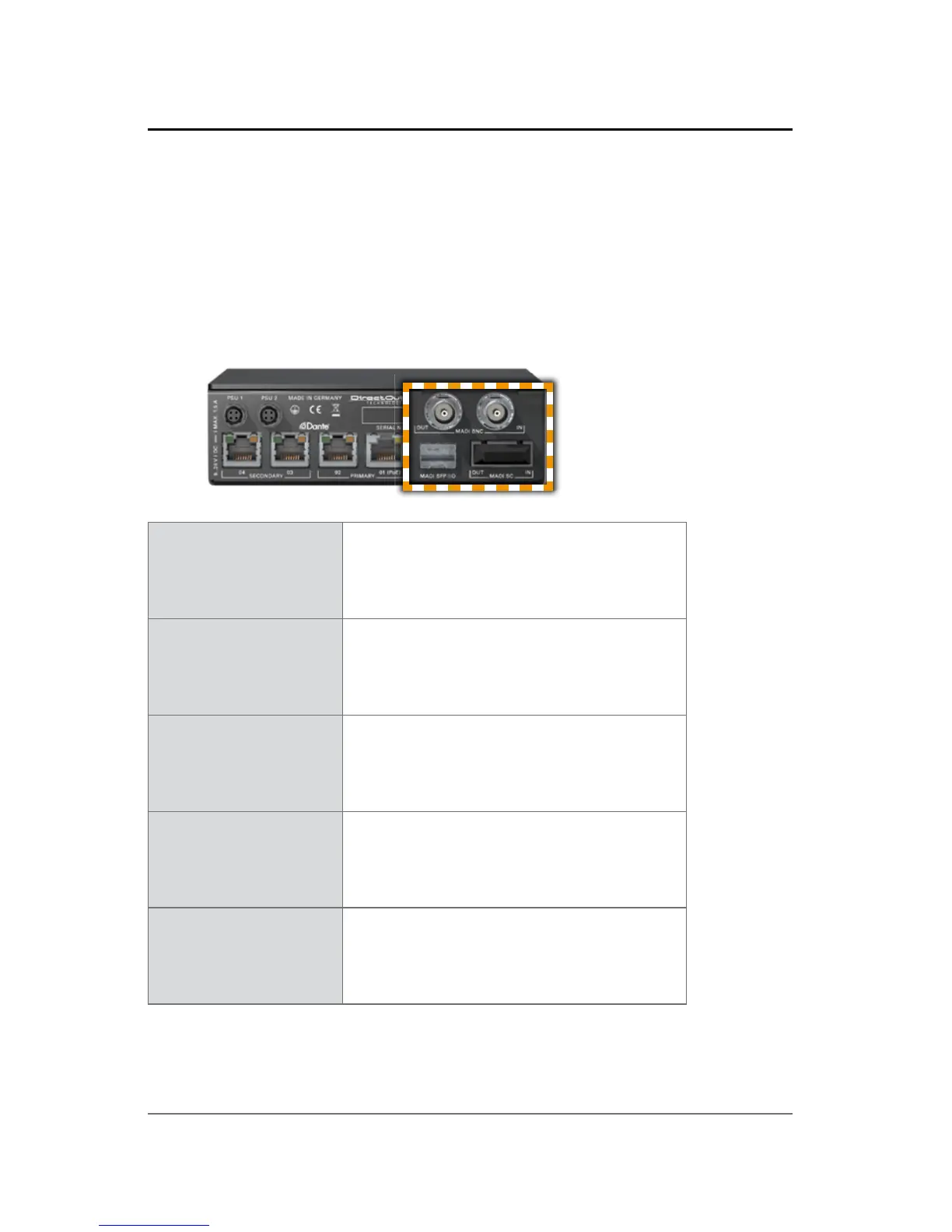

Input / Output - MADI
Three different MADI ports enable fl exible
connectivity in various scenarios. Due to the device's
routing capabilities format conversion between
different MADI formats is possible.
MADI BNC OUT BNC socket
MADI output - connect here for
MADI output signal.
MADI BNC IN BNC socket
MADI input - connect MADI input
signal here.
MADI SC OUT SC socket
MADI output - connect here for
MADI output signal.
MADI SC IN SC socket
MADI input - connect MADI input
signal here.
MADI SFP I/O SFP socket
Insert SFP module here and
connect MADI input/output.
