Setting the Allure EC Smart Vue Subnet ID
ECB-PTU Series controllers can be commissioned with an Allure EC-Smart-Vue sensor by connecting it to the controller. The default Subnet ID for an
Allure EC-Smart-Vue sensor is 1. To commission an ECB-PTU Series controller, the Allure EC-Smart-Vue sensor’s Subnet ID must be set to 1. If the
Subnet ID has been set to another value (for example, the display flashes error code 1 with the Bell icon when the sensor is connected to a controller for
commissioning), change the Subnet ID to 1 as follows:

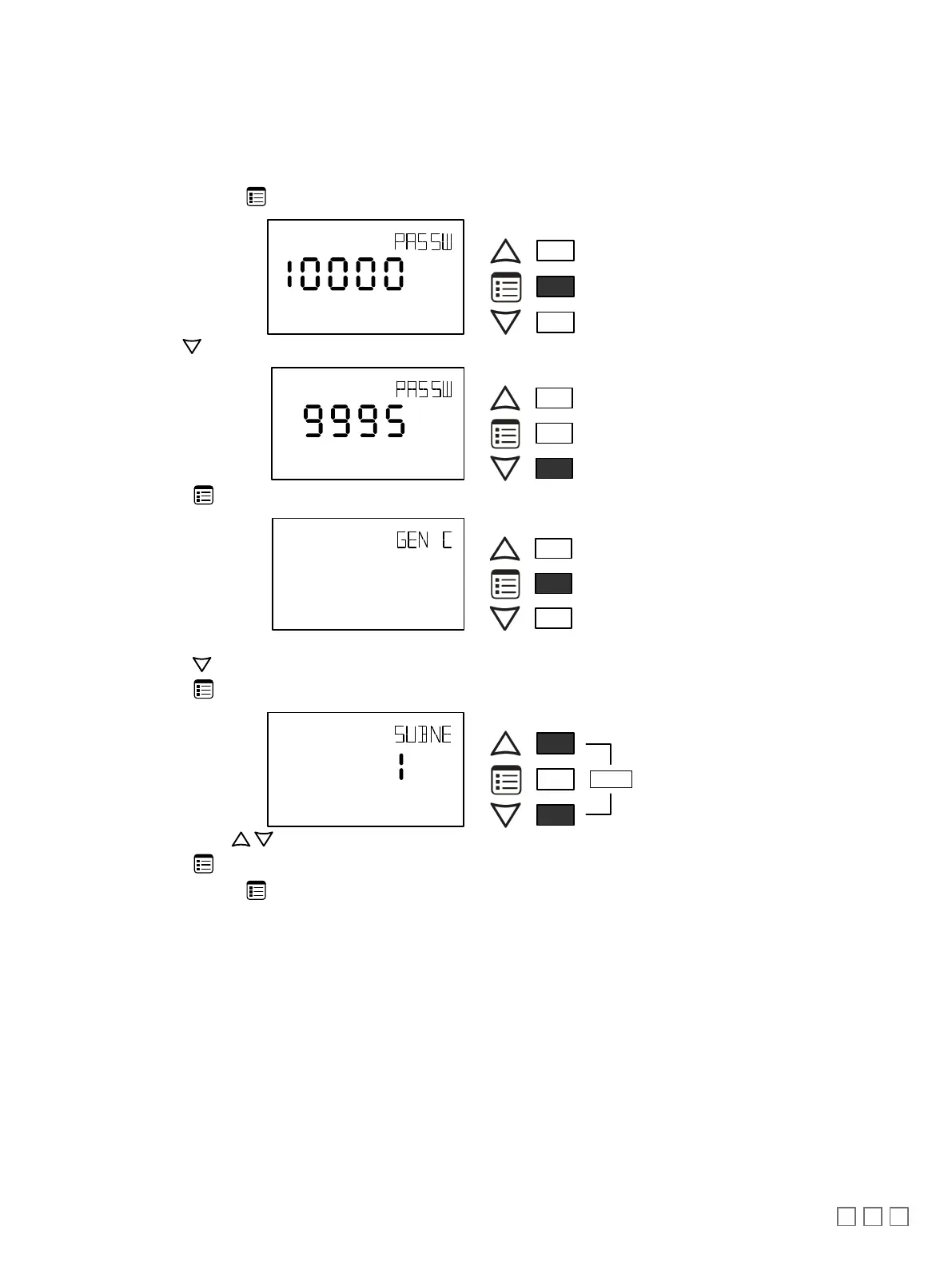

1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat 5e patch cable. Wait for the Bell icon and the number 1 to flash on the display.
2. Press and hold the
Menu
button for 5 seconds to enter the password menu. 10000 is shown on the display.
OR
Screen Timeout: 15 seconds
3. Use the
down
button to set the number to 9995 (this is the default password).
OR
Screen Timeout: 15 seconds
4. Press the
Menu
button to submit the password. Upon submitting the password, the G
EN CFG
menu appears on the display.
OR
Screen Timeout: 30 seconds
5. Press the down button once to enter the
GEN CFG
submenu.
6. Press the
Menu
button several times until SUBNET ID appears on the display. The current controller’s Subnet ID is shown.
OR
Screen Timeout: 30 seconds
7. Use the up and down buttons to set the controller’s Subnet ID to 1. Hold down either the up or down button to fast-advance the display value.
8. Press the
Menu
button once.
9. Press and hold the Menu button for 5 seconds to exit the configuration menu.
The Allure EC-Smart-Vue sensor can now be used to go from one ECB-PTU Series controller to the next for commissioning purposes.
