Commissioning ECB-PTU Series Controllers

When using an Allure EC-Smart-Vue sensor for commissioning ECB-PTU Series controllers (the DIP switch located on the faceplate is set to 0 (all off)

and before code is downloaded to the controller from EC-gfxProgram), connect an Allure EC-Smart-Vue sensor to the controller with its Subnet ID set to

1. During commissioning, the sensor is used to set the controller’s BACnet® MAC Address.

Set the connected controller’s MAC Address as follows:

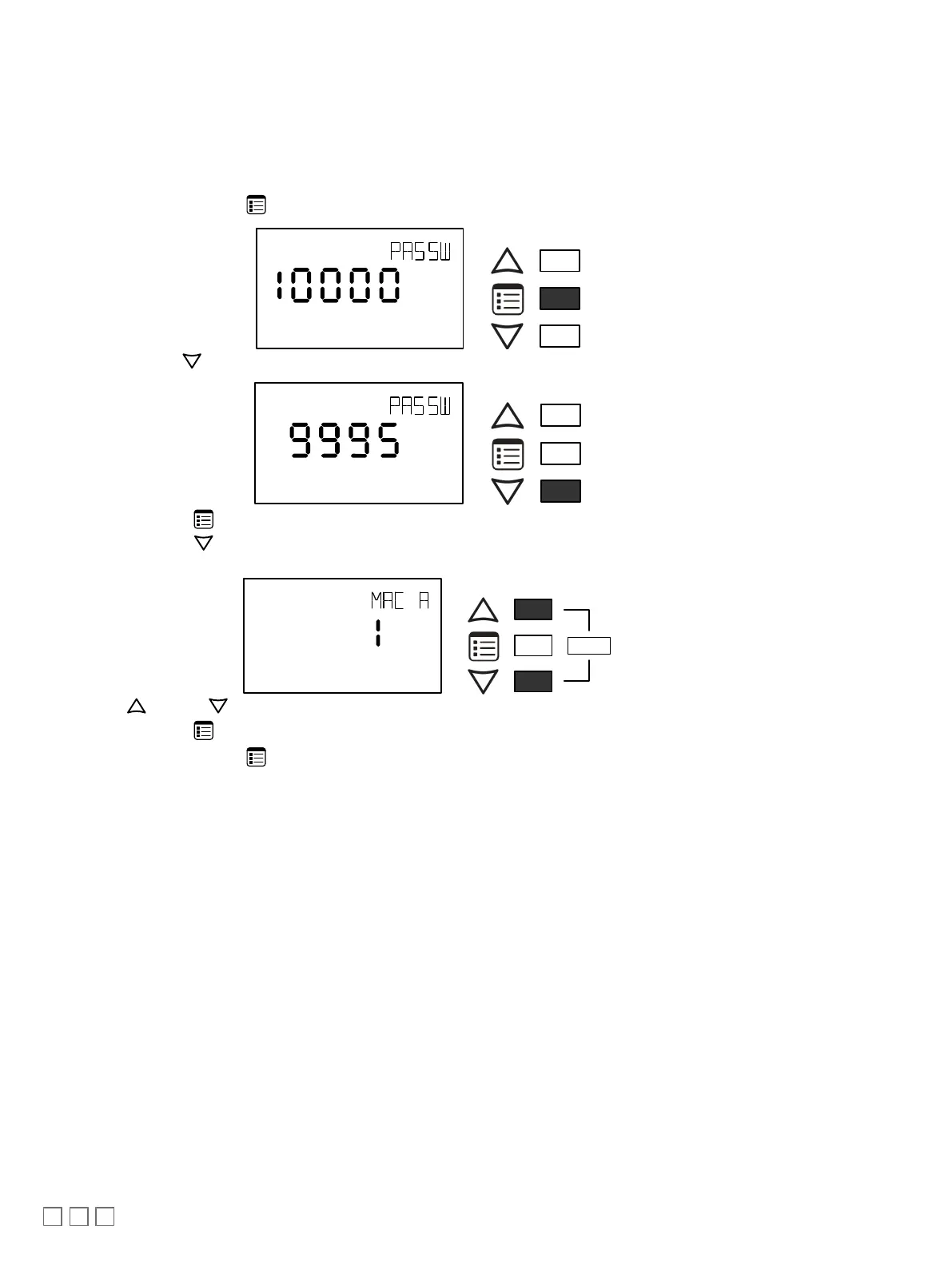

1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat 5e patch cable. Wait for the display to show the room temperature.

2. Press and hold the

button for 5 seconds to enter the password menu. 10000 is shown on the display.

Screen Timeout: 15 seconds

3. Use the

down

button to set the number to 9995 (this is the default password).

Screen Timeout: 15 seconds

4. Press the

button to submit the password. Upon submitting the password, the

GEN CFG

menu appears on the display.

5. Press the down button once to enter the

GEN CFG

submenu. The

MAC ADDRESS

menu is shown with the current controller’s BACnet MAC Ad-

dress.

Screen Timeout: 30 seconds

6. Use the

and

down

buttons to set the controller’s MAC Address. Only addresses from 1 to 127 are recommended to be used.

7. Press the

button once to apply the value.

8. Press and hold the

button for 5 seconds to exit the configuration menu.

Once the BACnet MS/TP network is operational, the controller can be programmed with EC-gfxProgram. For each Allure EC-Smart-Vue sensor, set its

Subnet ID number to the block number of its associated CommSensor block in EC-gfxProgram. This is done in the sensor’s

GEN CFG

menu under

SUB-

NET ID
