The Device Instance can be changed once the controller has been commissioned through the network management software interface.
The Device Instance can be changed once the controller has been commissioned through the network management software interface or through the
color LCD screen’s Settings menu (when equipped).
Temporary Network Access
To temporarily access the BACnet MS/TP LAN for commissioning and maintenance purposes, connect a BACnet MS/TP Adaptor to the NET PORT au-
dio plug. Wire a standard ⅛” (3.5 mm) three-conductor stereo jack as shown below.
The BACnet MS/TP Adaptor must have an electrically-isolated RS 485 port. Otherwise a ground path from the
BACnet network will be made through the computer that will disrupt BACnet network communications.
Net
Port
To BACnet MS/TP
Adaptor
NET+
NET-
Shield
LAN Access
Connector
EC-Net Pro
- Temporary
Commissioning and
Maintenance
Connection
- No EOL Resistors are
Necessary
BACnet MS/TP Adaptor
with Isolated RS-485 Port
Cable Supplied with
BACnet MS/TP Adaptor
NET+ (White)
NET- (Red)
Shield (bare)

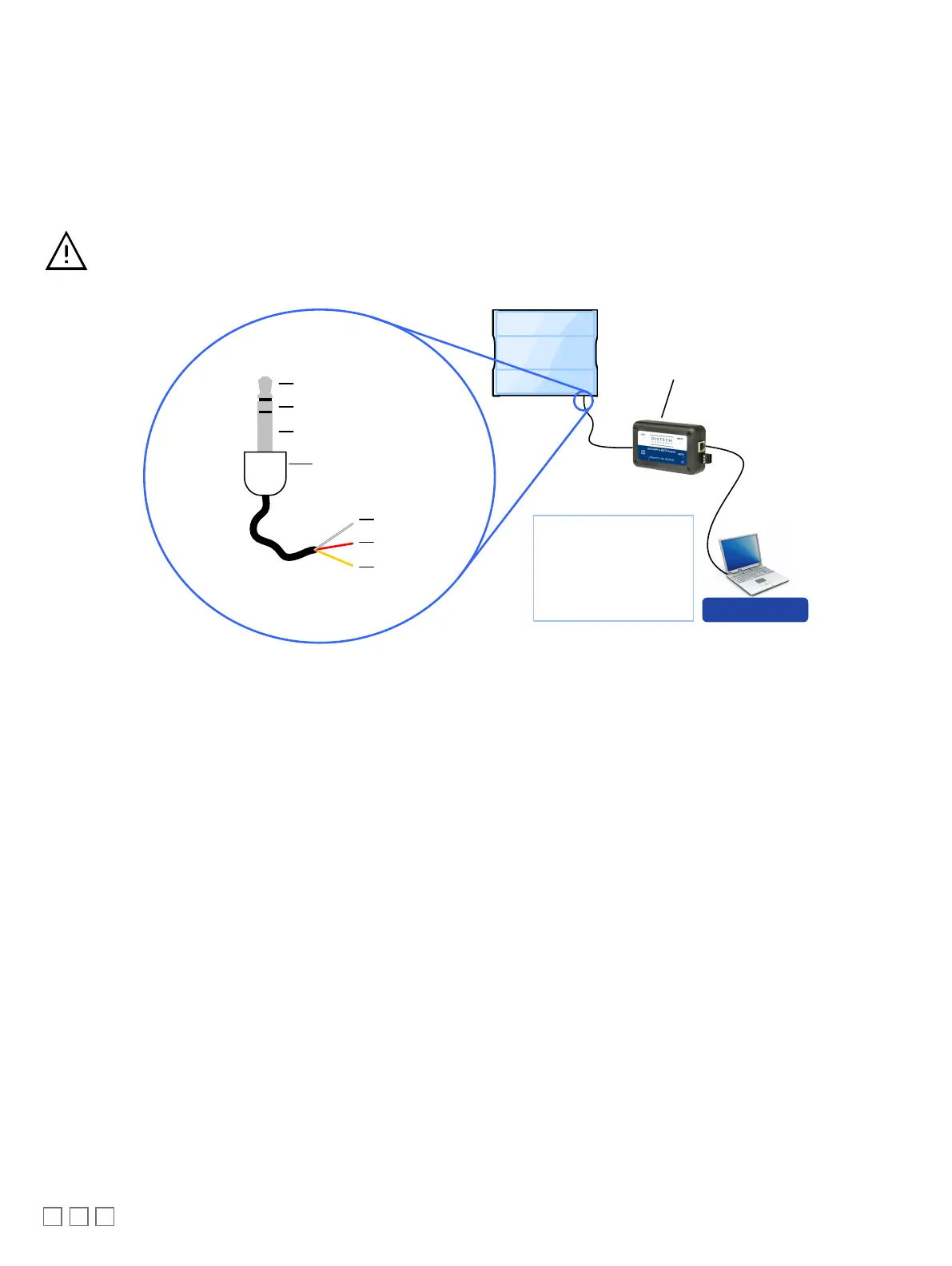

Figure13: ⅛” (3.5 mm) Stereo Jack Connection for a Portable Router

Distech Controls ECB Series Specifications

General

Enclosure Rating	IP20
Communication Ports	Ethernet, RS-485
Protocols Supported	BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP
Inputs	Universal Inputs (configurable as Analog or Digital)
Outputs	Analog Outputs, Digital Outputs
Processor	ARM Cortex
Power Supply	24 VAC/DC
Controller Type	Programmable BACnet Advanced Application Controller (B-AAC)
