Mounting Instructions
The controllers can be mounted on a DIN rail to speed up the installation procedure. They are also equipped with two mounting holes 0.25” x
0.165” (6.35mm x 4.191mm). The controllers can be mounted in a panel or on a wall by using appropriate screw types (use sheet metal, thread forming,
or self-tapping screws accordingly).
The controller’s mounting orientation must be horizontal with controller’s back attached to a vertical wall surface.

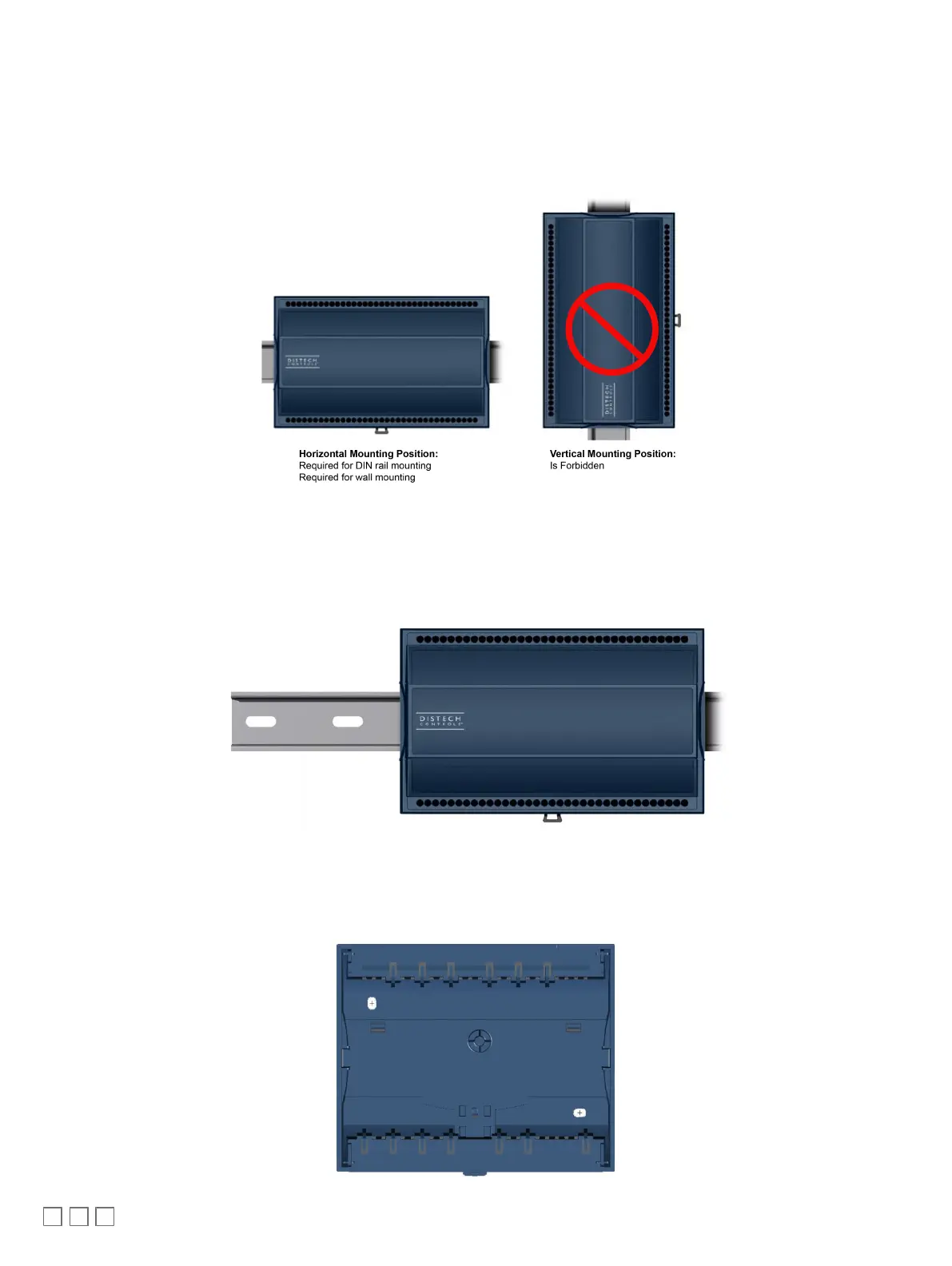

Figure5: Permitted Mounting Positions
DIN Rail-Mounted Installation
1. Ensure the DIN rail is properly mounted on the wall.
2. Simply clip controller onto the DIN rail.
Wall-Mounted Installation
3. Open the enclosure by separating the front and back plate while pressing on the side clips.
4. Use the back plate’s mounting holes to mark the location of any holes that need to be drilled.
5. Drill the holes.
6. Clean the surface and mount the controller using the appropriate screw types.

Distech Controls ECB Series Specifications

General

Enclosure Rating	IP20
Communication Ports	Ethernet, RS-485
Protocols Supported	BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP
Inputs	Universal Inputs (configurable as Analog or Digital)
Outputs	Analog Outputs, Digital Outputs
Processor	ARM Cortex
Power Supply	24 VAC/DC
Controller Type	Programmable BACnet Advanced Application Controller (B-AAC)
