Input Wiring
Before connecting a sensor to the controller, refer to the installation guide of the equipment manufacturer.
£ For a wire length less than 75’ (23m), either a shielded or unshielded 18AWG wire may be used.
£ For a wire up to 200’ (61m) long, a shielded 18AWG wire is recommended.
£ The shield of the wire should be grounded on the controller side only and shield length should be kept as short as possible.

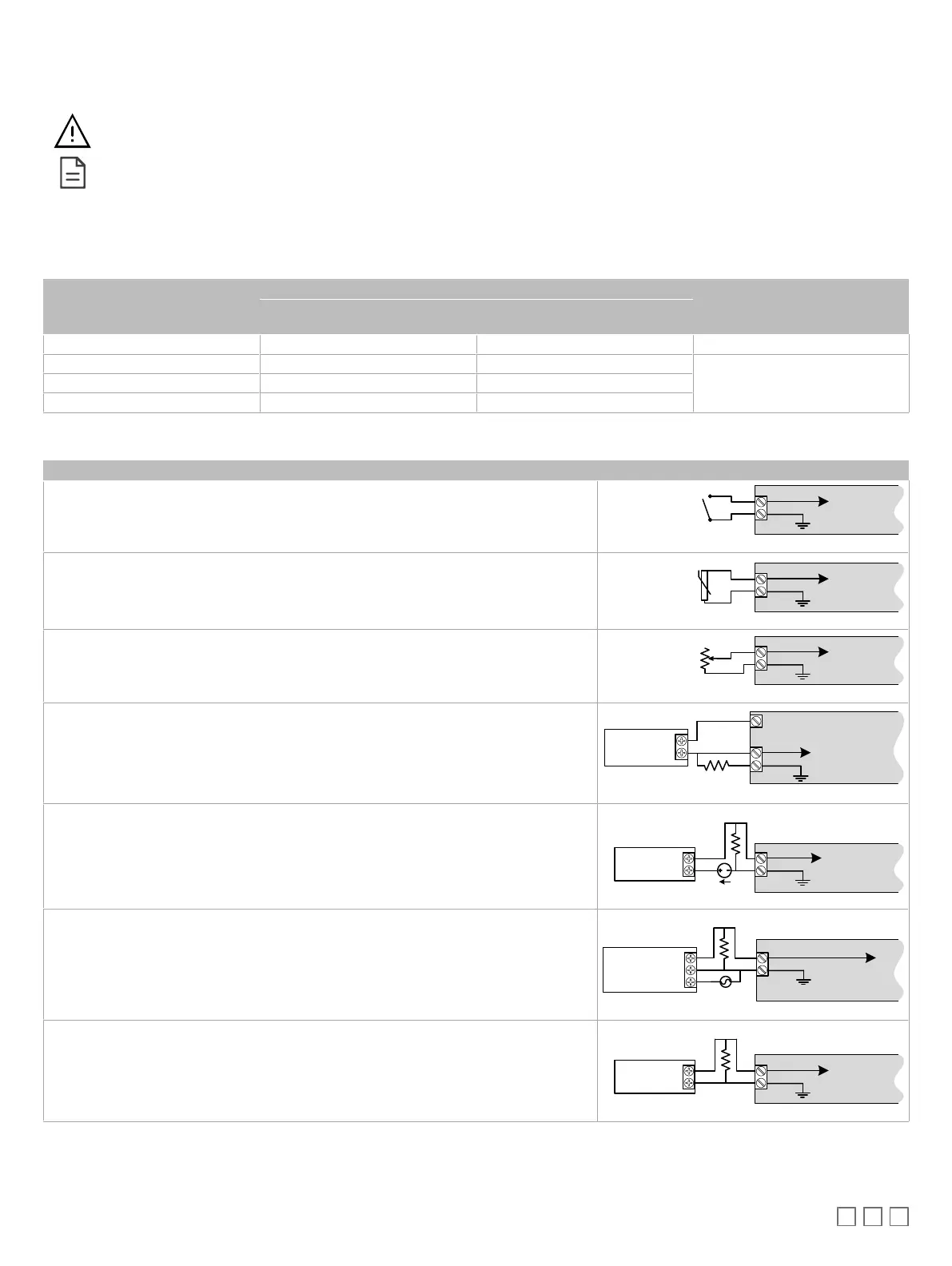

Table 1 shows the ECB-203, ECB-300, ECB-400, and ECB-600 Series controller pulse and current input jumper support. Table 2 shows the available
universal input (UIx) wiring methods.
Controller Fast and Slow Pulse Inputs support Current Input Jumper support:
0 to 10VDC / 0 to 20mA
50Hz: 10ms minimum ON/OFF
(Fast Pulse)
1Hz: 500ms minimum ON/OFF
(Slow Pulse)
ECB‑203 None UI1 to UI6 None
ECB‑300 UI1 to UI4 UI5 to UI10 Yes; see Table 2
ECB-400 Series UI1 to UI4 UI5 to UI12
ECB-600 Series UI1 to UI4 UI5 to UI16
Table1: Controller Input Support
Sensor Input Type Input Connection Diagram
£ Dry Contact input.
UIx
COM
To Digital
Input
Digital Dry Contact
NO-NC
£ RTD input (for example, 1000Ω).
£ Thermistor Input (for example, 10kΩ type II and III).
UIx
COM
To Analog-
To-Digital
Converter
RTD/
Thermistor
£ Resistive input, (for example, use with 10kΩ and 100kΩ potentiometers).
UIx
COM
To Analog-
To-Digital
Converter
Potentiometer
10kΩ
ECB
-203 Series:
£ 0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by the controller’s internal
15VDC power supply.
+
–
Sensor
0-20mA
UIx
COM
+15VDC
To Controller’s
Analog-To-Digital
Converter
249Ω / ¼W
ECB
-203 Series:
£ 0 to 20mA input used with a 2-wire, 0 to 20mA sensor powered by an external 24VDC
power supply.
-
+
0-20mA
Sensor
UIx
COM
To Analog-
To-Digital
Converter
24VDC
249Ω ¼W
ECB
-203 Series:
£ 0 to 20mA input used with a 3-wire, 0 to 20mA sensor powered by an external 24VAC
power supply.
AC
+
Common
0-20mA
Sensor
UIx
COM
To Analog-
To-Digital
Converter
24VAC
249Ω ¼W
ECB
-203 Series:
£ 0 to 20mA input used with a sensor powered by its own power source.
+
-
0-20mA
Sensor
UIx
COM
To Analog-
To-Digital
Converter
249Ω ¼W

Distech Controls ECB Series Specifications

General

Enclosure Rating	IP20
Communication Ports	Ethernet, RS-485
Protocols Supported	BACnet MS/TP, BACnet IP, Modbus RTU, Modbus TCP
Inputs	Universal Inputs (configurable as Analog or Digital)
Outputs	Analog Outputs, Digital Outputs
Processor	ARM Cortex
Power Supply	24 VAC/DC
Controller Type	Programmable BACnet Advanced Application Controller (B-AAC)
