Controls - 23 JT30 /JT30 All Terrain Operator’s Manual

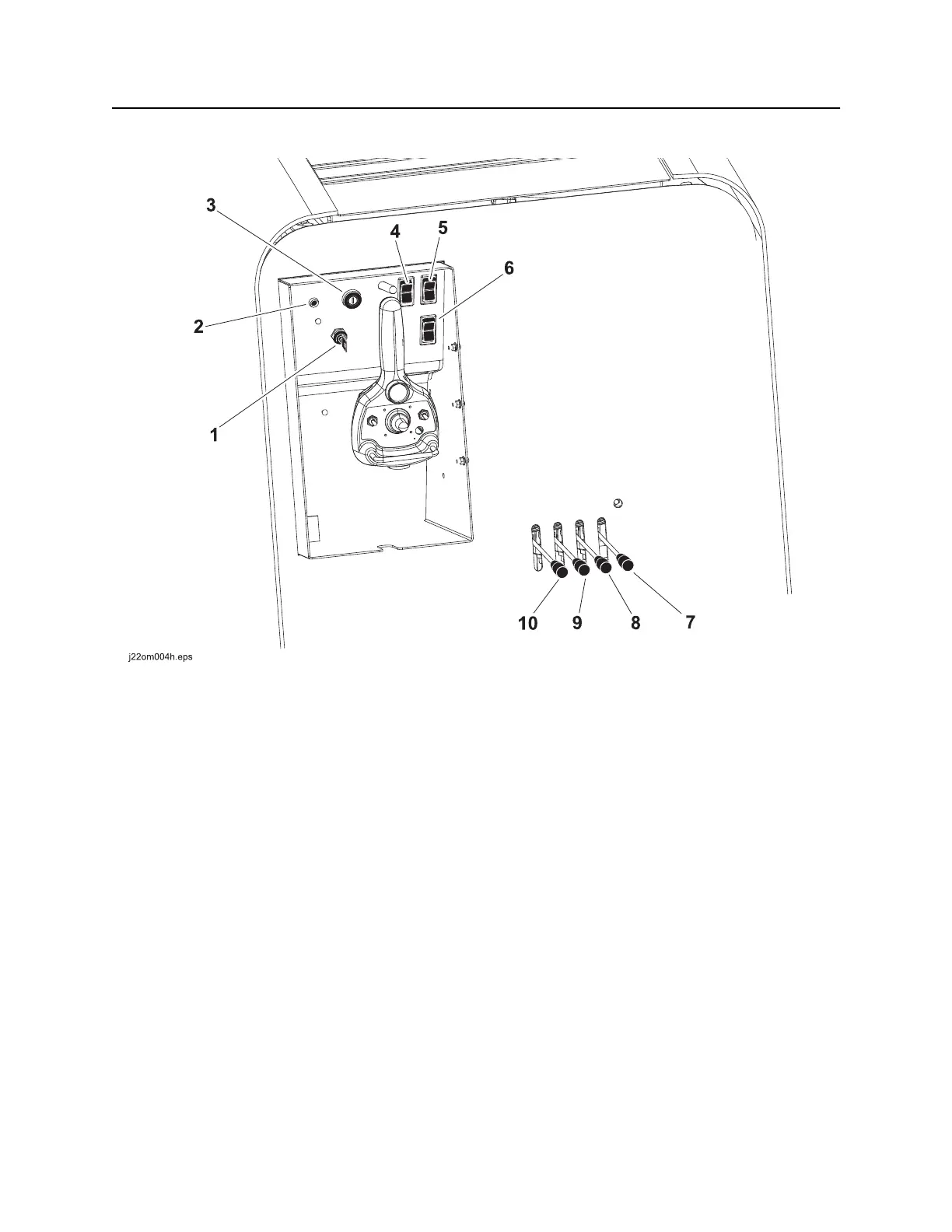

Set-Up Console
CMW
Set-Up Console
1. Tracker control key
2. Cold start wait indicator
3. Ignition switch
4. Left track switch
5. Right track switch
6. Engine shutdown override switch
7. Right stabilizer control
8. Left stabilizer control
9. Back frame tilt control
10. Front frame tilt control
