12
CROSS5-7-8 - IP1747

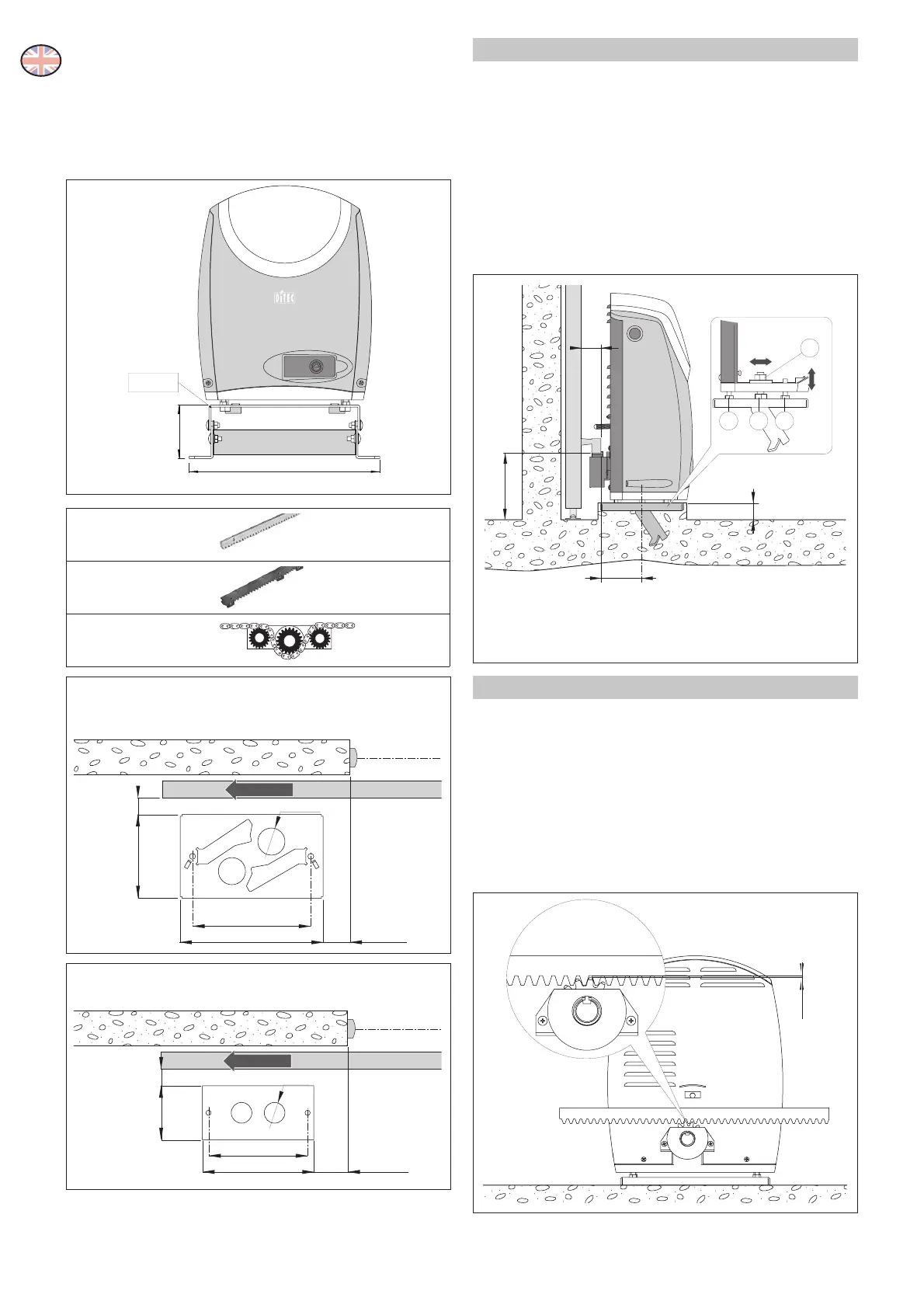

- Lay a concrete foundation with buried anchoring brackets
and the base plate, making sure that it is pefectly level and
smooth, complying with the measurements shown in figure.
Note: if the cement area is already present, adjustable
SUPCS base can be used.
Attention: the gearmotor must be suitably raised from the
ground to avoid flooding.
(*) CROSSCRI X = 40
(*) CROSSCRN2 X = 40
(**) CROSS7EHTC
3.3 Geared motor installation
- Release the gearmotor and remove the key. Loosen the
three frontal screws and remove the casing.
- Position the gearmotor onto the base plate.
- Gearmotor adjustments
Horizontally slide the gearmotor on the slots of the anchor
brackets.
Vertically with the four levelling screws [A].
Note: while adjusting vertically, keep the motor slightly
raised above the base plate so as to allow enough space to
secure the rack and to make any subsequent adjustments,
if necessary.
3.4 Rack installation
- Release the gearmotor and set the gate in the open po-
sition. Place the rack on pinion [14] and move the gate
manually to secure the rack along its full length.
- Once the rack has been secured, vertically adjust the
geared motor so as to have a gap of 2 to 3 mm between
the pinion and the rack with screws [A].
- Firmly secure the gearmotor with the nuts [F].
- Slightly lubricate the rack and pinion after assembly.
Manually check that the gate slides evenly and without
friction.
