In the event of failure or if there is no voltage:
CUBIC6SBL: insert the lock release lever and rotate by 180° (g.1). Release any electric lock. Manually open
the gate.
CUBIC6SBD: insert the lock release key in the lock and rotate by 180° (g.2). Release any electric lock. Ma-
nually open the gate.
To block the door wings again: rotate the lock release lever or key by 180°. Move the door wing manually until
it is completely reattached.
WARNING: the door wing block and release operations must be performed with the motor idle.
9.2 Manual release instructions

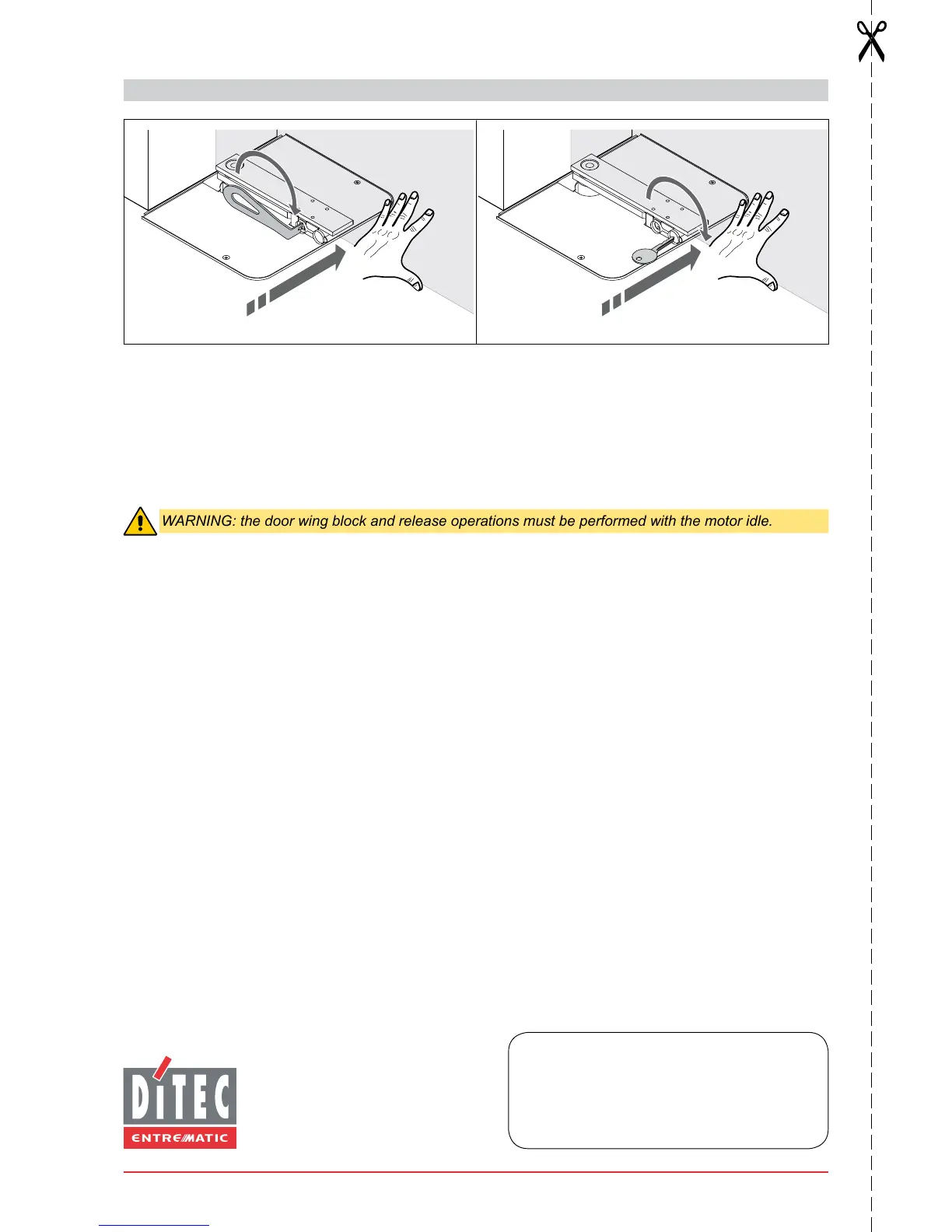

Fig. 1 Fig. 2
Installer:
DITEC S.p.A.
Via Mons. Ban, 3
21042 Caronno Pertusella (VA) - ITALY
Tel. +39 02 963911 - Fax +39 02 9650314
www.ditec.it - ditec@ditecva.com
