DITEC CUBIC6 - Installation; Preliminary Checks; Foundation Case Installation; Lever Mechanisms Installation

9
IP1812EN • 2012-07-10

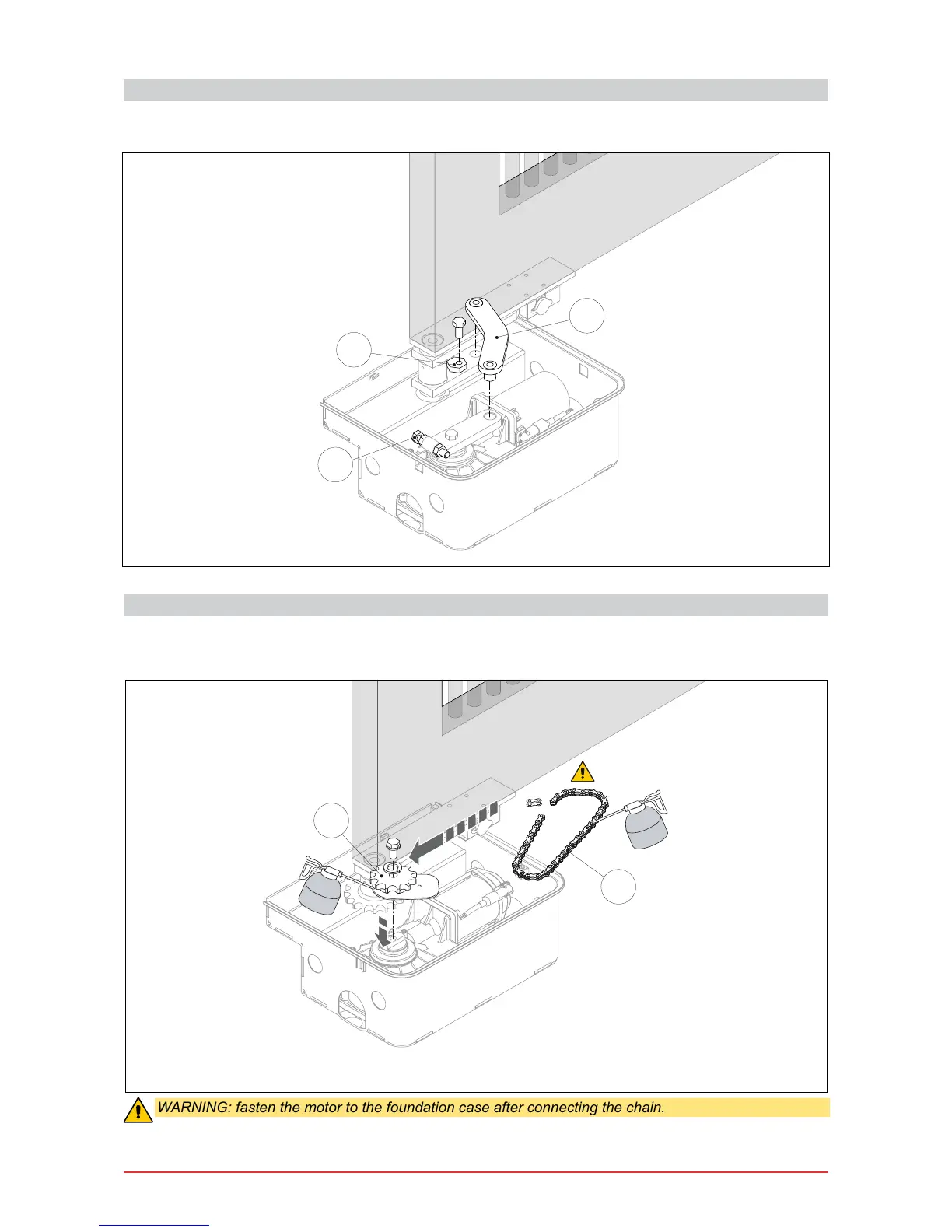

6.6 Installation with CUBIC6L-CUBIC6LG
Insert lever [A] on the gearmotor and position the mechanical stop [B] and [C] and adjust it, as shown in the gure.
NOTE: the gure shows the motor installed on the right door wing.
B
C
A
6.7 Installation with CUBIC6TC
Insert pinion [A] and join the two pinions by means of the chain [B], as shown in the gure.
Lubricate the chain and the lever mechanism as indicated in the gure.
B
A
WARNING: fasten the motor to the foundation case after connecting the chain.
