DITEC CUBIC6 Installation And Maintenance Manual

5
IP1812EN • 2012-07-10

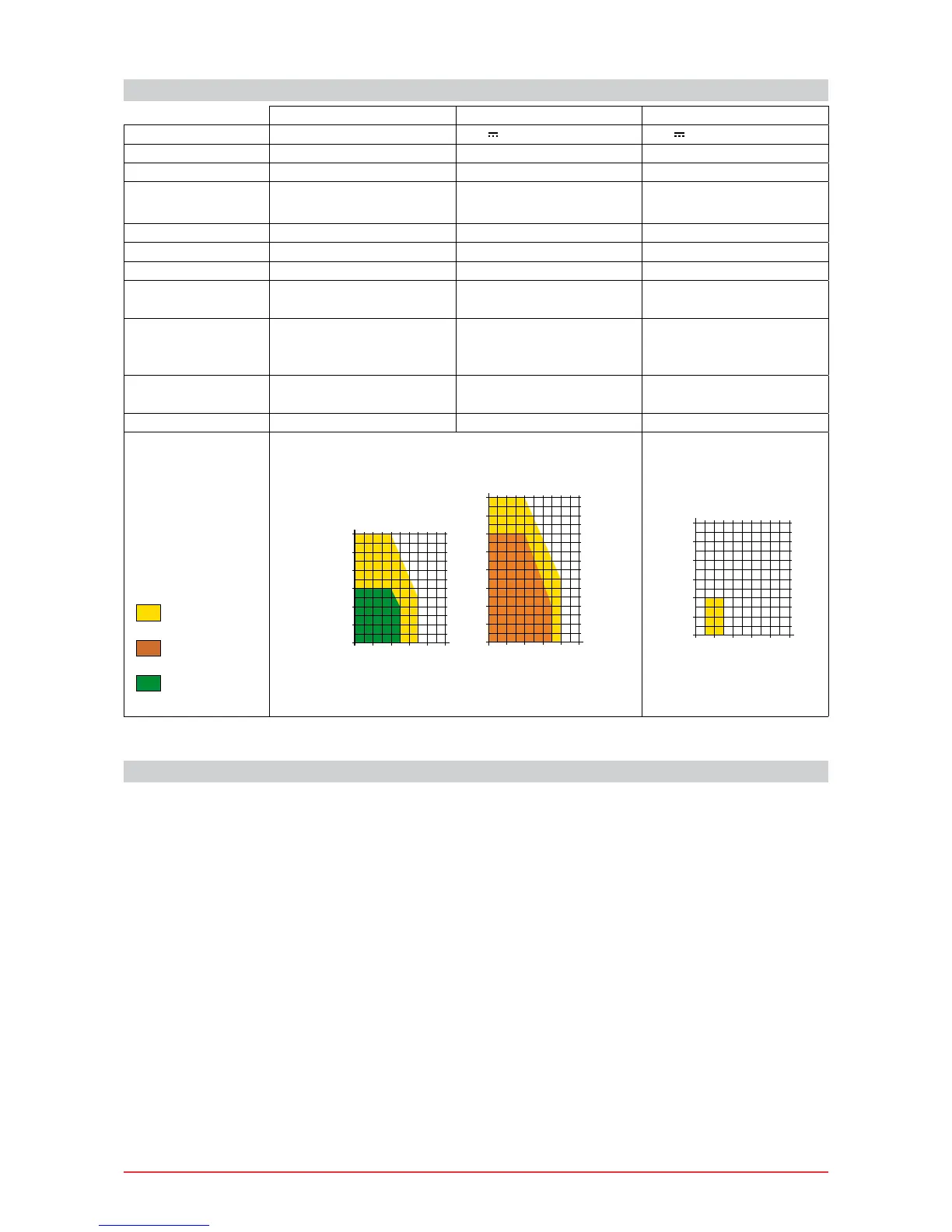

3. TECHNICAL DATA
CUBIC6 CUBI6H CUBIC6HV
Power supply 230 V~ 50 Hz 24 V
24 V
Absorption 1,5 A 12 A 12 A
Couple 340 Nm 340 Nm 220 Nm
Capacitor 10 µF - -
Opening time 18 s/90° 12÷25 s/90° 6÷13 s/90°
Max opening 110°-180° (see page 7) 110°-180° (see page 7) 110°-180° (see page 7)
Service class 3 - FREQUENT 4 - INTENSIVE 4 - INTENSIVE
Intermittence
S2 = 15 min
S3 = 25%
S2 = 30 min
S3 = 50%
S2 = 30 min
S3 = 50%
Temperature
min -20° C max +55° C
min -35° C max +55° C
(with NIO enabled)
min -20° C max +55° C
min -35° C max +55° C
(with NIO enabled)
min -20° C max +55° C
min -35° C max +55° C
with NIO enabled
Degree of
protection
IP67 IP67 IP67
Control panel E2 - LOGICM VIVAH VIVAH
Applications
m = leaf width
kg = leaf weight
600 kg
500 kg
400 kg
300 kg
200 kg
100 kg
m 1 2 3 4 5
600 kg
700 kg
800 kg
500 kg
400 kg
300 kg
200 kg
100 kg
m12345
600 kg
500 kg
400 kg
300 kg
200 kg
100 kg
m1234 5
3.1 Operating instructions
Service class: 3 (minimum 30 cycles a day for 10 years or 60 cycles a day for 5 years).
Use: FREQUENT (For vehicle or pedestrian accesses to town houses or small condominiums with frequent use).
Service class: 4 (minimum 100 cycles a day for 10 years or 200 cycles a day for 5 years)
Use: INTENSIVE (For vehicle or pedestrian accesses to large condominiums, industrial or commercial complexes
and parking lots with very frequent use).
- Performance characteristics are to be understood as referring to the recommended weight (approx. 2/3 of
maximum permissible weight). When used with the maximum permissible weight a reduction in the above
mentioned performance can be expected.
- Service class, running times, and the number of consecutive cycles are to be taken as merely indicative
Having been statistically determined under average operating conditions, and are therefore not necessarily
applicable to speci c conditions of use.
- Each automatic entrance has variable elements such as: friction, balancing and environmental factors,
all of which may substantially alter the performance characteristics of the automatic entrance or curtail
its working life or parts thereof (including the automatic devices themselves). The installer should adopt
suitable safety conditions for each particular installation.
CUBIC6L*
CUBIC6LG**
CUBIC6TIG
CUBIC6TC
[CUBIC6C*] [CUBIC6CG**]
