8
IP1812EN • 2012-07-10
6. INSTALLATION
Unless otherwise specied, all measurements are expressed in millimetres (mm).
6.1 Preliminary checks
Check that the structure is sufciently sturdy and that the hinge pivots are properly lubricated. Provide an
opening and closing stop.
Note: if the gate wing is more than 2.5 m wide, an electric lock should be installed.
6.2 Foundation case installation
Install the foundation case as indicated in the relevant manual.
6.3 Lever mechanisms installation
Choose and install the lever mechanisms as indicated in the relevant manual.
6.4 Wing release installation
Choose and install the door release mechanisms as indicated in the relevant manual.
WARNING: to install the releases more easily, we advise you to position the gate at the centre of the foundation
casing and remove the lid, in such a way as to have enough space for xing the screws.

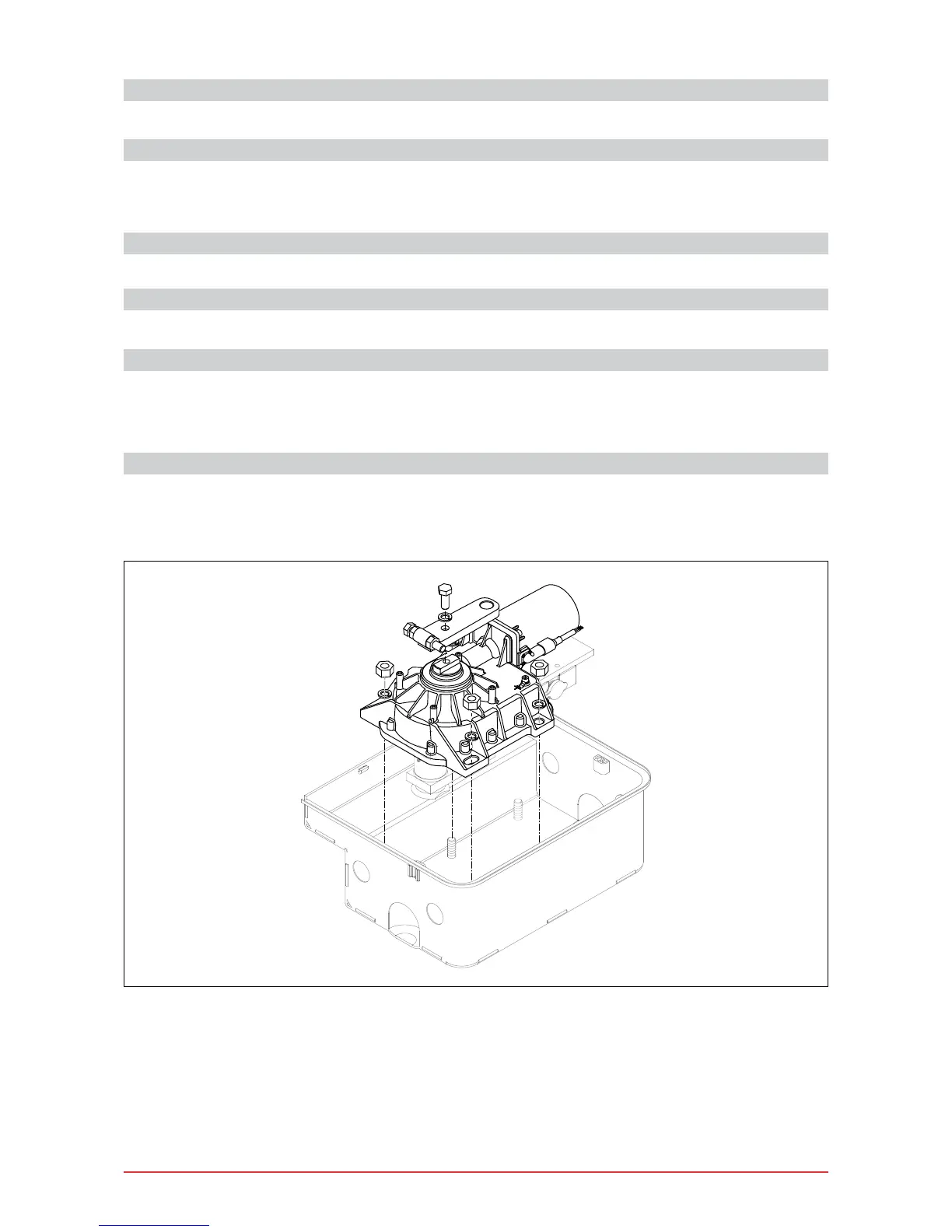

6.5 Geared motor installation
After installing the foundation casing, the respective lever and release mechanisms go before the installation
of the gear motor as shown in the gure. NOTE: the gure shows the motor installed on the right door wing.
Carefully clean the bottom of the foundation casing from dirt or cement to guarantee an even laying of the
gearmotor.
