DITEC CUBIC6 - Manual Release Instructions

33
IP1812EN
DETACH AND DELIVER TO THE CUSTOMER
For any problems and/or information, contact the Technical Service.
Manual release instructions
WARNING: the door wing block and release operations must be performed with the
motor idle.
In the event of failure or if there is no voltage:
CUBIC6SBL: insert the lock release lever and rotate by 180° (fig.1). Release any electric lock.
Manually open the gate.
CUBIC6SBD: insert the lock release key in the lock and rotate by 180° (fig.2). Release any electric
lock. Manually open the gate.
To block the door wings again: rotate the lock release lever or key by 180°. Move the door wing
manually until it is completely reattached.

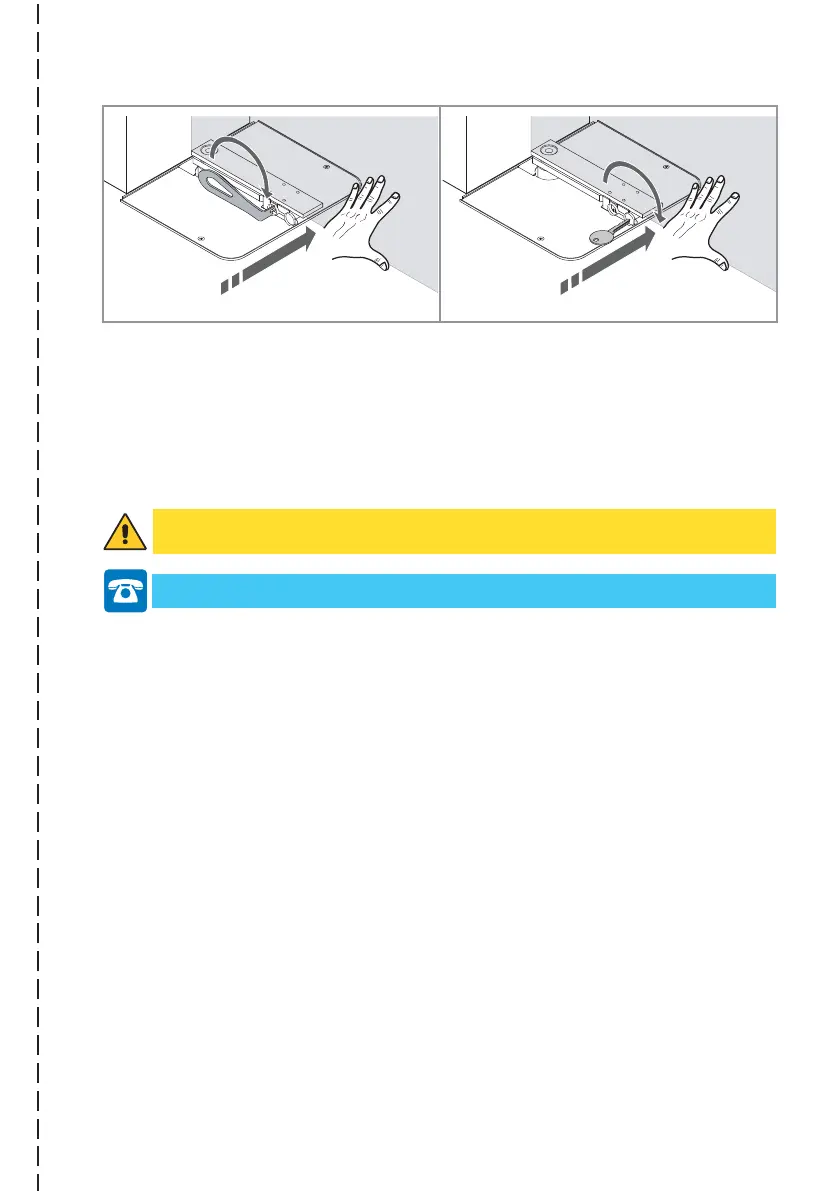

Fig. 1 Fig. 2
