DITEC CUBIC6 User Manual

24
IP1812EN

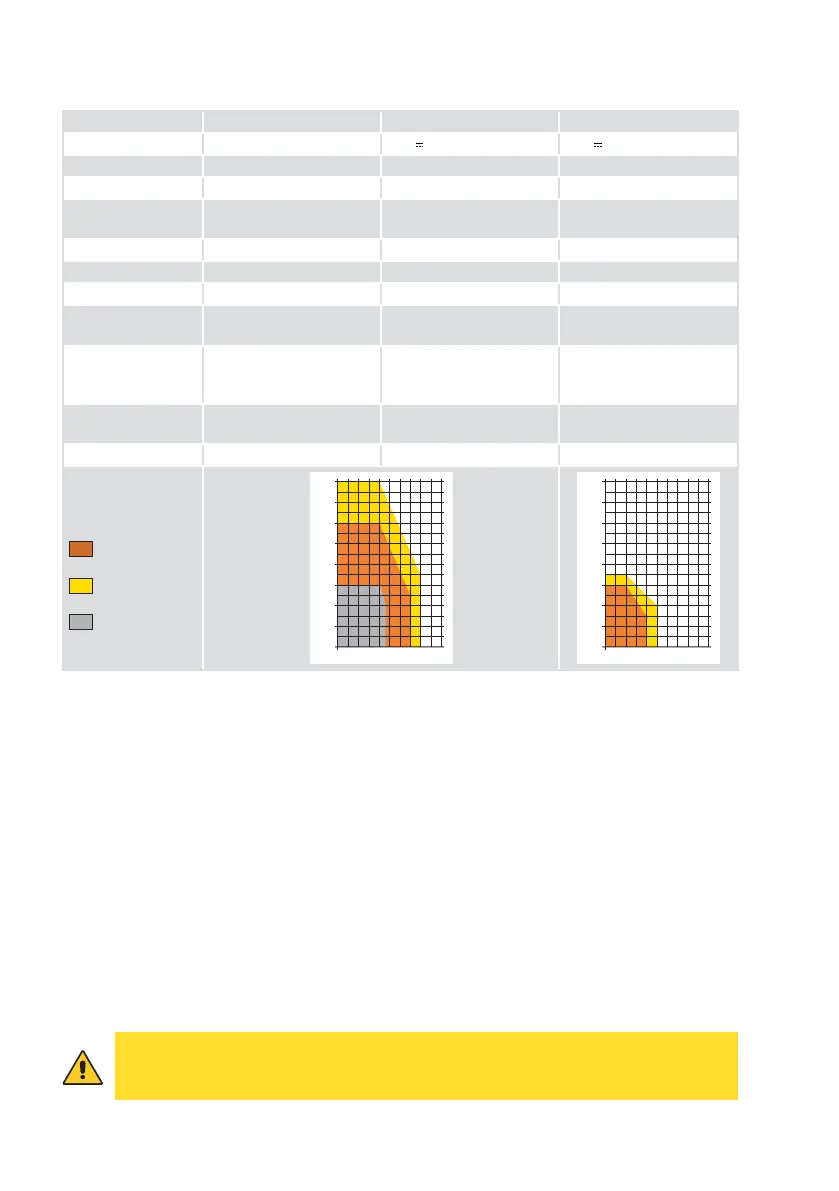

3. Technical data
CUBIC6 CUBI6H CUBIC6HV
Power supply 230 V~ 50 Hz 24 V
24 V
Absorption 1,5 A 12 A 12 A
Couple 340 Nm 340 Nm 220 Nm
Capacitor 10 µF - -
Opening time 18 s/90° 12÷25 s/90° 6÷13 s/90°
Max opening 110°-180° (see page 26) 110°-180° (see page 26) 110°-180° (see page 26)
Service class 3 - FREQUENT 4 - INTENSIVE 4 - INTENSIVE
Intermittence
S2 = 15 min
S3 = 25%
S2 = 30 min
S3 = 50%
S2 = 30 min
S3 = 50%
Temperature
min -20°C max +55°C
min -35°C max +55°C
(with NIO enabled)
min -20°C max +55°C
min -35°C max +55°C
(with NIO enabled)
min -20°C max +55°C
min -35°C max +55°C
with NIO enabled
Degree of
protection
IP67 IP67 IP67
Control panel LCA70 - LCA80 LCU40H-HJ LCU40H-HJ
Applications
m = leaf width
kg = leaf weight
CUBIC6L
CUBIC6LG
CUBIC6TC
12345m
kg
800
700
600
500
400
300
200
100
12345m
kg
800
700
600
500
400
300
200
100
kg
3.1 Operating instructions
Service class: 3 (minimum 30 cycles a day for 10 years or 60 cycles a day for 5 years).
Use: FREQUENT (For vehicle or pedestrian accesses to town houses or small condominiums with
frequent use).
Service class: 4 (minimum 100 cycles a day for 10 years or 200 cycles a day for 5 years)
Use: INTENSIVE (For vehicle or pedestrian accesses to large condominiums, industrial or
commercial complexes and parking lots with very frequent use).
- Performance characteristics are to be understood as referring to the recommended weight
(approx. 2/3 of maximum permissible weight). When used with the maximum permissible
weight a reduction in the above mentioned performance can be expected.
- Service class, running times, and the number of consecutive cycles are to be taken as merely
indicative Having been statistically determined under average operating conditions, and are
therefore not necessarily applicable to specifi c conditions of use.
- Each automatic entrance has variable elements such as: friction, balancing and environmental
factors, all of which may substantially alter the performance characteristics of the automatic
entrance or curtail its working life or parts thereof (including the automatic devices themselves).
The installer should adopt suitable safety conditions for each particular installation.
Incorrect drainage of the foundation box may damage the gearmotor and make the
warranty void. Follow the installation instructions and perform the necessary periodic
maintenance.
