IP1812EN
6. Installation
Unless otherwise specified, all measurements are expressed in millimetres (mm).
6.1 Preliminary checks
Check that the structure is sufficiently sturdy and that the hinge pivots are properly lubricated.
Provide an opening and closing stop.
NOTE: if the gate wing is more than 2.5 m wide, an electric lock should be installed.
6.2 Foundation case installation
Install the foundation case as indicated in the relevant manual.
Connect the drainage pipe to the foundation box. If there is no suitable drainage sys-
tem, suitable dispersion drainage must be provided. Comply with the IP67 rating of the
gearmotor.
Incorrect drainage of the foundation box may damage the gearmotor and make the
warranty void.
6.3 Lever mechanisms installation
Choose and install the lever mechanisms as indicated in the relevant manual.
6.4 Wing release installation
Choose and install the door release mechanisms as indicated in the relevant manual.
WARNING: to install the releases more easily, we advise you to position the gate at the centre of the
foundation casing and remove the lid, in such a way as to have enough space for fixing the screws.

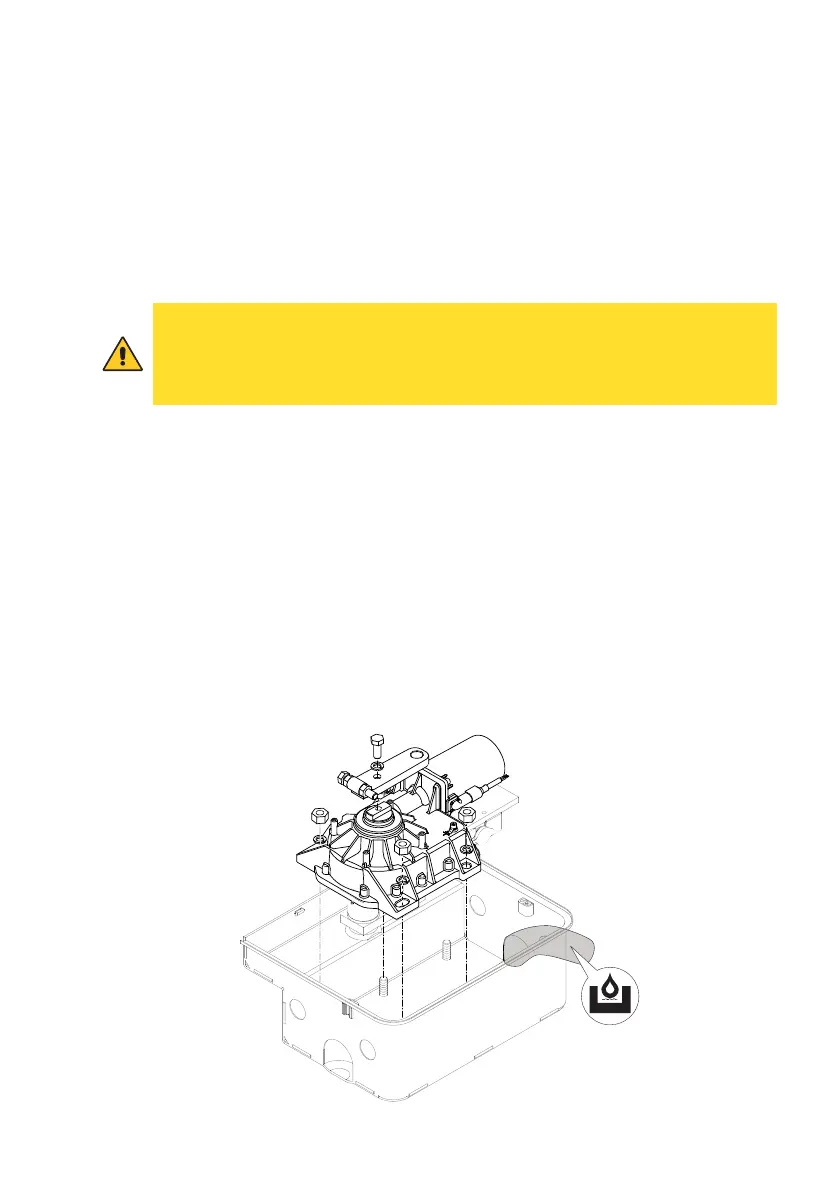

6.5 Geared motor installation
After installing the foundation casing, the respective lever and release mechanisms go before the
installation of the gear motor as shown in the figure.
NOTE: the figure shows the motor installed on the right door wing.
Carefully clean the bottom of the foundation casing from dirt or cement to guarantee an even
laying of the gearmotor.
