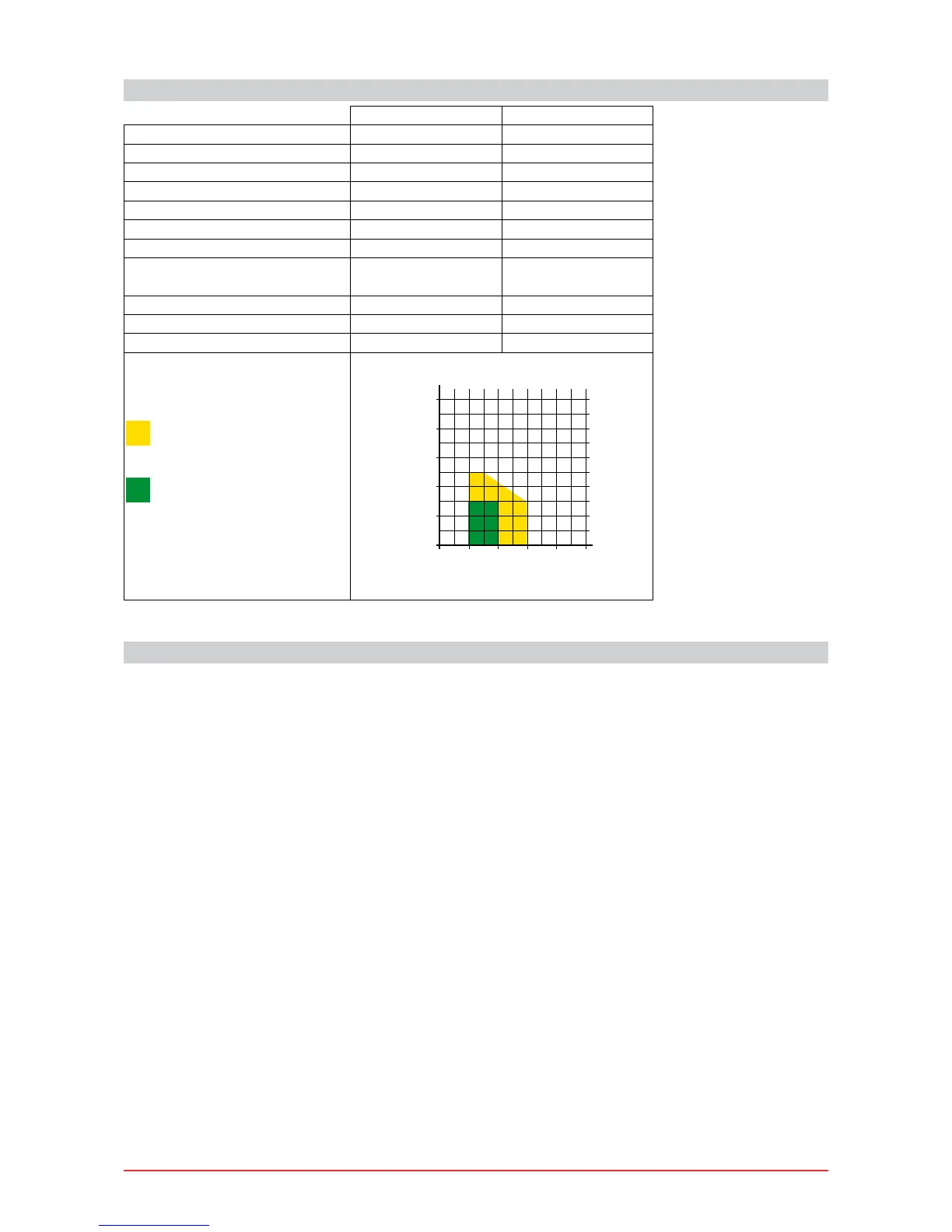

3. TECHNICAL DATA
OBBI3BH OBBI3BFCH
Power supply 24 V= 24 V=
Absorption 3 A 3 A
Thrust 1500 N 1500 N
Max run 350 mm 350 mm
Opening time 25 s / 90° 25 s / 90°
Limit switch - Magnetic limit switch
Service class 3 - FREQUENT 3 - FREQUENT
Intermittence
S2 = 30 min
S3 = 50%
S2 = 30 min
S3 = 50%
Temperature -20 °C/+55 °C -20 °C/+55 °C
Degree of protection IP54 IP54
Control panel E2HOB E2HOB
Applications
m = leaf width
kg = leaf weight
Recommended dimensions
Limit dimensions
500 kg
400 kg
300 kg
200 kg
100 kg
m12345
3.1 Operating instructions
Service life: 3 (minimum 10÷5 years of working life with 30÷60 cycles a day)
Applications: FREQUENT (For vehicle or pedestrian accesses to town houses or small condominiums with
frequent use).
- Performance characteristics are to be understood as referring to the recommended weight (approx. 2/3 of
maximum permissible weight). When used with the maximum permissible weight a reduction in the above
mentioned performance can be expected.
- Service class, running times, and the number of consecutive cycles are to be taken as merely indicative
Having been statistically determined under average operating conditions, and are therefore not necessarily
applicable to speci c conditions of use.
- Each automatic entrance has variable elements such as: friction, balancing and environmental factors,
all of which may substantially alter the performance characteristics of the automatic entrance or curtail
its working life or parts thereof (including the automatic devices themselves). The installer should adopt
suitable safety conditions for each particular installation.
