DITEC OBBI3BH - Electrical Connections

11
IP1639EN • 2012-07-31
6. ELECTRICAL CONNECTIONS
Before connecting the power supply, make sure the plate data correspond to that of the mains power supply.
An omnipolar disconnection switch with minimum contact gaps of 3 mm must be included in the mains supply.
Check that upstream of the electrical installation there is an adequate residual current circuit breaker and a
suitable overcurrent cutout.
The gearmotors OBB13BH-OBB13BFCH can be connected to the E2HOB control panel.

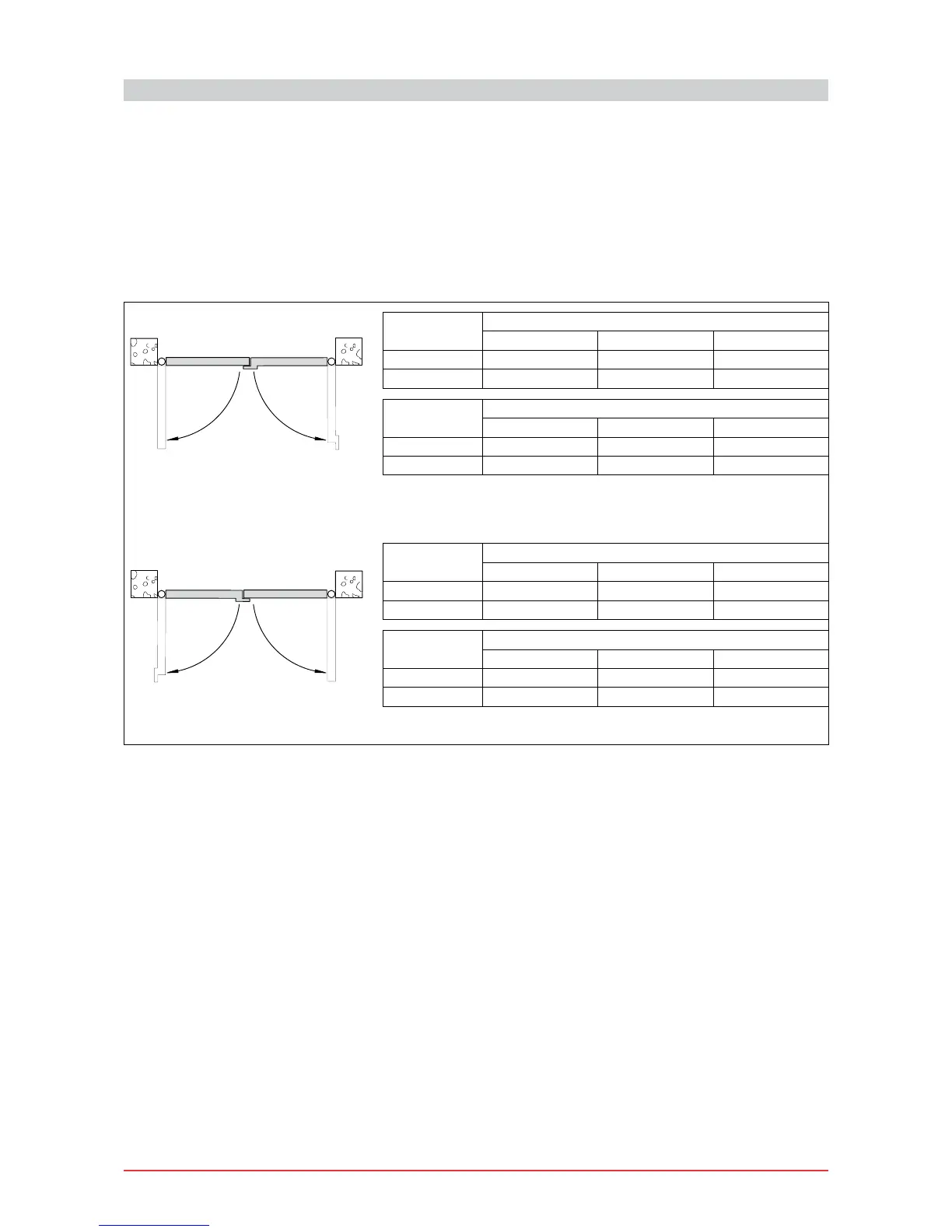

The electrical wiring and the start-up of the gearmotors OBBI3BH and OBBI3BFCH are shown in gure and in
the installation manuals of the E2H control panel.
M
o
t
o
r
2
M
o
t
o
r
1
M
o
t
o
r
1
M
o
t
o
r
2
Motor 1
E2HOB control panel terminal board
31 32 33
OBBI3BH Blue / Black
OBBI3BFCH Brown Green White
Motor 2
E2HOB control panel terminal board
34 35 36
OBBI3BH Black / Blue
OBBI3BFCH White Green Brown
Motor 1
E2HOB control panel terminal board
31 32 33
OBBI3BH Black / Blue
OBBI3BFCH White Green Brown
Motor 2
E2HOB control panel terminal board
34 35 36
OBBI3BH Blue / Black
OBBI3BFCH Brown Green White
