Dittmann TEN 250 - LCD Display Explanation

1.
2.
.
5.
6.
7.
8.
9.
10.
11.
3.
4
13

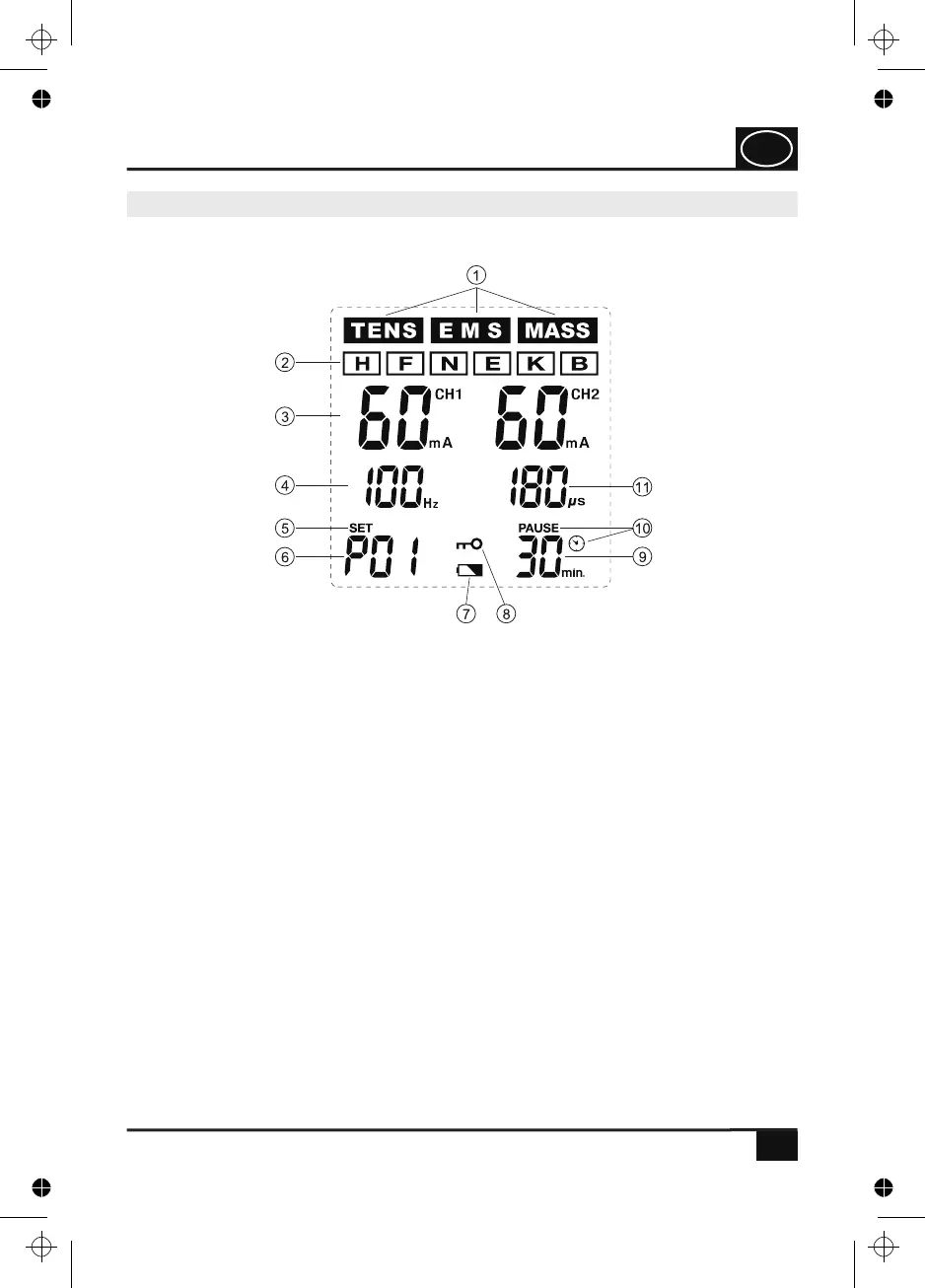

Information about the respective therapy mode: TENS / EMS / MASSAGE
Information about the part of the body to be treated:
H = Hand
F = Foot
N = Neck
E = Elbow joint
K = Knee joint
B = Back
Information about the output intensity in mA (Milliampere) for channel CH1 (left)
and for channel CH2 (right), e. g. 60 mA
Information about the pulse frequency in Hz, e.g. 100 Hz
SET: The device is in the setting mode.
Number of the application programme, e.g. programme P 01
Warning symbol for weak batteries: Change batteries
Information about the keylock
Application time in minutes, e.g. 30 minutes
Symbol “PAUSE” and clock symbol: Flashes if the pause mode has been activated
Information about the pulse duration in µs, e. g. 180 µs
8.0 LCD display
LCD DISPLAY
