1. Cyclone Assembly
a. Dust Collector Motor 5HP
i. Depending on the voltage used the running amperage differs on every machine
ii. Look for Maximum Amperage (Max. AMP.) on Serial Number Sticker located on left side
of the Control box. (e.g. For a 460V/3P/60Hz the maximum amperage is 6.1A)
iii. Hook an Amperage meter to the T1 in the control box. The running amperage readout
should be below the Maximum Amperage. (e.g. For a 460V/3P/60Hz the running
amperage is around 5-to-5.5A). If the amperage is higher, shut down the power and
invert the L1 with L2.

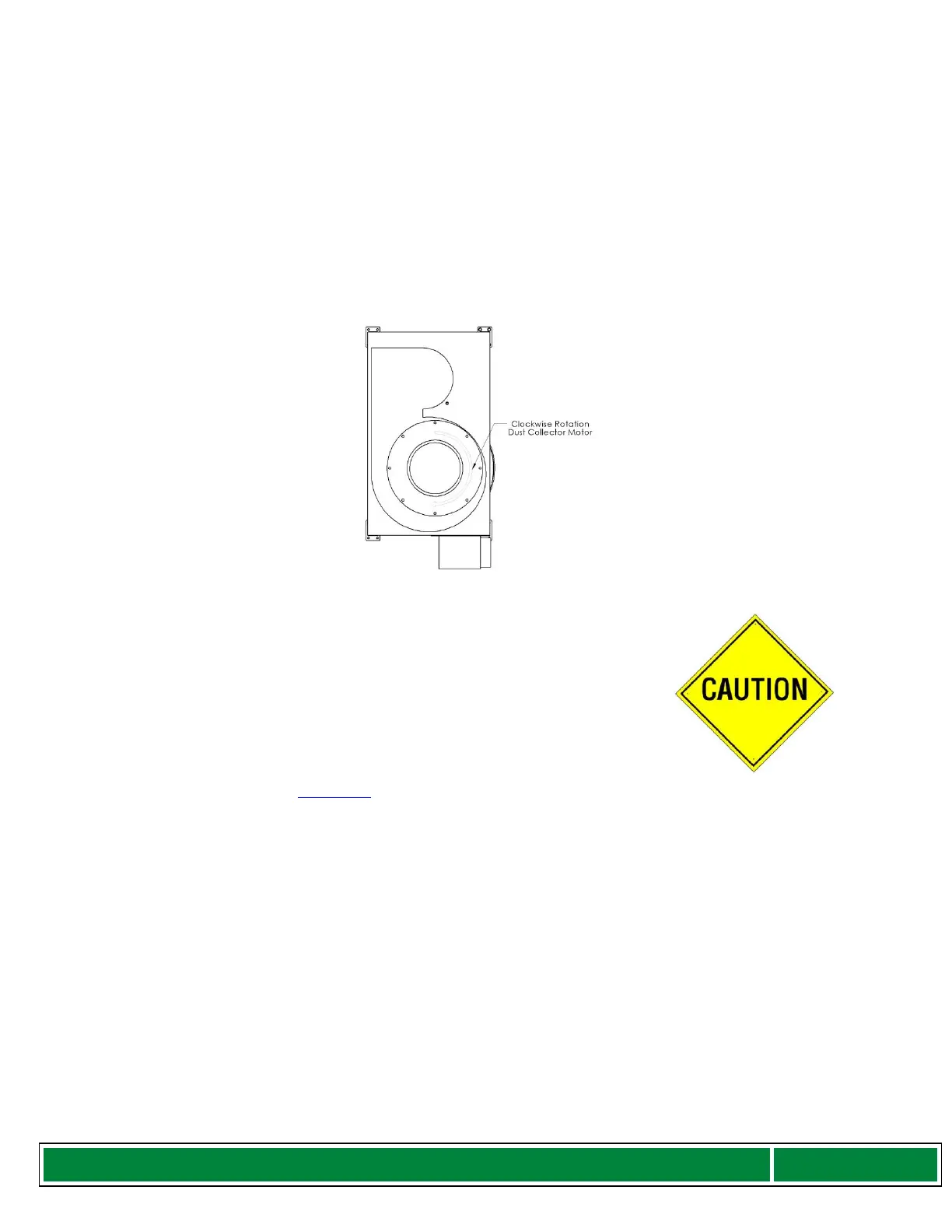

iv. Rotation of Motor is Clockwise from the top view.
b. Dust Collector Motor 5HP is not starting
i. Verify the Male and Female connector plug. Insure they are
well connected.
2. Mechanism check
a. During operation verify that the Amperage readout on the LCD is
not higher than 5Amps. The machine must be shut down and
maintenance clean up should be performed on cleaning mechanism
of the GFCM.
b. Maintenance Switch located under the Control Box. Cut air supply
to the GFCM and turn on the maintenance switch. Observe the
cleaning mechanism while it goes up and down. If an error appears
see section 3.5.3 Errors
