3.0 - Installation
3.1 - Upon Arrival
The Green Filter Cleaning Machine is shipped on a crated skid. The skid should be inspected for
any visible damage that may have occurred during shipment. Please advise the Transport
Company as soon as possible if the unit appears to have been damaged during shipping.
NOTE: Dust or debris in the machine or cyclone is due to factory testing. Each unit is tested
prior to shipping.
Always disconnect power supply before servicing the motor or working
with the unit for any reason. All electrical connections must be made
by a qualified electrician.
Use suitable floor anchors to securely bolt the machine to the floor.
Failure to anchor the machine may result in the machine tipping due to
the high center of gravity.
1. Bolt the four legs on the cyclone assembly.
2. Install the Cabinet Assembly and the Cyclone Assembly 12” apart. Using the supplied
flex hose, join the Cabinet to the Cyclone. Using hose clamps and silicone to seal the
interface between the flexible hose and the metal conduit.

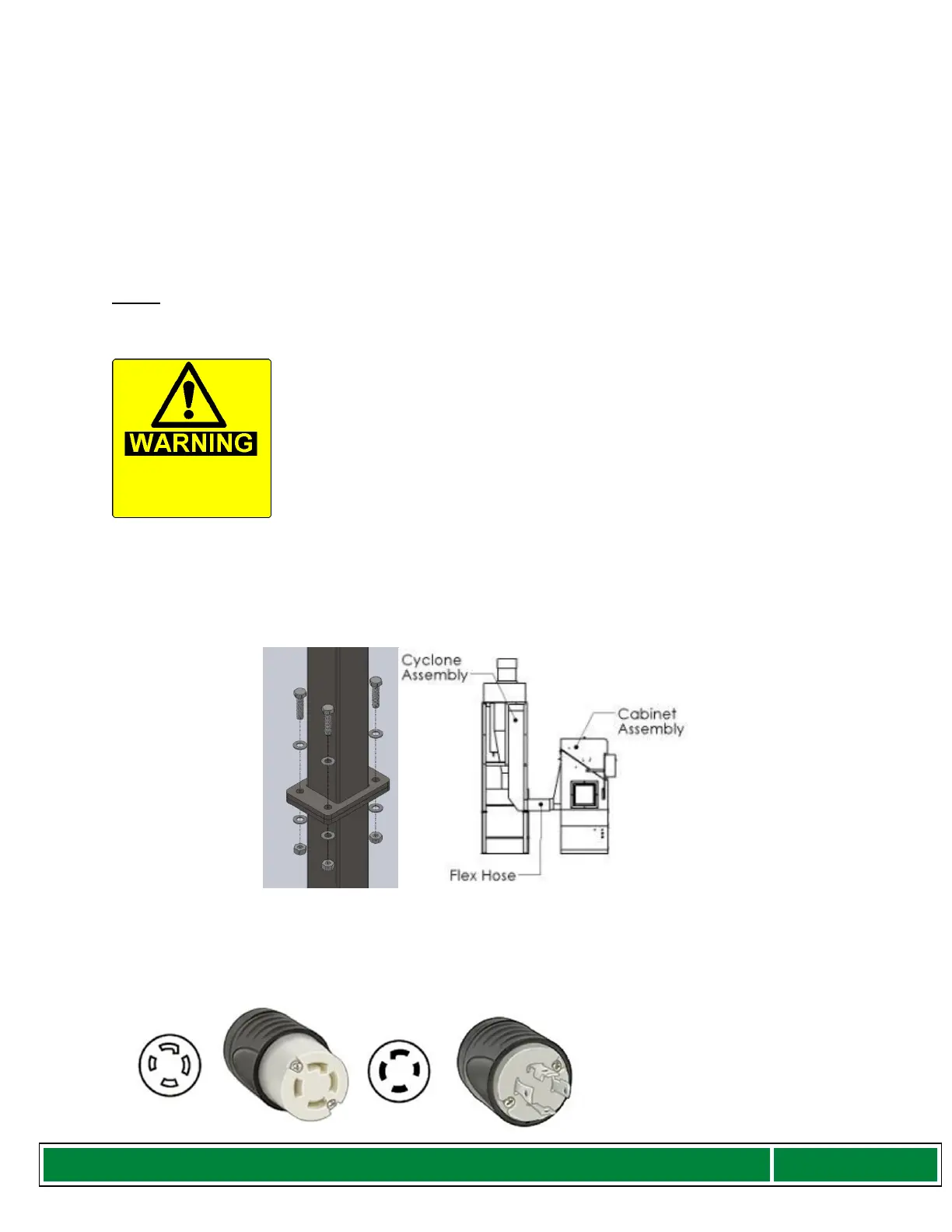

Figure 3: Installation of GFCM
3. Connect the Dust Collector Cyclone Motor to the Control Panel using the Female
connector and the Male Plug.
Figure 4: Female Connector & Male
Plug
To Next Page
