D I V E R S I T E C H O M - G F C M
3.4 - Operation
3.4.1 - Start Up
Before proceeding, one should note that all units have been tested at the factory before
shipping. The following steps are to insure proper functioning of the unit and nothing has been
damaged during transportation:
1. Check the pneumatic connections on the back of the unit.
2. Connect the air hose and make sure that the air fittings don’t leak air.
3. Check that nothing is jammed up against the mechanism.
PLEASE ENSURE THAT CYCLONE MOTOR IS PLUGGED INTO THE CONTROL BOX.

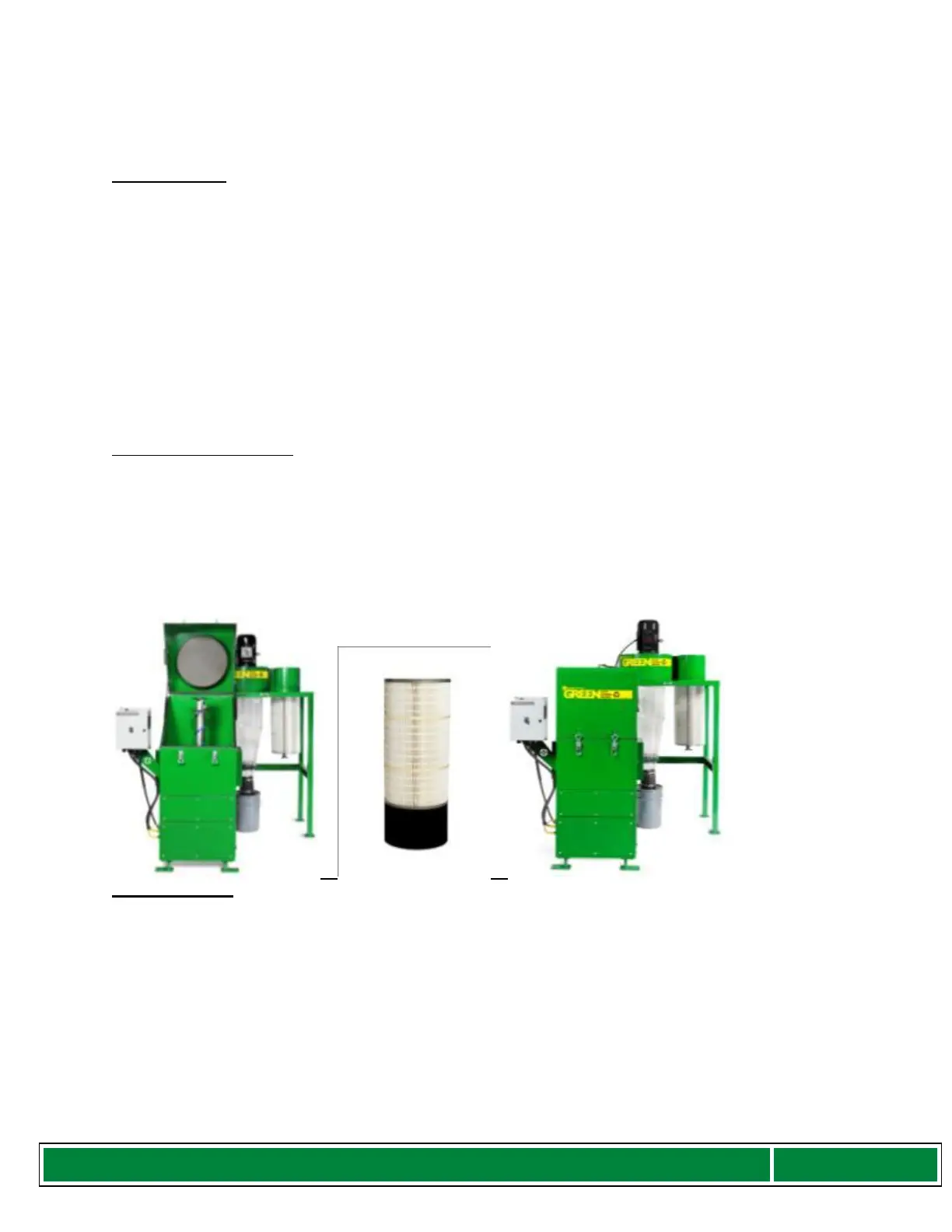

3.4.2 - Loading the filter
I. Measure the height of filter in inches. (Measuring tape on the side)
II. Refer to Filter Spacer Chart to select spacers required.
Step 1: Open the top of the Cabinet by releasing both latches.
Step 2: Install required spacers (refer to Filter Spacer Chart)
Step 3: Load the filter, then close and secure the latches
Important Note:
DO NOT OPEN LID DURING OPERATION. The cabinet is fitted with a compression
mechanism that seals the top of the filter. If the filter is not sealed properly the
machine will not operate. Opening the cabinet should only be done after cycle is
completed.
The unit is equipped with a high efficiency cyclone. Any air leaks in the suction or
exhaust line (connection to the barrel) may result in some debris accumulating in the
exhaust filter. Periodically check the exhaust filter for debris, replace if necessary. DO
NOT PLACE THE EXHAUST FILTER IN THE MACHINE.
To Next Page
