Page 20 of 72
Sold Out Spring
901,700,74x.x1
Sold-Out Switch Assy. Snap In
804,100,68x.x1 - Single Price
804,100,75x.x1 - SIID
(Insulator and Switch are one piece)

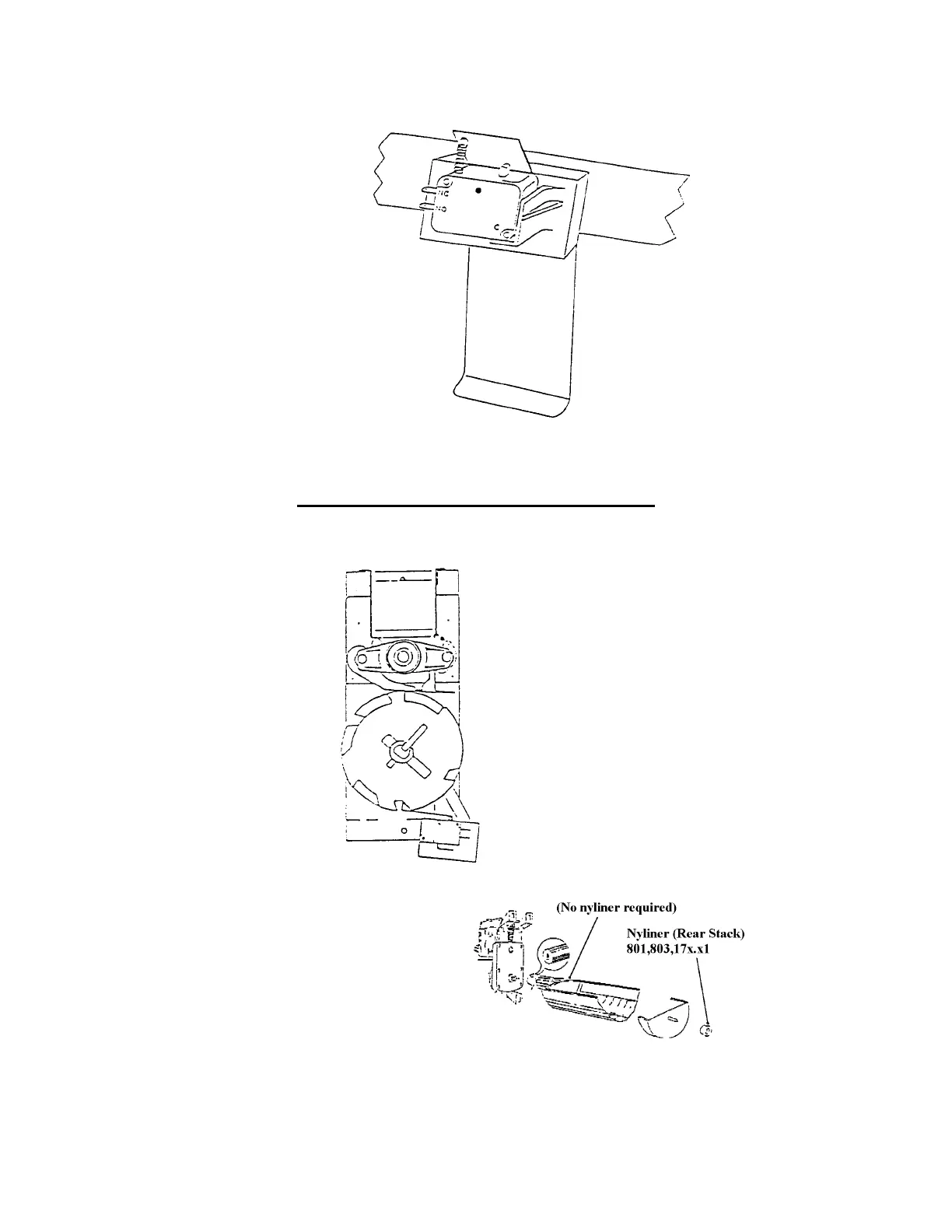

VEND MOTOR NARROW COLUMN
Mounted on the Vender with the Vend Motor Switch on the underside (See Fig. 1). The shaft of the Vend Motor
slides into a slot in the Vend Rotor (See Fig. 2).
Vend Motor Switch
804,100,69x.x1 - Single Price
804,100,73x.x1 - SIID
Vend Rotor
801,201,56x.x1
Sold-Out Paddle
Wide and Narrow
432,070,19x.x3 - Standard
609,070,19x.x3 - Special use only
Vend Motor - Narrow Column
609,070,80x.x3 - Single Price
609,070,90x.x3 - SIID
Fig. 1
Fig. 2
