1 Assembly and Configuration
For hardware installation, software configuration and compass calibration please adhere to the following
sections.
1.1 Hardware Installation and Connection
(1) Please adhere to “1.1.1 Mixer Type Supported” to choose a mixer type and assemble your aircraft.
(2) Please adhere to both “1.1.2 Hardware Connection Diagram” and “1.1.3 Important for Assembly and
Connection” to install and connect all units on your aircraft.

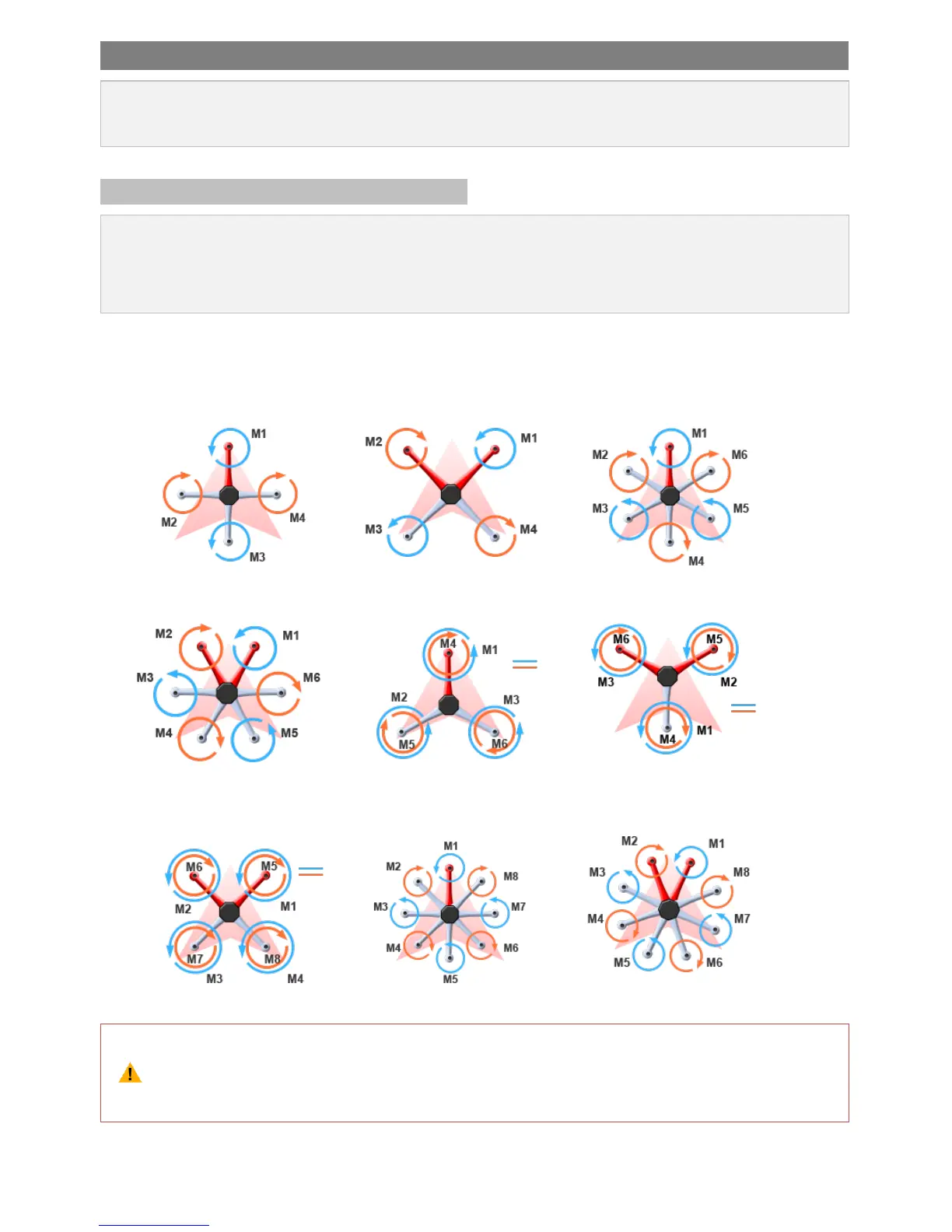

1.1.1 Mixer Type Supported
Following Mixer Types are supported.
Quad-rotor X Hexa-rotor I
Hexa-rotor V Hexa-rotor Y
Quad-rotor I
Hexa-rotor IY
Octo-rotor IOcto-rotor X Octo-rotor V
The direction of the arrow in diagram indicates the rotation direction of the motor/propeller.
For coaxial propellers: Blue propeller is at TOP; Red propeller is at Bottom. Otherwise all propellers
are at top.
