FAQ
Use with other DJI products
The A2 can be used with other DJI products such as iOSD Mark II, Z15 series gimbals, S800 EVO and 2.4G
Data Link(iPAD Ground Station function), H3-2D, etc. Users should connect them to the correct CAN-Bus port.
CAN1: iOSD Mark II, Z15 series.
CAN2: 2.4G Data Link (iPAD Ground Station function), H3-2D.

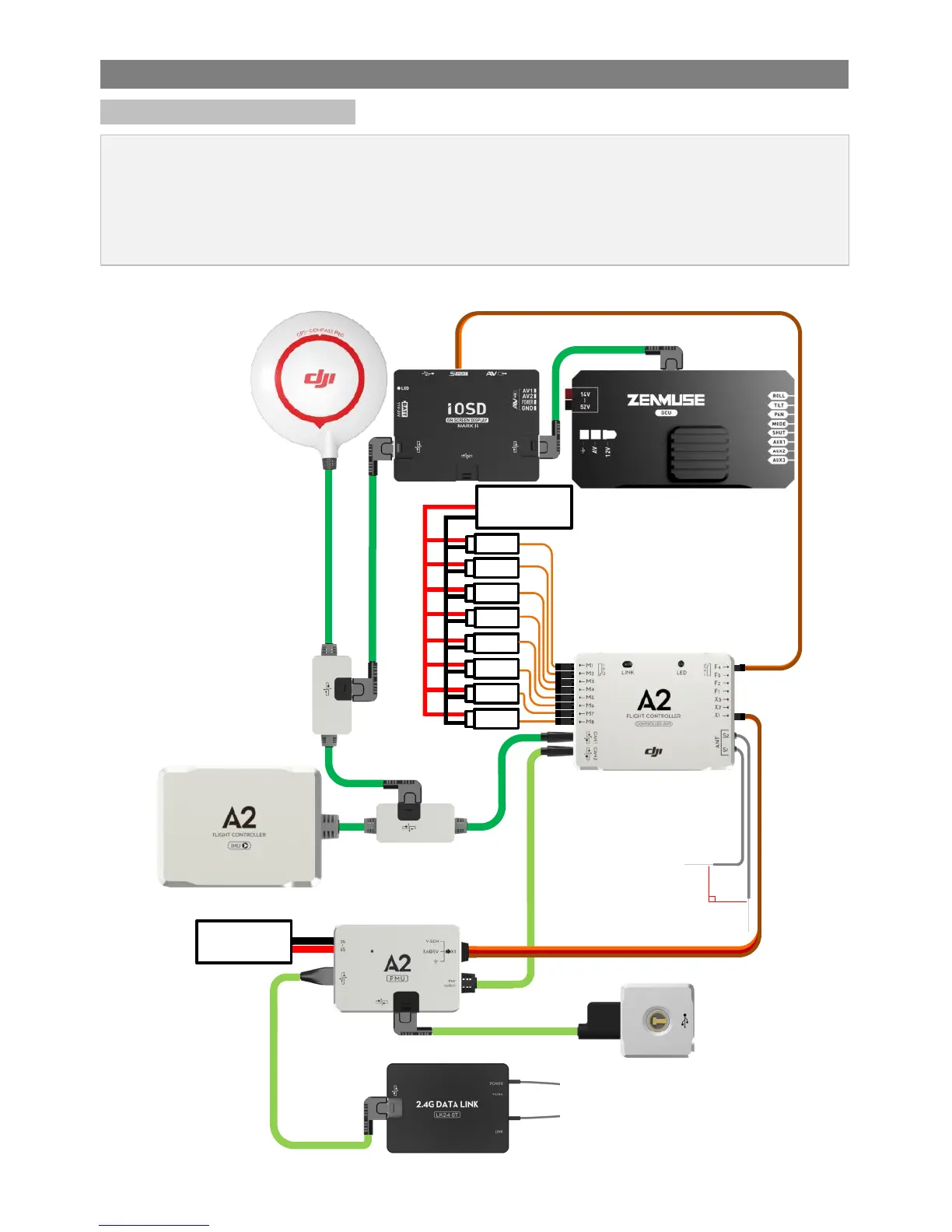

The following 2.4G Data Link connection diagram is the connection for your reference.
90
o
ESC 1#
ESC 2#
ESC 3#
ESC 4#
ESC 5#
ESC 6#
ESC 7#
ESC 8#
2S~6S
Battery
2S~6S
Battery
