(I) Flight Mission Setting

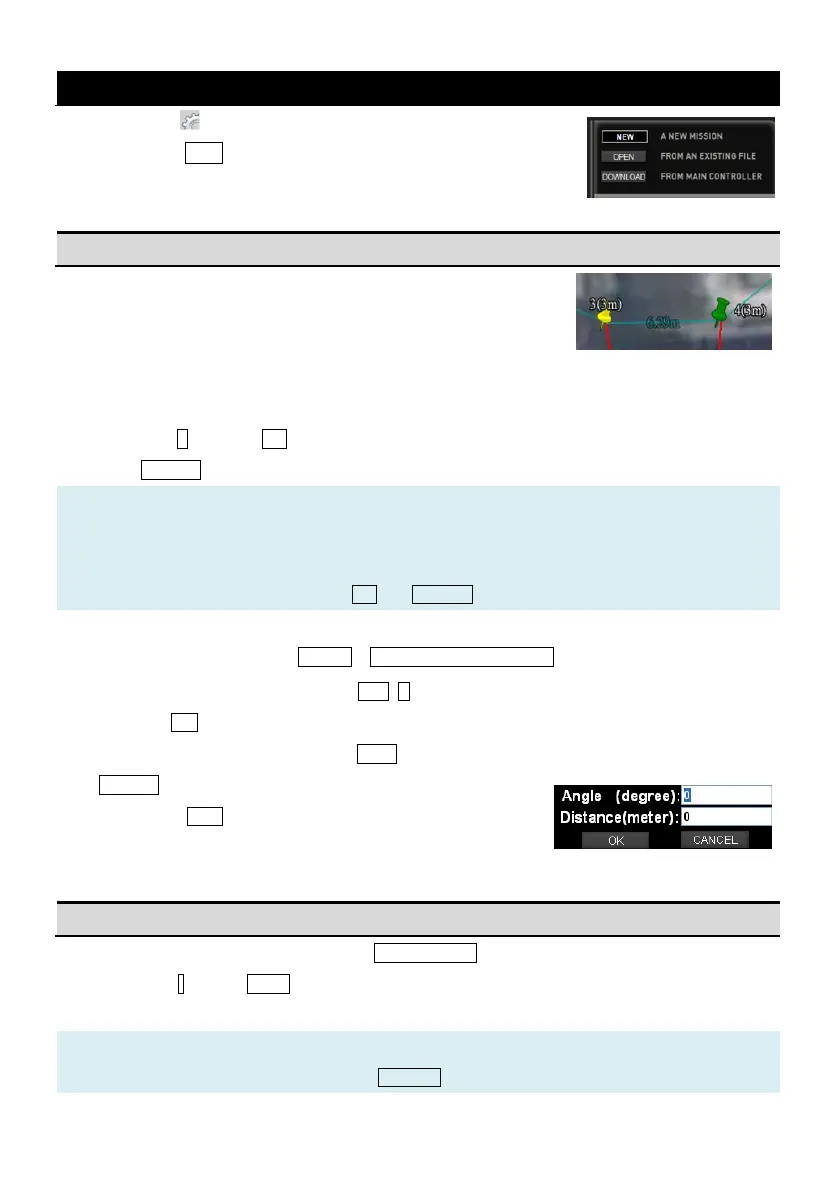

STEP1: Click to open the mission editor, see fig.①.
STEP2: Click New to edit a new mission.
STEP3: Add waypoints.
There are two ways on adding waypoints. A maximum of 200 waypoints can
be added in the ACE waypoint mode, and a maximum of 50 waypoints can
be added in the WKM waypoint mode. If selected, the waypoint will change
to be green, see fig.②.
(1)Add Point by Point
STEP1: Click +，or press Ctrl。
STEP2: Left click on the 3D-Map where the locations you want to add a way point.
Tips:
Repeat above procedure if you wish to add more new waypoints. The initial waypoint index will be 0,
incremented by 1 each new way point is added. If you want to insert a point before another point, you can
move the mouse over the point then press Ctrl with Left click.
(2)Using Relative Coordinates Editor
After the first waypoint, you can use Toolbox ->Relative Coordinates Editor to add new points.
STEP1: Select one waypoint, then press Shift+P you will see the input window shown as fig.③.
STEP2: Use Tab to switch between these two input frames.
STEP3: Input the relative coordinates: Angle is the relative angle to the north of current waypoint;
Distance is the relative distance to the current waypoint.
STEP4: Press Enter, then you will see a new waypoint after the
current waypoint.
STEP1: Select waypoint either in map or in Editing Mission Menu, and the selected waypoint is in green;
STEP2: Click - or press delete to delete all the waypoints added.
Tips:
Repeat above procedure to delete more. Click CANCLE to delete all the way points added.
