4.3 F Channel Controller
Use Ground Station to customize the MC‟s F channel control, so that you can control the external payloads
such as camera and gimbal.

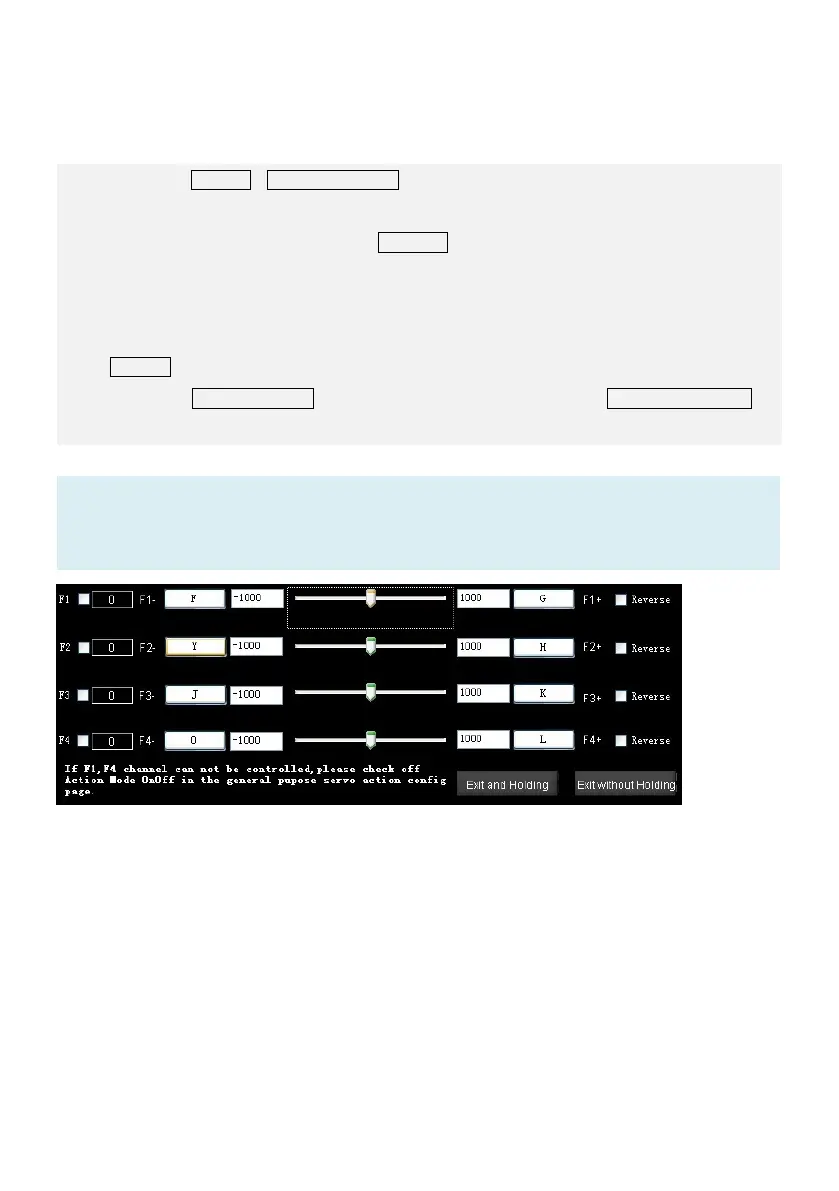

STEP1: Click ToolBoxF_ChannelControl, he setup window shows as the follow figure.
STEP2: Click the small box beside channel name to choose the channels will be used.
STEP3: Click the button with letter, then press key shown and you need to choose a new control
key on the keyboard.
STEP4: Setup the channel measuring range in the number boxes.
STEP5: Usually, the slide left endpoint represents the minimum value. However you can tick the
Reverse box to reverse the measuring range.
STEP6: Click Exit and Holding to exit and keep the range value; Click Exit without Holding to
exit and forget the range value.
Tips:
ACE supports F1, F2, F3 and F4;
WKM supports F1 and F2 only。
