Used with the Zenmuse X5
DJI Focus is fully compatible with the Zenmuse X5 series gimbal and camera. No calibration is
required when using the Focus with the Zenmuse X5 camera.

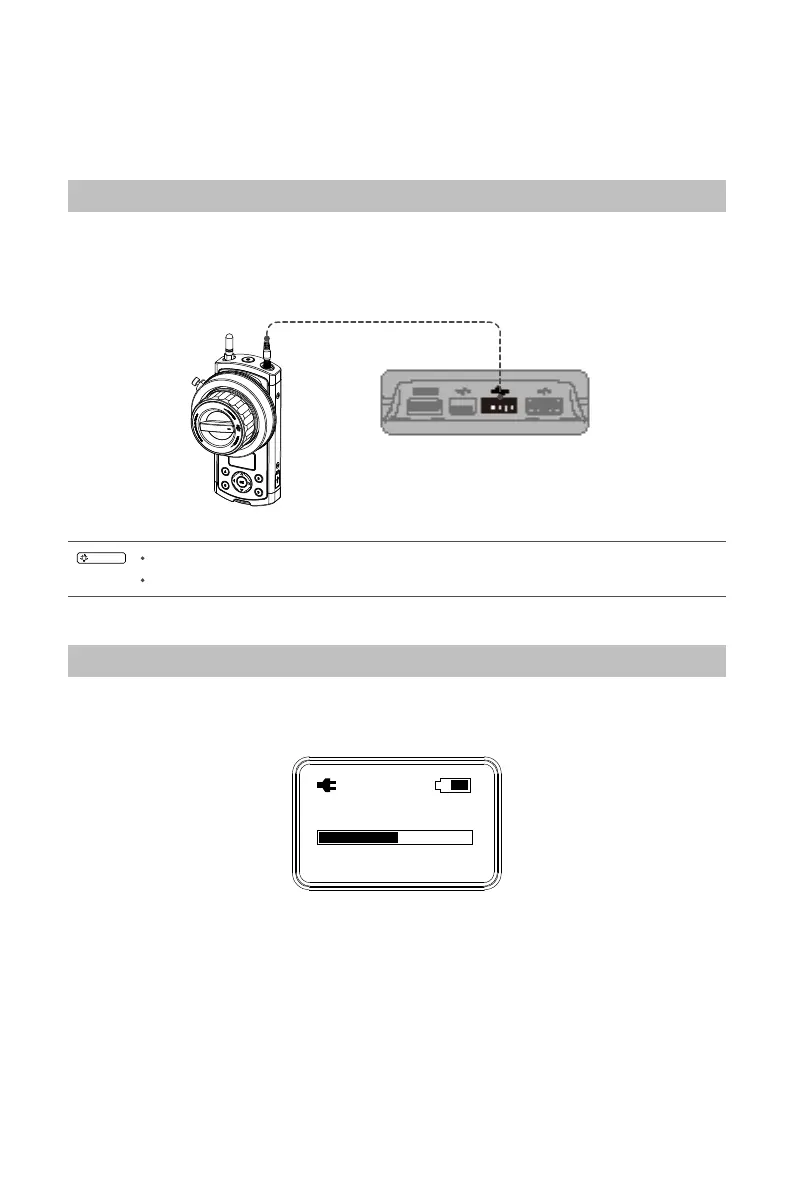

Connection
To allow communication between the two devices, connect the communication port on the
Focus remote controller to the CAN Bus port on the Inspire 1 remote controller using the
dedicated CAN Bus cable.
TIPS
Ensure that the Zenmuse X5 camera is set in AF mode.
You can purchase the dedicated CAN Bus cable on the DJI Store.
Settings
The Focus remote controller will display the following information when it is connected to the
Inspire 1 Pro or Raw system.
Zenmuse X5 Settings
Direction: The motor’s direction of rotation – normal or reversed.
Default: Restore the default motor parameters.
Settings
Power Off: Idle time before the remote controller auto-powers off-10 min, 30 min, 60 min or never.
Endpoints: The upper and lower travel limits of the focus wheel. Turn the focus wheel to the
desired upper travel limit and select Set Point 1. Then, turn the focus wheel to the desired lower
