dji Focus - Remote Controller; Remote Controller Components

©
2015 DJI. All Rights Reserved.
7

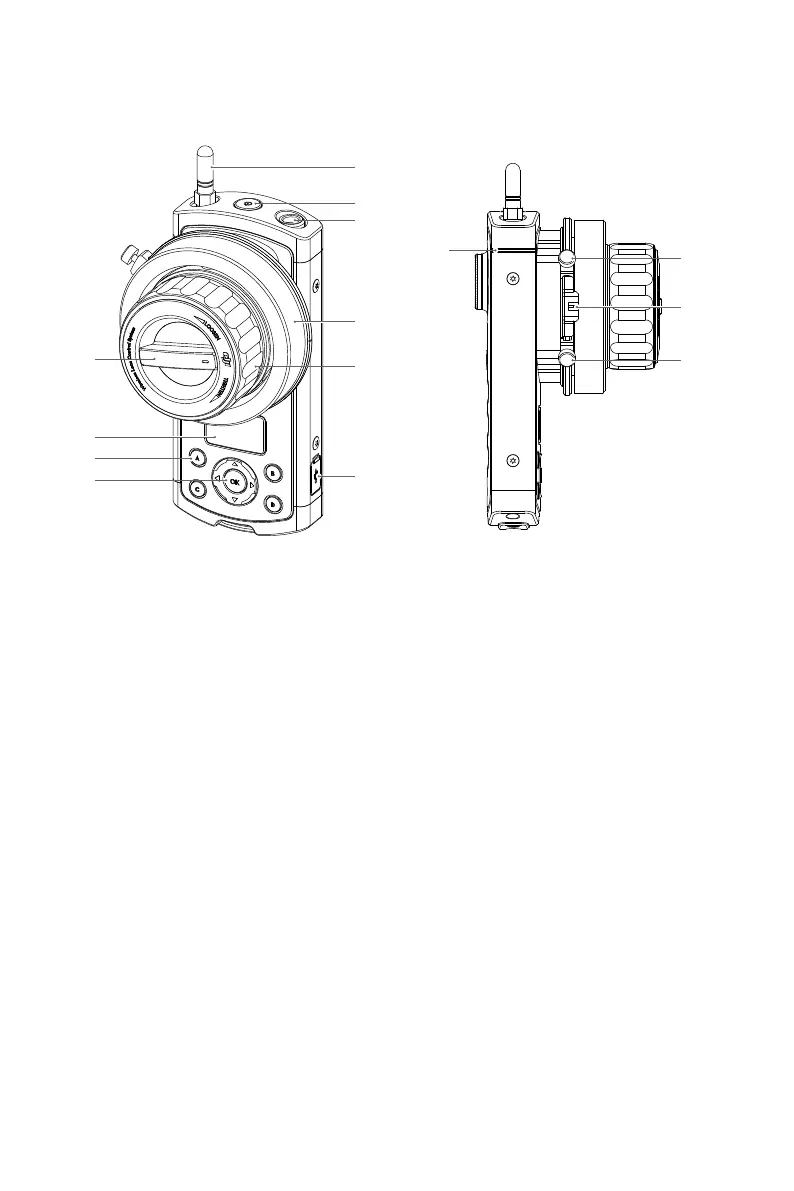

Remote Controller
[1] Antenna
Transmits at 2.4 GHz.
[2] Power Button
Press and hold for 2 seconds to power
on/off the remote controller.
[3] Communication Port
Allows the motor to communicate with the
remote controller.
Allows the motor to be upgraded.
[4] Marking Ring
Used to provide marking scale.
[5] Focus Wheel
Used to adjust the lens of your camera.
[6] Micro USB Port
Used to charge or update the remote
controller.
[7] Navigation Buttons
Allows you to navigate through menu items.
[8] Quick Focus Buttons
Assign focus points to buttons A, B, C
and D for quick access.
[9] OLED Screen
Displays the menu, system status and
battery level.
[10] Stiffness Control
Adjusts the stiffness of the focus wheel.
[11] System Status Indicator
Indicates the system status of the remote
controller.
[12] [13] Hard Stop Screws
Adjustable hard stops to limit the travel
range of the focus wheel.
[14] Backlight
Illuminates the marking ring from behind.
[1]
[2]
[3]
[5]
[4]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[14]
[13]
