XR150/XR550 Series Installation Guide Digital Monitoring Products
19
INSTALLATION
LX-Bus
TM
/AX-Bus
TM
Expansion
15.1 LX-Bus/AX-Bus Headers
XR Series control panels are capable of providing zone, output, and access control expansion by connecting hardware
modules to the AX/LX-Bus headers on the control panel. XR150 panels are manufactured with one LX-Bus header
labeled LX500. AX-Bus operation does not apply to XR150 panels. XR550 panels are manufactured with ve AX/LX-Bus
headers labeled LX500-LX900. Application determines if a header works in AX-Bus or LX-Bus operation.
LX-Bus (XR150/XR550)
LX-Bus operation is compatible with hardwired zone and output
expanders. Each LX-Bus represents 100 addresses. An LX-Bus address
provides one zone and one output of expansion.
• LX500, provides zones/outputs 500-599 (XR150, XR550).
• LX600, provides zones/outputs 600-699 (XR550 only).
• LX700, provides zones/outputs 700-799 (XR550 only).
• LX800, provides zones/outputs 800-899 (XR550 only).
• LX900, provides zones/outputs 900-999 (XR550 only).
AX-Bus (XR550 V111 or higher):
AX-Bus operation is compatible only with XR550 control panels and
DMP Model 734 Wiegand Interface door access modules. The 734
provides one Form-C relay output and four expansion zones. AX-Bus operation is not compatible with addressable
zone and output expanders. Each AX-Bus represents predetermined addresses for 734 operation: 16 addresses for 734
door relay outputs, and 64 addresses for 734 expansion zones.
AX-Bus Available Addresses and 734 Zone Numbers
734
Address
AX500 AX600 AX700 AX800 AX900
Door Zones Door Zones Door Zones Door Zones Door Zones
1 501 501-504 601 601-604 701 701-704 801 801-804 901 901-904
2 505 505-508 605 605-608 705 705-708 805 805-808 905 905-908
3 509 509-512 609 609-612 709 709-712 809 809-812 909 909-512
4 513 513-516 613 613-616 713 713-716 813 813-816 913 913-916
5 517 517-520 617 617-620 717 717-720 817 817-820 917 917-920
6 521 521-524 621 621-624 721 721-724 821 821-824 921 921-924
7 525 525-528 625 625-628 725 725-728 825 825-828 925 925-928
8 529 529-532 629 629-632 729 729-732 829 829-832 929 929-932
9 533 533-536 633 633-636 733 733-736 833 833-836 933 933-936
10 537 537-540 637 637-640 737 737-740 837 837-840 937 937-940
11 541 541-544 641 641-644 741 741-744 841 841-844 941 941-944
12 545 545-548 645 645-648 745 745-748 845 845-848 945 945-948
13 549 549-552 649 649-652 749 749-752 849 849-852 949 949-952
14 553 553-556 653 653-656 753 753-756 853 853-856 953 953-956
15 557 557-560 657 657-660 757 757-760 857 857-860 957 957-960
16 561 561-564 661 661-664 761 761-764 861 861-864 961 961-964
15.2 Device Addressing
Addressable expanders and door controllers identify themselves to the control panel by their programmed address,
which allows the panel to uniquely identify devices. An addressable device’s address determines which numbers
the zones, outputs and door controllers will be assigned in programming. Refer to the device’s installation guide for
addressing information.

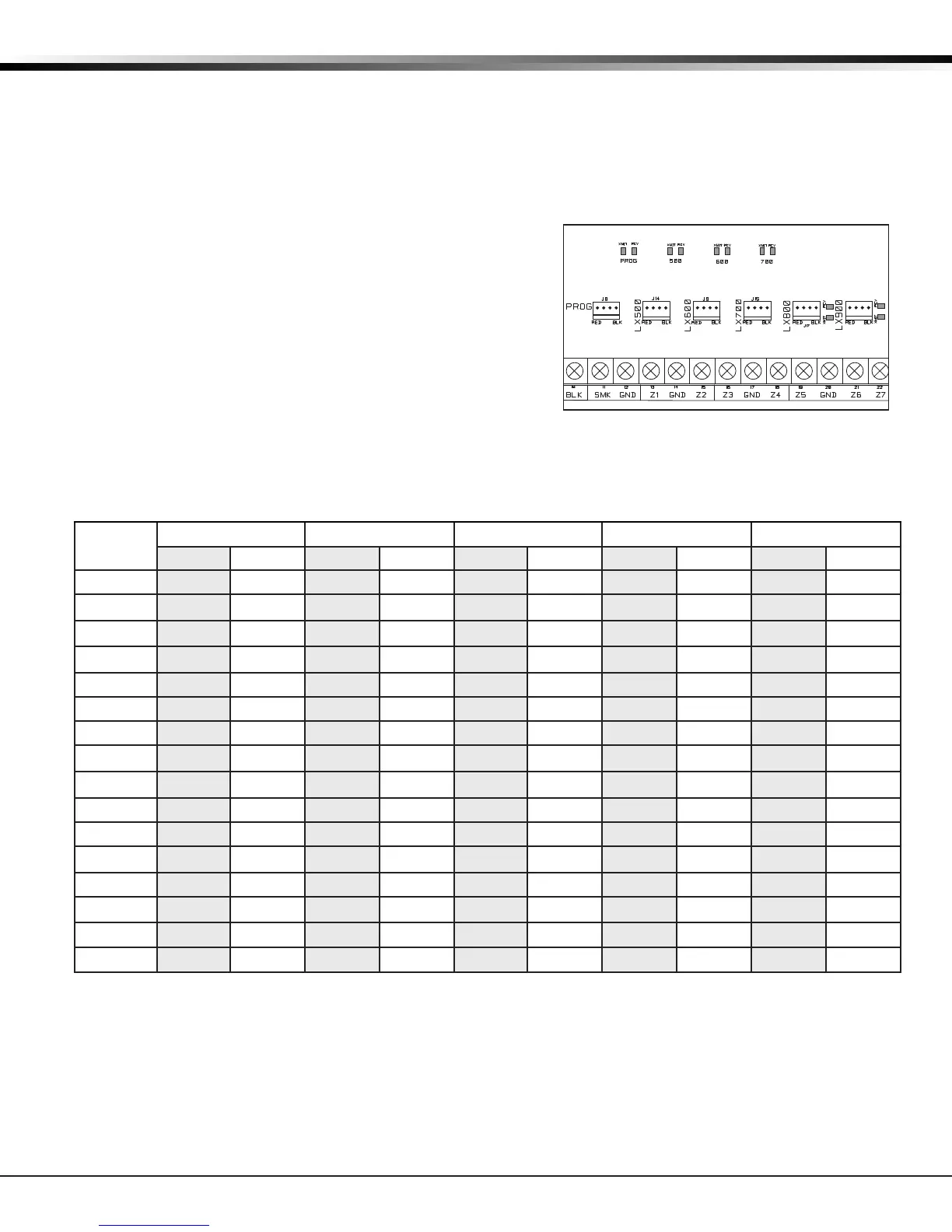

Figure 9: LX-Bus Headers and LEDs
