Operation Manual
VacuDAP 2002
2002BA01e.DOC / 22.07.2004 10 of 22
3.2.2 Display units, connections and control elements
Display units can be supplied with different housings; see Table 2.
The following connections are found on the rear sides of the units:
• Input: voltage supply (plug-in power pack)
• Input (4-pole socket): measuring signal from the detector electronics
• Output (5-pole socket): serial interface RS-232 (for printer or PC)
The measured values (in mGy*cm²) are displayed by a high-intensity, 8-digit LED display. The readout
resolution is 1 mGy*cm.
The measuring system is operated by using the two keys
Print
and
Reset
on the keypad.

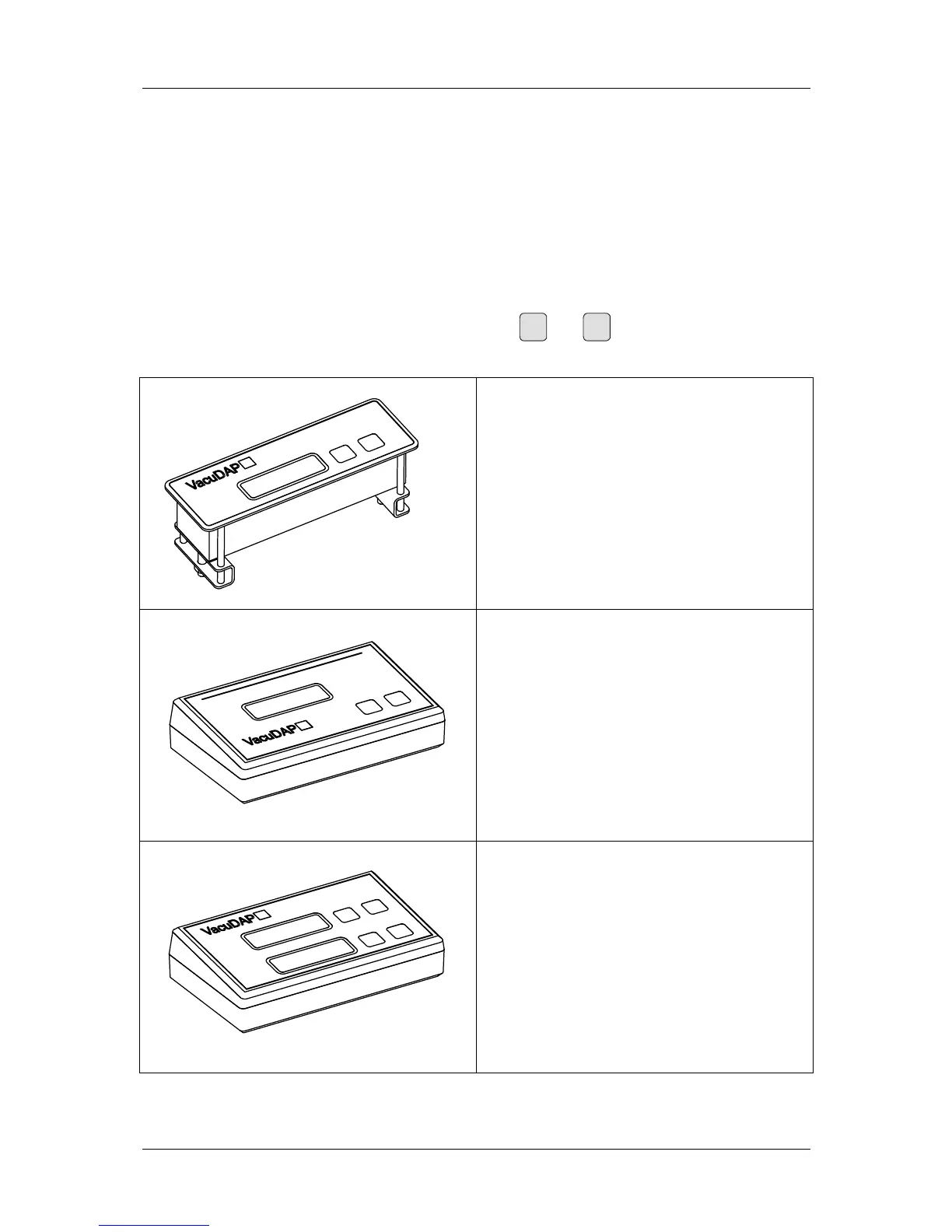

Built-in unit 952 00 02
• for incorporation in operator consoles
• sturdy, compact housing
• RS-232 for printer or PC
Table-top unit 953 00 01
• standard unit
• compact housing
• RS-232 for printer or PC
• alternatively, as wall-mounted unit (953 00 02)
Table-top unit 956 00 01
• for 2-channel measuring system
• simultaneous, independent measurements
• compact housing
• common RS-232 for printer or PC
Table 2: Display units
