Locating The LATCH Anchorages
The lower anchorages are round bars that
are found at the rear of the seat cushion
where it meets the seatback. They are just
visible when you lean into the rear seat to
install the child restraint. You will easily feel them if you
run your finger along the gap between the seatback
and seat cushion.
Locating The Upper Tether Anchorages
Five Passenger Vehicles: 2nd Row Upper Tether
Anchorage Locations
There are tether strap anchorages behind
each rear seating position located on the
back of the seat. To access them, pull the
carpeted floor panel away from the seat
back, this will expose the top tether strap anchorages.
Six And Seven Passenger Vehicles: 2nd Row Upper
Tether Anchorage Locations
There are tether strap anchorages behind each rear
seating position located on the back of the seat.

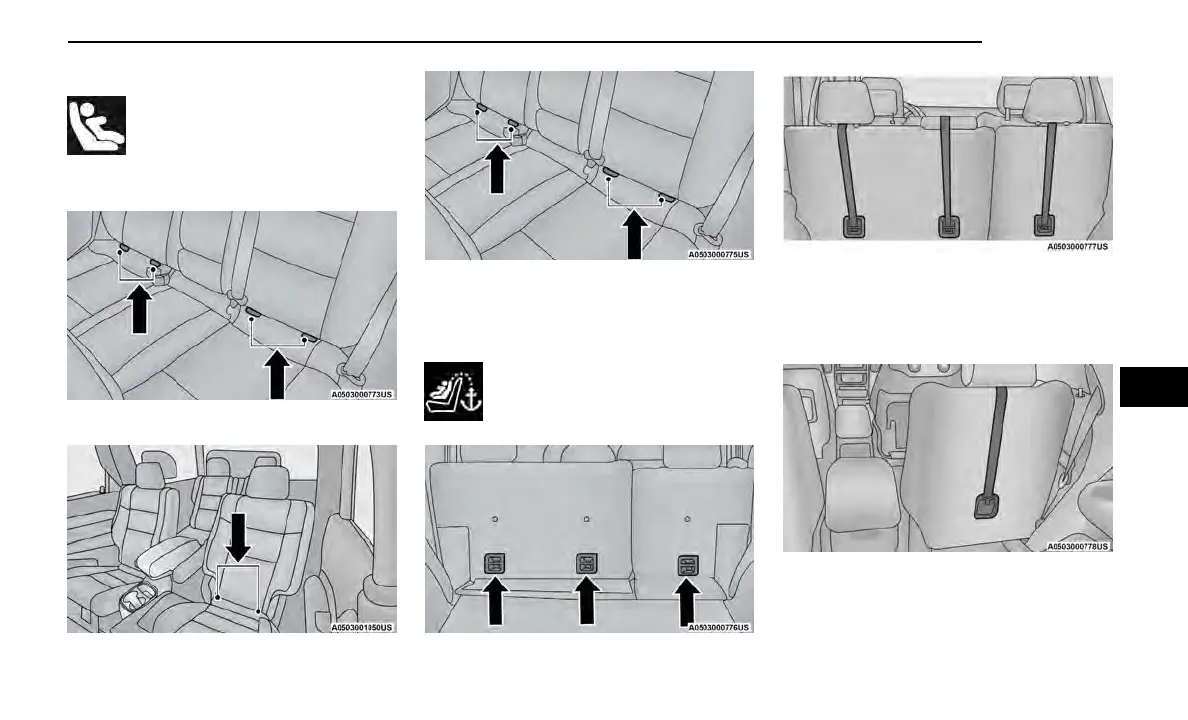

Five Passenger Rear Seat Lower Anchorages
Six Passenger Second Row Lower Anchorages
Seven Passenger Second Row Lower Anchorages
Pulling Down The Carpet Floor Panel To Access Top Tether
Strap Anchorage (Five Passenger)
Five Passenger Top Tether Strap Mounting
Six Passenger Top Tether Strap Mounting (Captain's
Chair)
SAFETY 227
6
