NOTE:
This system is not appropriate for conditions where
AWD LOW is recommended
page 133.
ELECTRONICALLY SHIFTED
TRANSFER CASE — IF EQUIPPED
This is an electronically shifted transfer case and it is
operated by the AWD control switch, which is located on
the center console.
This electronically shifted transfer case provides three
positions:
•
All-wheel drive auto range (AWD AUTO)
•
All-wheel drive low range (AWD LOW)
•
N (Neutral)
When additional traction is required, the transfer case
AWD LOW position can be used to lock the front and
rear driveshafts together forcing the front and rear
wheels to rotate at the same speed. This is accom-
plished by pushing the AWD LOW switch
page 97.
The AWD LOW position is designed for loose, slippery
road surfaces only. Driving in the AWD LOW position on
dry, hard surfaced roads may cause increased tire wear
and damage to the driveline components.
Transfer Case Position Indicator
Messages
The Transfer Case Position Indicator message (AWD
LOW) is located in the instrument cluster and indicate
the current and desired transfer case selection
page 72. When you select a different transfer case
position, the position indicator lights will do the
following:
If All Shift Conditions Are Met:
1. The current position indicator light will turn off.
2. The selected position indicator light will flash until
the transfer case completes the shift.
3. When the shift is complete, the indicator light for the
selected position will stop flashing and remain on.
If shift conditions are not met, one or more of the fol-
lowing events may occur:
1. The indicator light for the current position will
remain on.
2. The newly selected position indicator light will con-
tinue to flash.
3. The transfer case will not shift.
NOTE:
Before retrying a selection, make certain that all the
necessary requirements for selecting a new transfer
case position have been met
page 97.
The “SERV AWD” Warning Light monitors the electronic
shift all-wheel drive system. If this light remains on after
engine start-up or illuminates during driving, it means
that the all-wheel drive system is not functioning prop-
erly and that service is required.
WARNING!
Always engage the parking brake when powering
down the vehicle if the “SERV AWD” Warning Light is
illuminated. Not engaging the parking brake may
allow the vehicle to roll which may cause personal
injury.
NOTE:
Do not attempt to make a shift while only the front or
rear wheels are spinning. This could cause damage to
driveline components.
When operating your vehicle in AWD LOW, the engine
speed is approximately three times that of the AWD
AUTO position at a given road speed. Take care not to
overspeed the engine and do not exceed 25 mph
(40 km/h).
Proper operation of all-wheel drive vehicles depends on
tires of equal size, type and circumference on each
wheel. Any difference in tire size can cause damage to
the transfer case.
Because all-wheel drive provides improved traction,
there is a tendency to exceed safe turning and stopping
speeds. Do not go faster than road conditions permit.

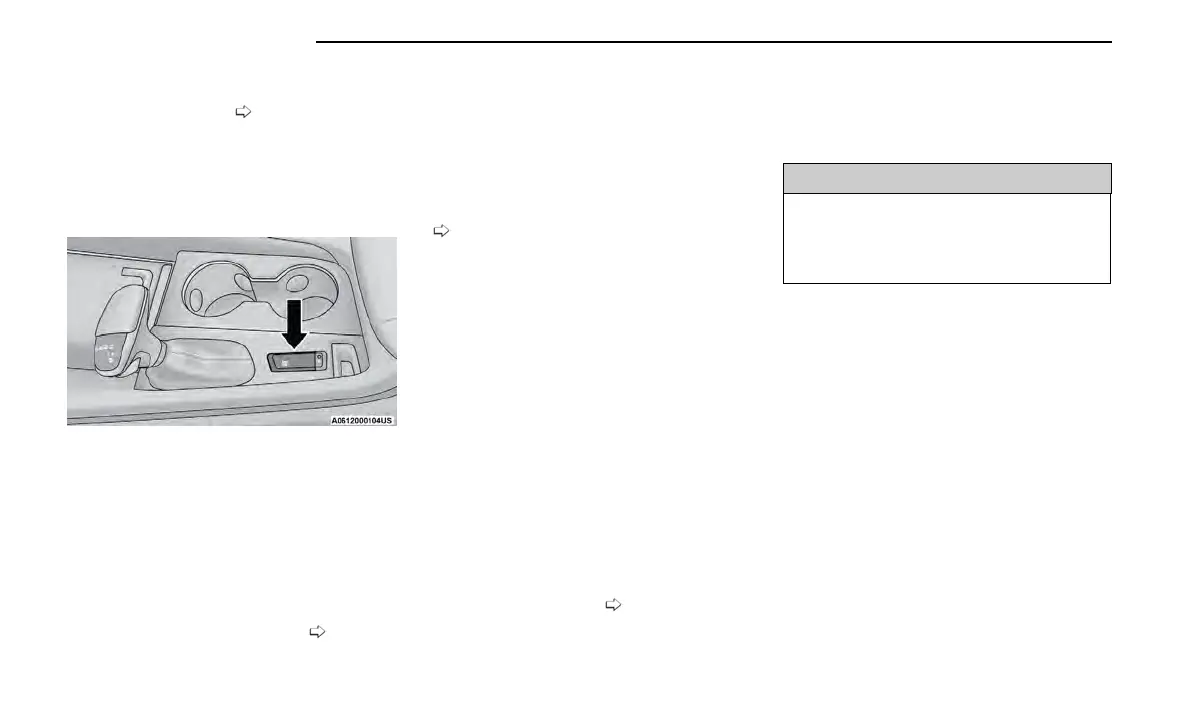

AWD Control Switch
