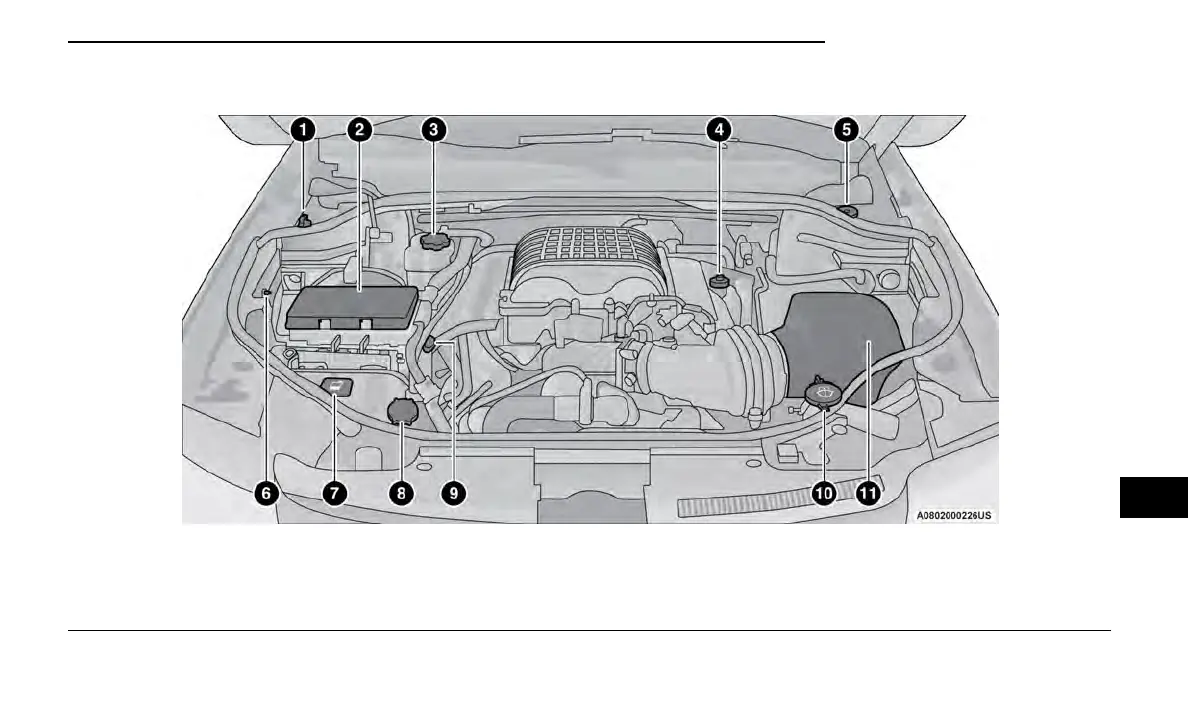

6.2L SUPERCHARGED ENGINE
1 — Remote Jump Start Positive Terminal 7 — Engine Coolant Reservoir Cap
2 — Power Distribution Center (Fuses) 8 — Engine Coolant Pressure Cap
3 — Intercooler Coolant Reservoir Cap 9 — Engine Oil Dipstick
4 — Engine Oil Fill 10 — Washer Fluid Reservoir Cap
5 — Brake Fluid Reservoir Cap 11 — Engine Air Cleaner, Filter
6 — Remote Jump Start Negative Terminal
SERVICING AND MAINTENANCE 261
8
