Mode Control
Select Mode by pressing the Mode button on
the faceplate, or one of the Mode buttons on
the touchscreen to change the airflow distri-
bution mode. The airflow distribution mode
can be adjusted so air comes from the instrument
panel outlets, floor outlets, defrost outlets and demist
outlets.
Panel Mode
Air comes from the outlets in the instrument
panel. Each of these outlets can be individu-
ally adjusted to direct the flow of air. The air
vanes of the center outlets and outboard
outlets can be moved up and down or side to side to
regulate airflow direction. There is a shut-off wheel
located below the air vanes to shut off or adjust the
amount of airflow from these outlets.
Bi-Level Mode
Air comes from the instrument panel outlets
and floor outlets. A slight amount of air is
directed through the defrost and side win-
dow demister outlets.
NOTE:
Bi-Level mode is designed under comfort conditions to
provide cooler air out of the panel outlets and warmer
air from the floor outlets.
Floor Mode
Air comes from the floor outlets. A slight
amount of air is directed through the defrost
and side window demister outlets.
Mix Mode
Air is directed through the floor, defrost, and
side window demister outlets. This setting
works best in cold or snowy conditions that
require extra heat to the windshield. This
setting is good for maintaining comfort while reducing
moisture on the windshield.
Climate Control OFF Button
Press and release this button to turn the
Climate Control ON/OFF.

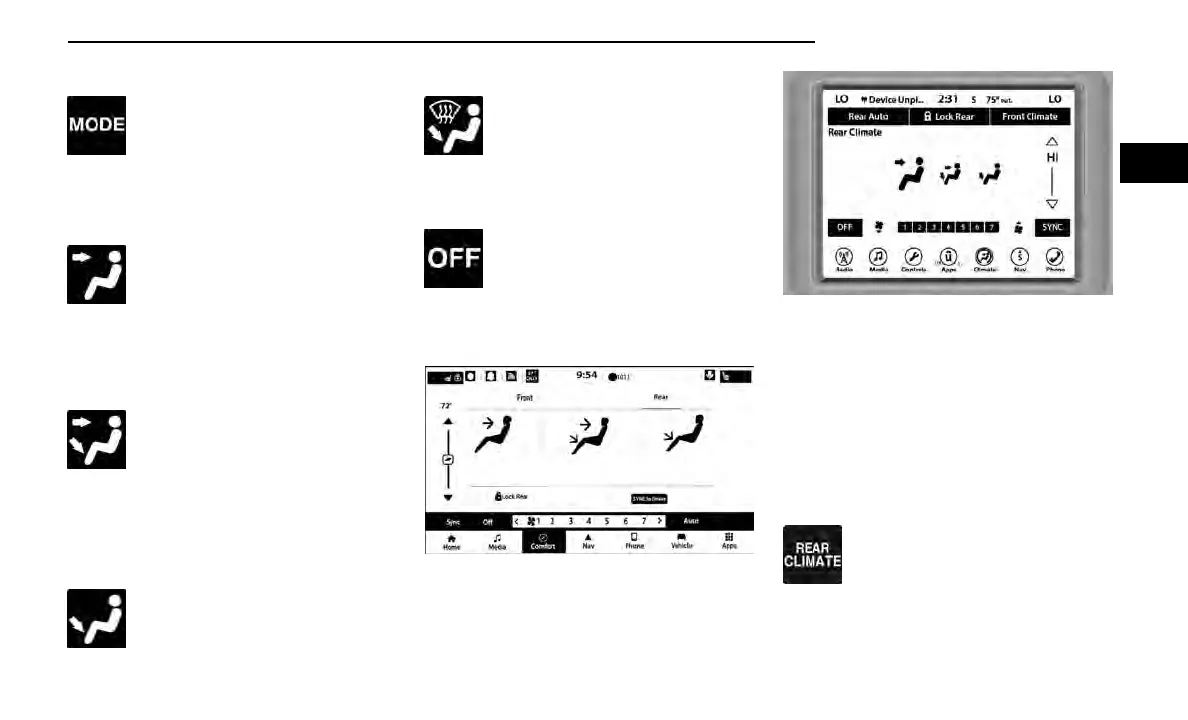

Controlling The Rear Climate Controls
From The Front ATC Panel
The Three-Zone ATC system allows for adjustment of the
rear climate controls from the front ATC panel.
To change the rear system settings:
•
Press the Rear Climate button on the touchscreen to
display the rear climate controls. The control func-
tions now operate the rear system.
•
Press the Front Climate button on the touchscreen
to return to the front climate controls.
REAR CLIMATE CONTROL BUTTON
Press and release this button to access the
rear climate controls. The Rear Climate indi-
cator will illuminate when the rear climate
controls are ON.
Front ATC Panel Uconnect 5/5 NAV With 10.1-inch
Display Rear Controls
Front ATC Panel Uconnect 4 With 8.4-inch Display Rear
Controls
GETTING TO KNOW YOUR VEHICLE 49
