Scaffold User Information Ringlock

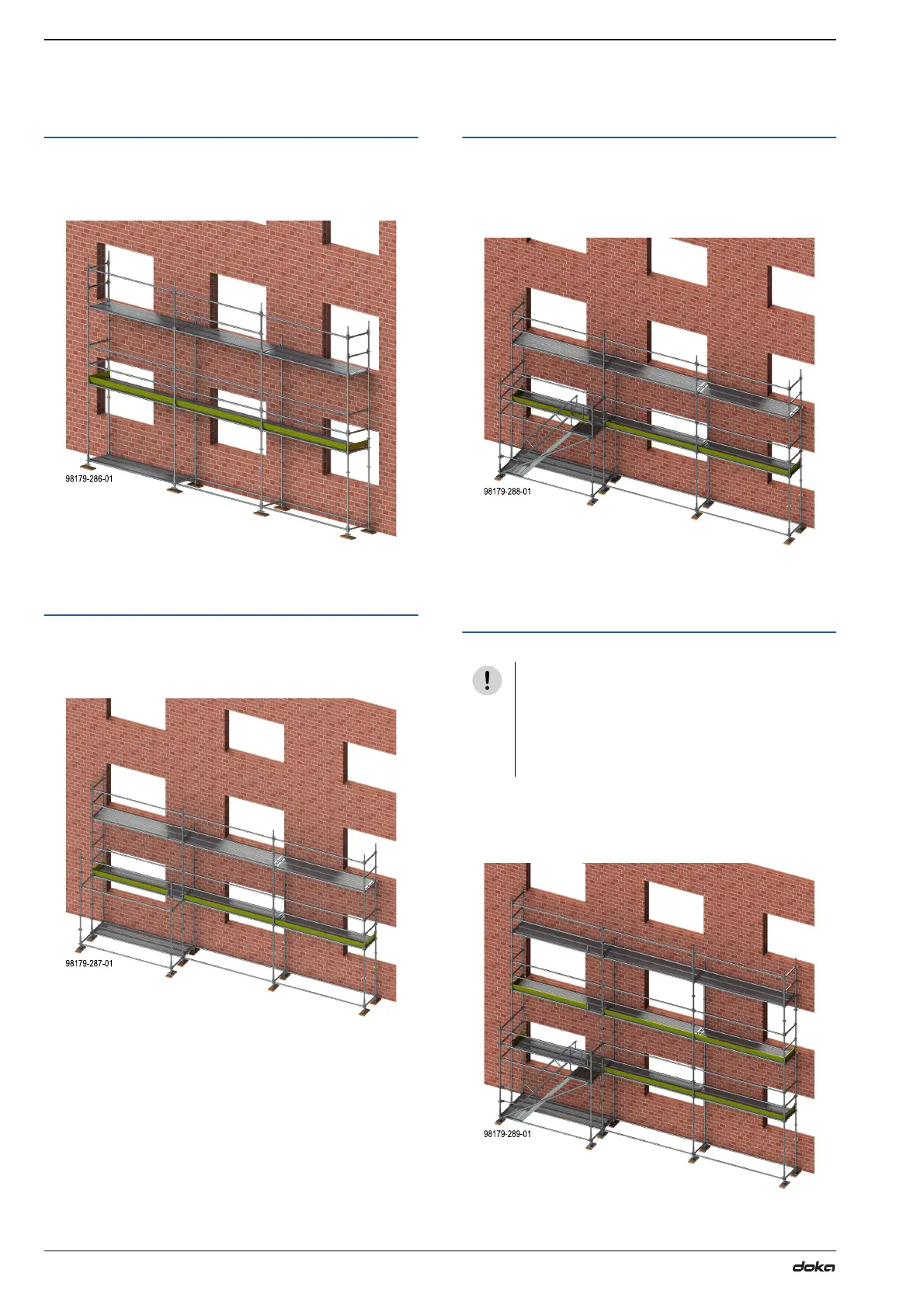

Stair Way Access Assembly on a Facade Scaffold
Step 1
➤ To use the stairway, fully assemble the scaffold up to
the second scaffold level, see section 'Assembly of
Facade Scaffold'.
Step 2
➤ Afterwards, the base jacks, the base collar and 3m
standards members of the stairway are connected to
the scaffold by means of 0.73m ledgers.
Step 3
➤ After installing the aluminum staircase and engaging
the wind latch, the outer railing can be installed and
the stringers can be wedge from the secured first
level.
Step 4
➤ After assembly of the aluminum staircase, the lead-
ing side protection on the staircase access panel can
be removed and now the next scaffolding level can
be installed.
NOTICE
➤ It should be noted that the fall-through pro-
tection or the inner guard rail on the stair
stringer is fitted before the side protection is
removed on every aluminum staircase start-
ing from the second platform level.
