Doka Ringlock - Ringlock Stair Tower (10 Leg) Layout

68 999817902 - 10/2022
Erection Guidelines for 10 Leg Stair Tower User Information Ringlock
Ringlock Stair Tower (10 Leg) Layout

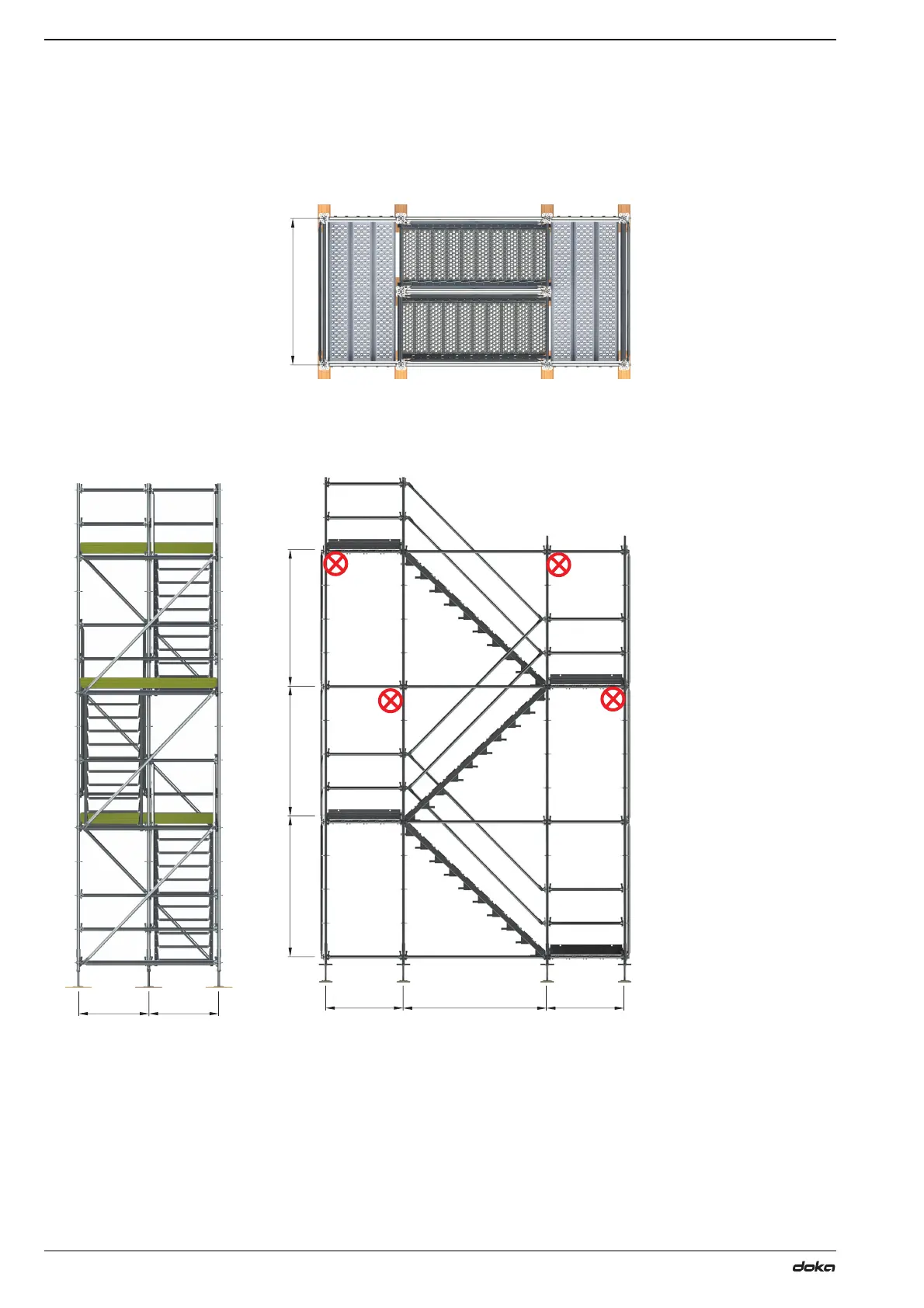

Below is the General Arrangement for the Ringlock 10-
Leg Steel Stair. See 'Stair Tower (10 Leg) Quantitiy
Lists'.
Plan
d ... 2.07 m
End Elevation
e ... 1.04 m
a ... 1.09 m
b ... 2.07 m
c ... 2.00 m
