Erection Guidelines for 4 Leg Stair Tower User Information Ringlock

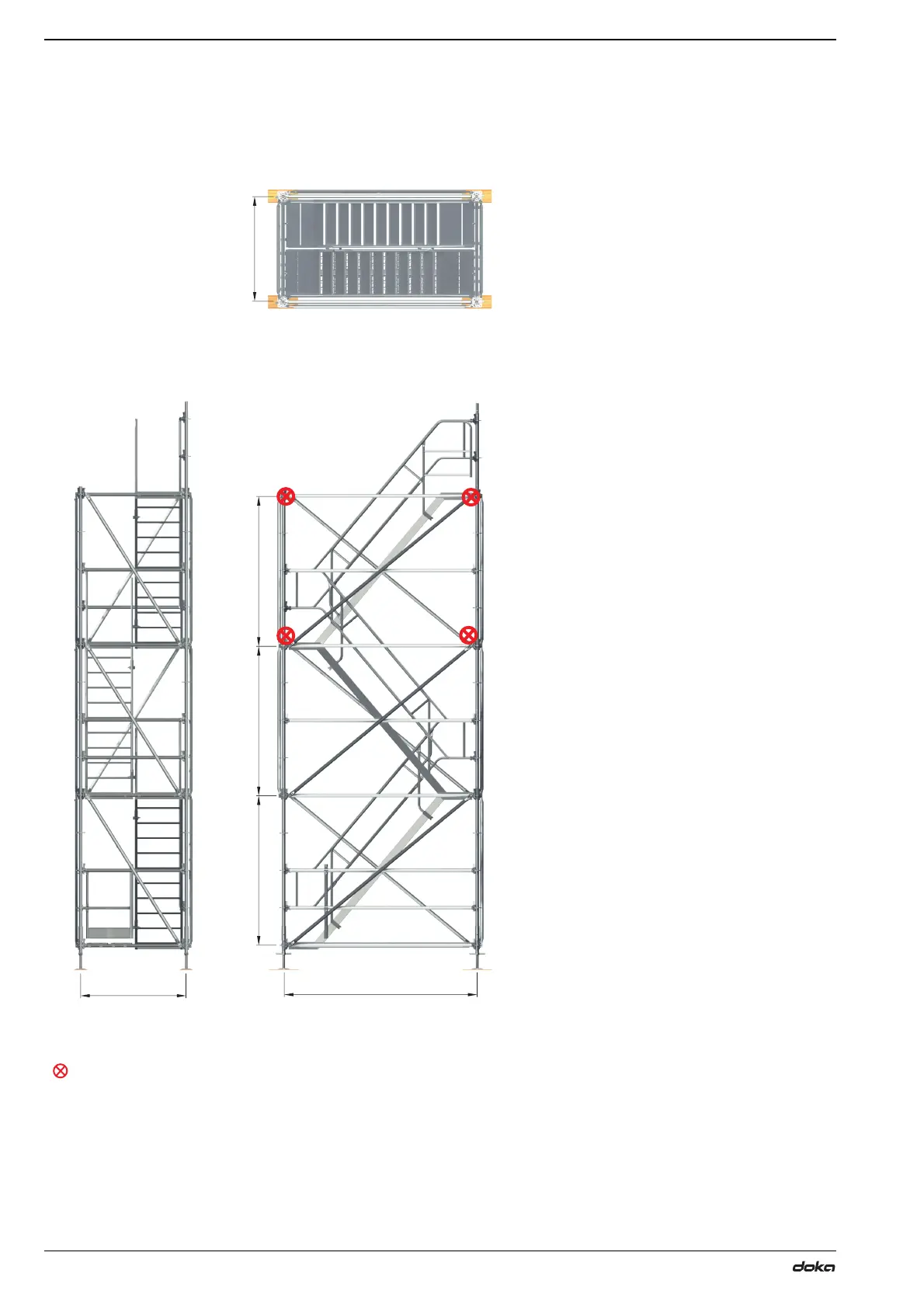

Ringlock Aluminum Stair Tower (4 Leg) Layout
The below detail is for a 4 Leg Stair Tower, see 'Rin-
glock Stair Tower (4 Leg) Quantity Lists'.
Plan
d ... 1.40 m
End Elevation
e ... 1.40 m
a ... 2.57 m
c ... 2.00 m
98179-249-01
d
98
17
9
-2
50
-
0
1
e
98
17
9
-2
38
-
0
1
a
c
c
c
... Denotes wall tie locations.
