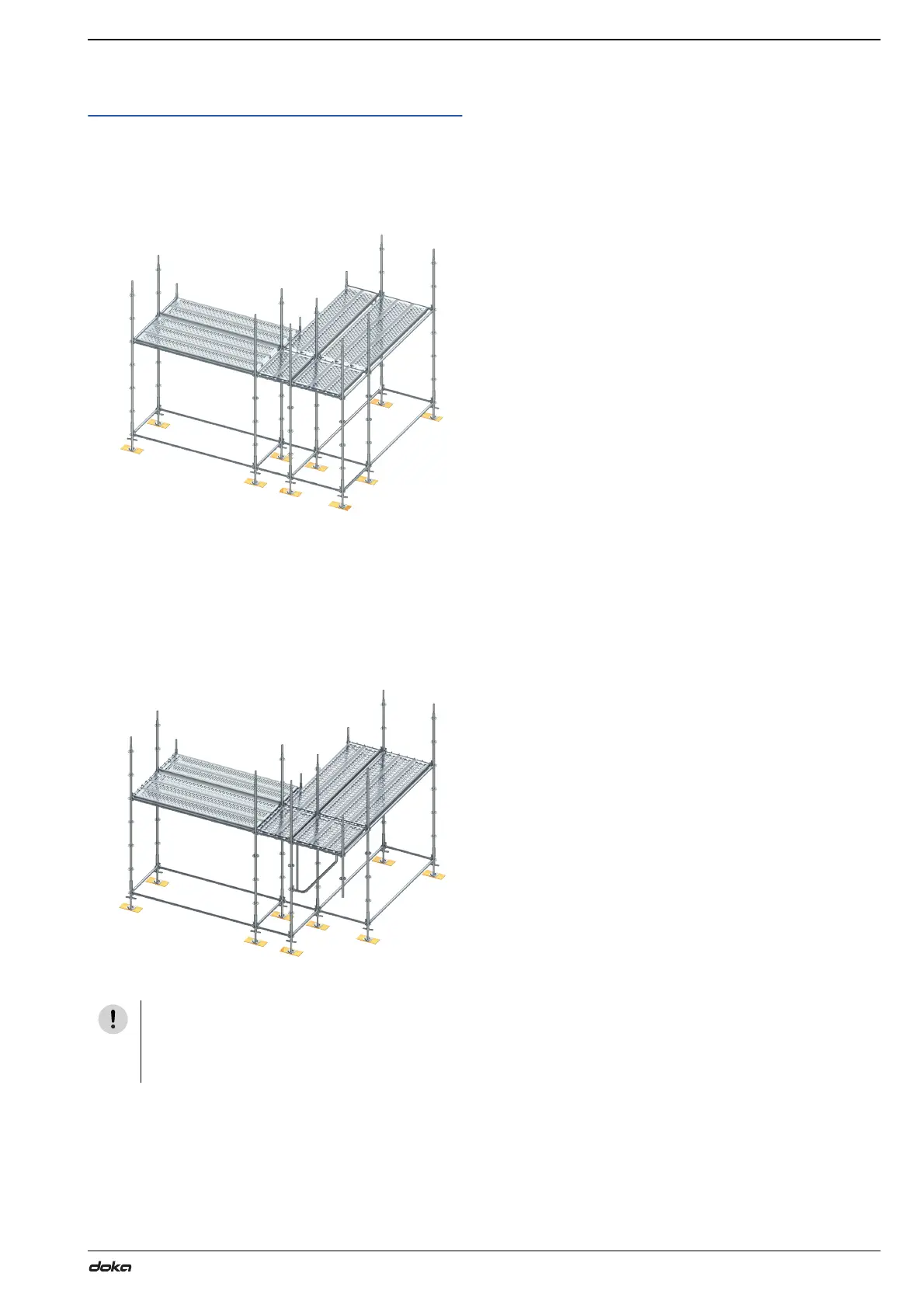

Corner Solutions with internal
Cantilever Platforms
▪ All Ledgers are present at the deck level and an
internal Standard is used. An equivalent size bay to
match the internal cantilever platform has been
added. A fully closed corner has been developed
with internal cantilevered platforms.
▪ The outside Ledger at platform level has been
replaced with a Console Bracket. In order to create
the Guardrail a Standard is attached to the terminal
on the Console Bracket. An equivalent size bay to
match the internal cantilever platform has been
added. A fully closed corner has been developed
with internal cantilevered platforms and minimizes
the number of components in comparison to the lay-
out above.
Bracing and Edge Protection removed for clarity.
NOTICE
Any 'hanging standard' must not be used as an
attachment point for Personal Fall Arrest Sys-
tems.
98179-216-01
98179-217-01
