User Information Ringlock Scaffold
45999817902 - 10/2022
Connections between Standards
▪ When using tubes and couplers as a connection
method, additional check coupler(s) should always
be installed.
▪ There are different methods connect the vertical
Standards together at the splice via Hanging Stand-
ard or Leg Locks in pair. The crimped spigot Stand-
ard is not recommended due to the lower capacity
then Hanging Standard (double bolt).

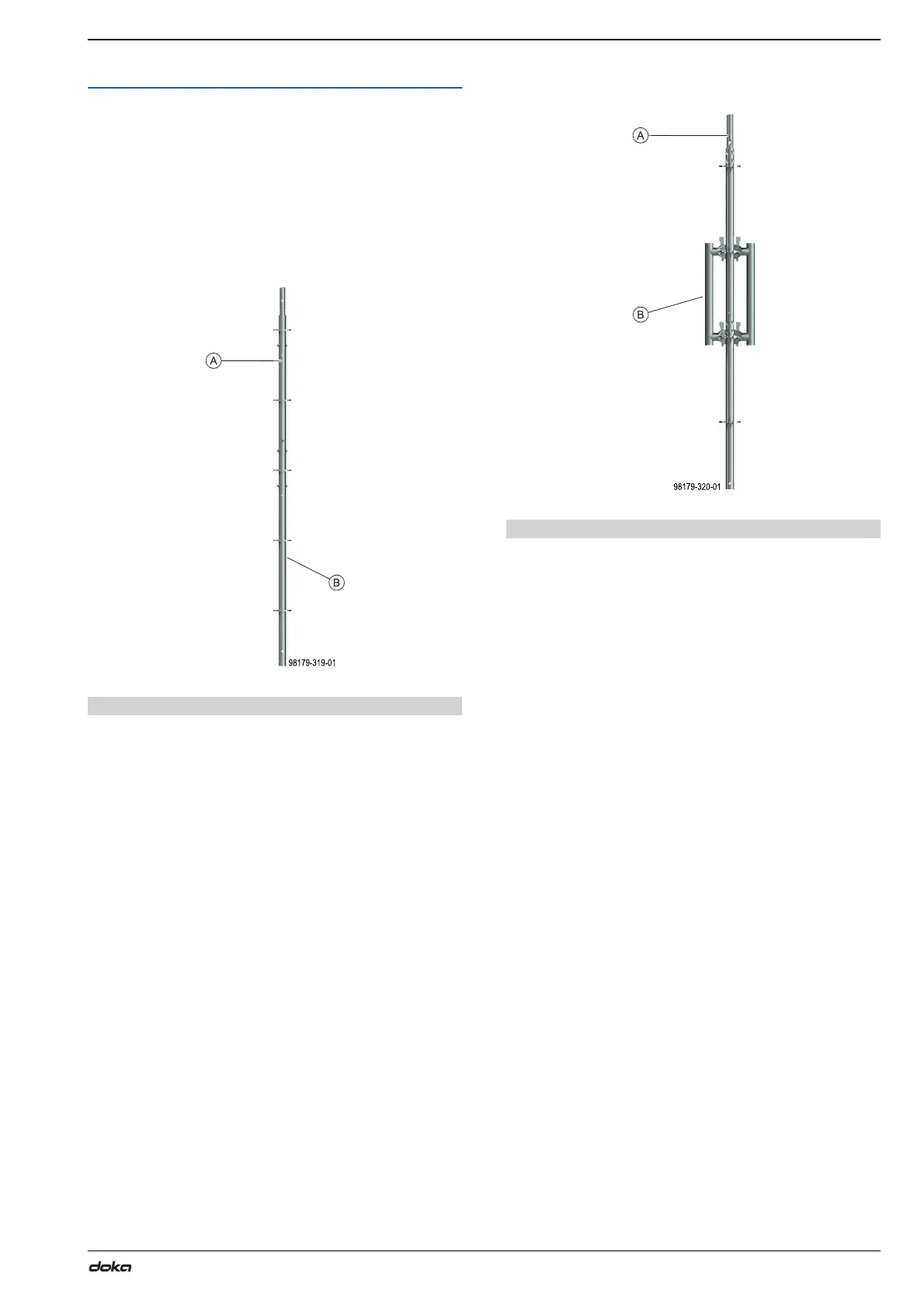

Detail 3: Hanging Spigot Standard Connection
Typical Suspension Load with this Arrangement.
Note:
Every connection between Standards in Suspension
must be bolted together.
Detail 4: Crimped or Bolted Spigot Standard Con-
nection
Typical Suspension Load with (2) XM12 Grade 8.8 Hex Nut and Bolt.
Note:
Every connection between Standards in Suspension
must be bolted together.
A Standard with Hanging Spigot
B (4) XM12 Grade 8.8 Hex Nut and Bolt at 90° to one another.
A Crimped or Bolted Spigot Standard
B Leg Lock
