User Information Ringlock Scaffold
47999817902 - 10/2022
Cantilever with Lattice Girder (Steel
and Aluminum
Cantilever shall be done with Lattice Girder with the
integration of Ringlock components. It is possible to
install steel or aluminum lattice girder to strengthen a
Ringlock cantilever, it must be designed specifically for
each application. The lattice girder should be installed
using at minimum 4 right angle couplers attached to 2
Ringlock Standards (back span). In order to install a lat-
tice girder at the cantilever, the Ringlock Standard must
be extended 1m below the working level. Counter-
weight and/or tie(s) shall be assessed to resist over
turning as required.

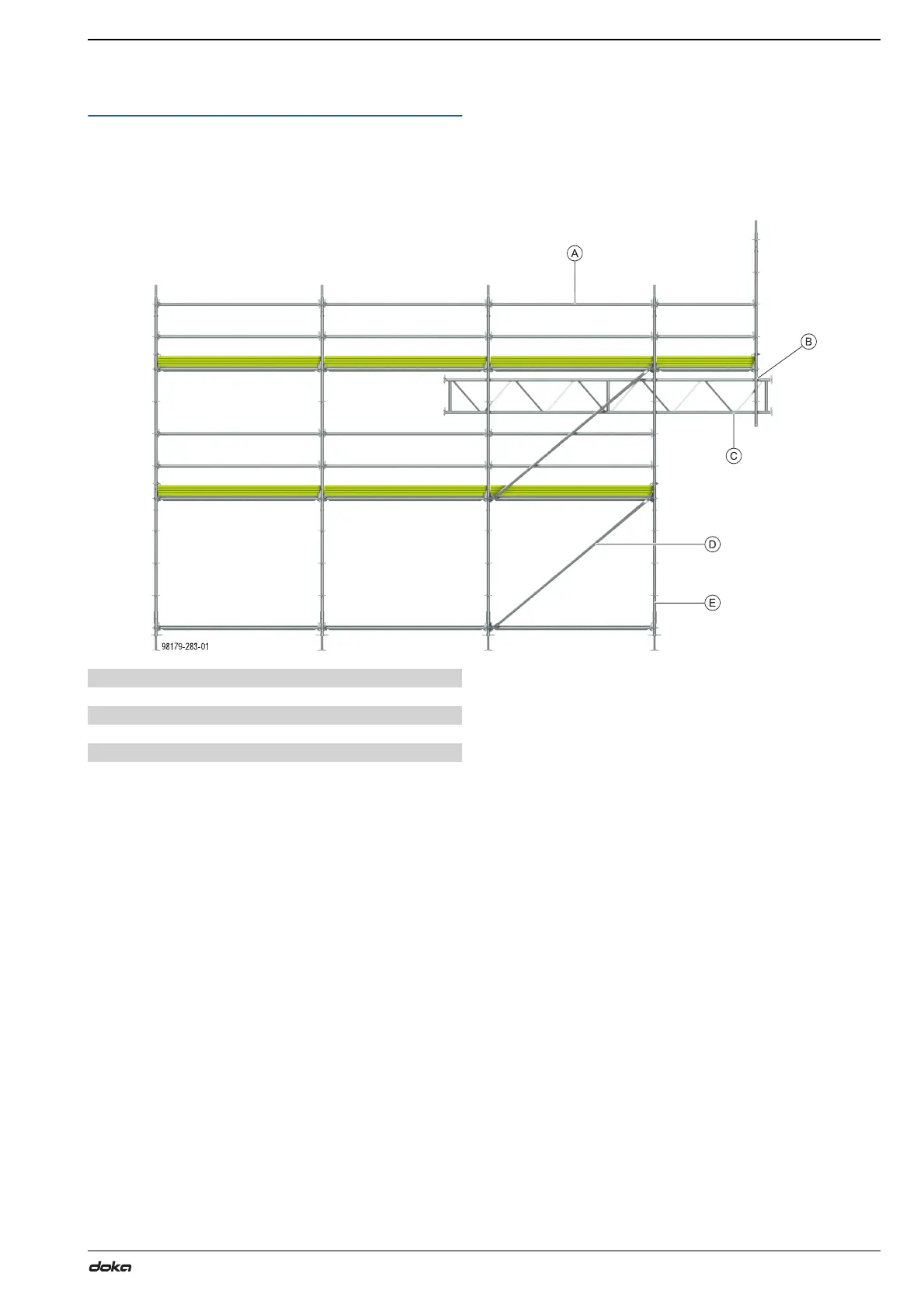

A Guardrail
B Right Angle Coupler
C Lattice Girder
D Bay Brace
E Standard
