Closing Gaps in Platforms
Between two Bays:
The Infill Plank covers any unwanted gaps between
adjacent bays. Install the Ringlock Infill Plank over the
Ringlock Ledger. Use this method when a Side/Hop-Up
Bracket is required for extending the working platform
or for creating a Birdcage with parallel Plank arrange-
ments.
The Infill Plank contains two side rails. At each end of
the side rail there are two holes. To prevent uplift or dis-
placement of the Infill Plank, use the two holes to
secure the Infill Plank to a Ledger.
Gap Filler Plank
Ensure that the Gap Filler Plank is adequate for the
imposed duty ratings on the platform.

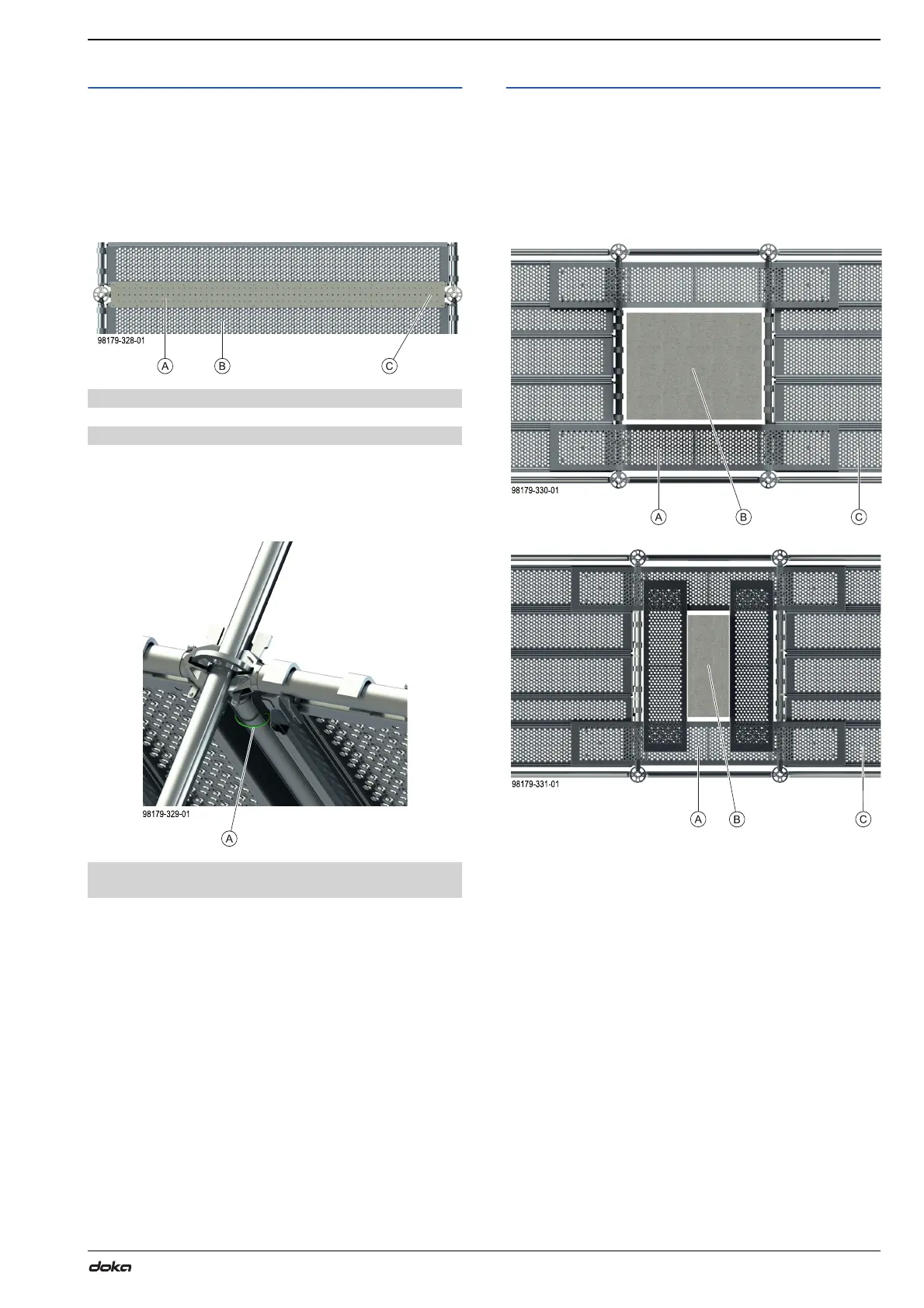

The illustration shows the use of Gap Filler Plank is
lapped over Ringlock Planks. Each Gap Filler Plank
must be secured at each end with plastic plugs (2 at
each end) or screws (1 at each end) to resist slipping
and/or uplift.
A Infill Plank
B Ringlock Plank
C Ringlock Ledger concealed by Infill Plank
A Infill Plank secured to Ledger using #9 wire or other approriate
means.
