56 999817902 - 10/2022
Erection Guidelines for 4 Leg Stair Tower User Information Ringlock

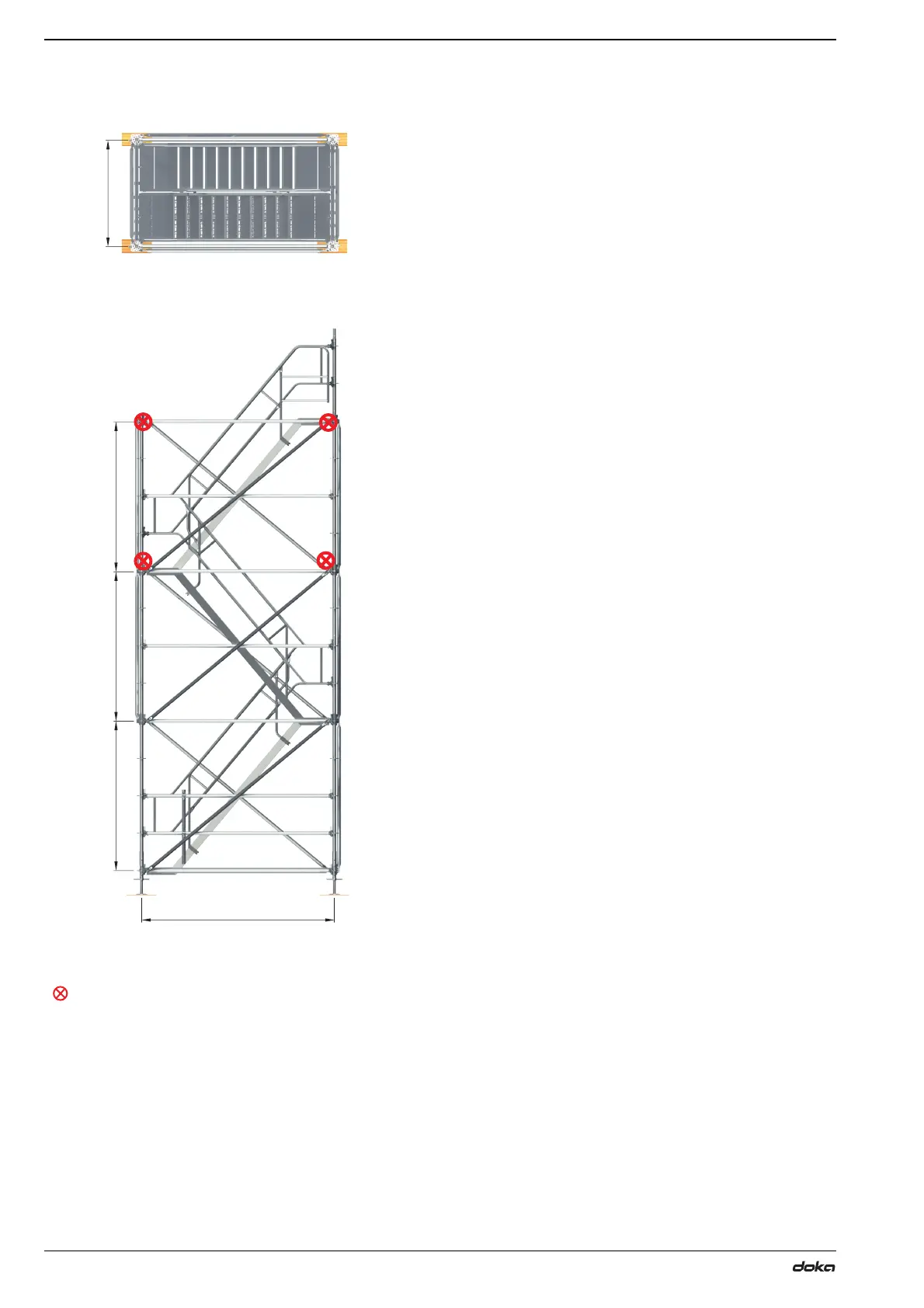

4-Leg Aluminum Stair Tower General Arrangement
Top View:
d ... 1.40 m
Side View:
a ... 2.07 m
c ... 2.00 m
ln addition to the parallel stairtower with two legs,
standard staircase tower can also be constructed with
Ringlock scaffolding components.
In the following, the 4-legged platform stair tower is pre-
sented, which consists of standard components of the
Ringlock scaffolding system and can be integrated into
an existing scaffolding or may also be used inde-
pendently. lf required, access to each scaffolding level
can be provided. Further assembly variants can be
found in the corresponding technical brochures.
... Denotes wall tie locations.
98179-237-01
d
17
-2
-
1
a
c
c
c
