22

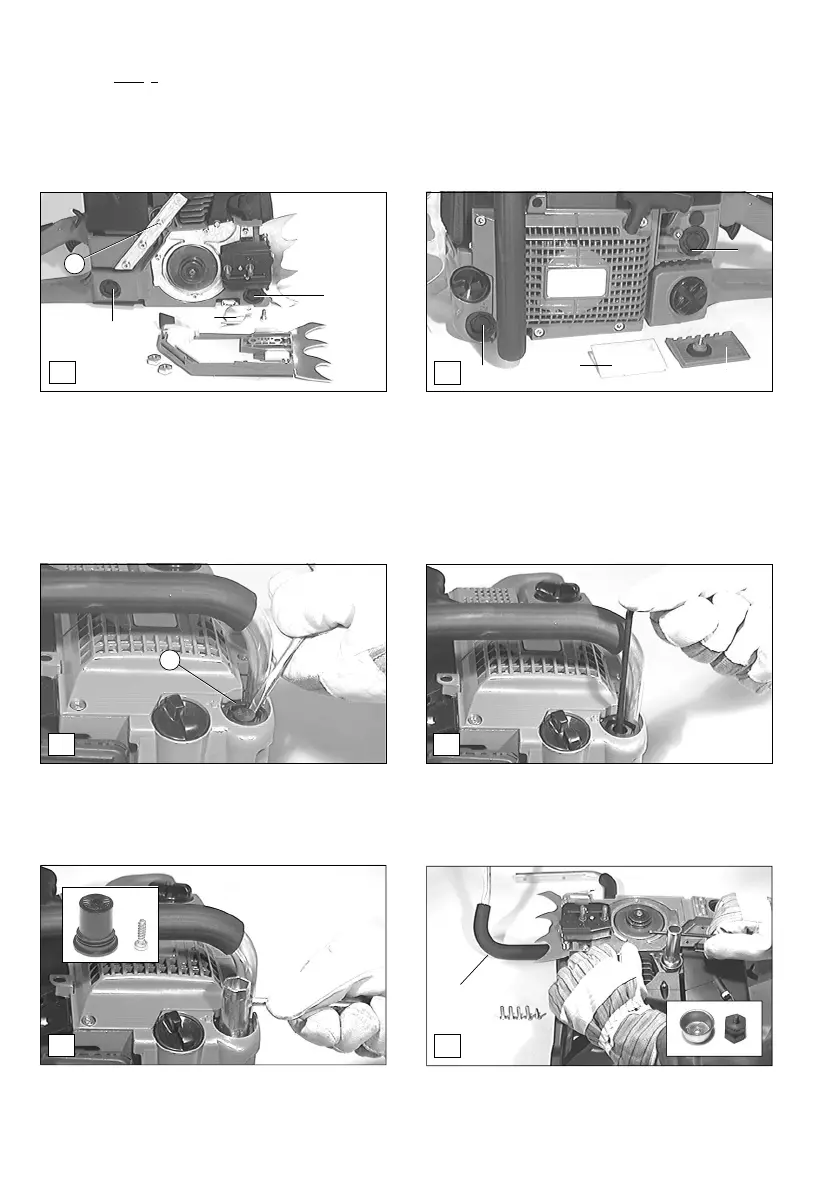

Replacing the vibration dampers
CAUTION: Always switch off the engine and pull the plug
cap off the spark plug (see "Replacing the spark
plug"). Always wear protective gloves!
CAUTION: Start the chain saw only after having assembled
it completely and inspected!
Always replace all fi ve vibration dampers.
- The vibration damper (E/1) is installed next to the identifi cation
plate.
- The vibration damper (E/2) is installed underneath the guide
bar support. The chain catch (a) must be removed.
- The vibration damper (E/5) is installed under the mounting
arm of the tubular handle.
- Put the saw chain on its side and carefully remove the
protective cover (G/4) by means of the universal wrench.
Replacing vibration dampers 1 - 4
- The vibration damper (F/3) is installed underneath the oil
tank cap.
- The vibration damper (F/4) is installed underneath the pre-
fi lter. The cover (a) and pre-fi lter (b) must be removed.
- Use the offset screw driver to loosen the screw inside.
- Carefully demount the vibration damper by means of the
universal wrench.
- The vibration damper is mounted in the reverse order.
- Demount the tubular handle (a) (5 screws).
- Use the socket wrench (accessories, not delivered with the
chain saw) to demount the vibration damper carefully.
- The new vibration damper is mounted in the reverse order.
Replacing vibration damper 5
J
a
I
E
3
F
2
1
a
b
a
4
5
G
H
4
