PS-9010
Extract from the spare parts list
Use original DOLMAR spare parts only. For performance of repairs and replace-
ment of other parts your DOLMAR service centre should be consulted.

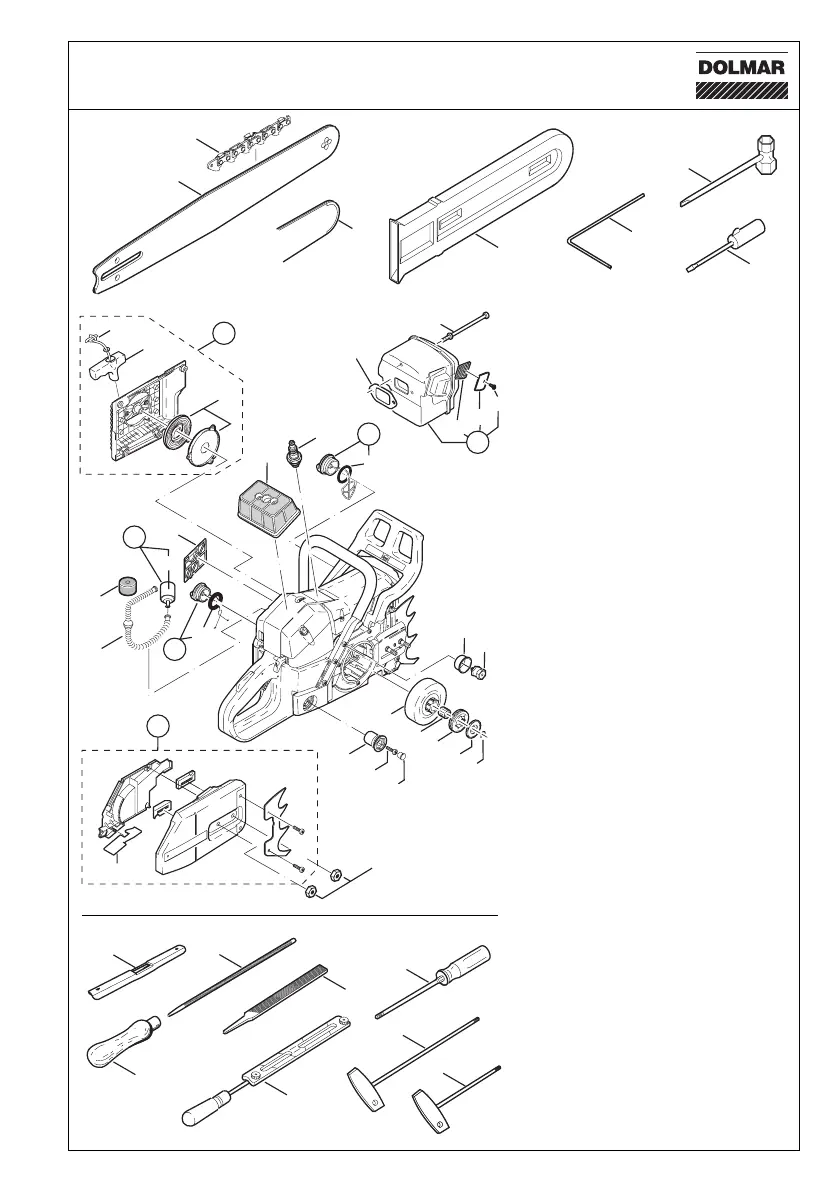

Pos. DOLMAR No. Qty. Denomination
1 415 050 452 1 Solid nose bar 20" (50 cm)
415 060 452 1 Solid nose bar 24" (60 cm)
415 074 452 1 Solid nose bar 29" (74 cm)
2 415 050 652 1 Sprocket nose bar 20" (50 cm)
415 060 652 1 Sprocket nose bar 24" (60 cm)
3 528 099 072 1 Saw chain 3/8" for 20" (50 cm)
528 099 080 1 Saw chain 3/8" for 24" (60 cm)
528 099 096 1 Saw chain 3/8" for 29" (74 cm)
5 952 020 150 1 Chain protection, 20"
952 020 160 1 Chain protection, 24"
952 030 180 1 Chain protection, 29"
6 024 112 300 1 Starter device cpl.
7 122 164 010 1 Starter cable ø4x1000 mm
8 965 402 262 1 Starter grip
9 020 163 031 1 Return spring
10 024 173 230 1 Air fi lter (Robkofl ok)
11 965 603 021 1 Spark plug
12 010 114 050 1 Oil tank cap cpl.
13 963 228 030 1 O-Ring 28x3
15 024 174 020 3 Screw M6
16 965 525 101 1 Gasket
17 024 174 153 1 Muffl er
18 024 174 160 1 Spark collector
18a 024 174 170 1 Defl ector plate
19 650 008 668 1 Self-tapping screw 4.2x9.5
20 965 551 251 1 Housing
21 965 403 430 1 Vibration damper
22 965 403 462 4 Vibration damper
23 913 455 204 4
✪ Socket-head-screw M5.5x20
24 965 404 740 4 Plug
25 024 223 041 1 Clutch drum
26 962 210 024 1 Needle cage 10/16x12
27 119 224 070 1 Sprocket 3/8", Z=7
28 181 224 081 1 Thrust washer
29 927 308 000 1 Locking washer 8
30 024 213 260 1 Sprocket guard cpl.
36 024 208 004 2 Hexagonal nut M8
37 963 601 121 1 Suction head
38 963 601 240 1 Felt fi lter
39 965 404 700 1 Fuel line
40 965 404 520 1 Base packing ring
41 965 451 901 1 Fuel tank cap cpl.
42 963 232 045 1 O-Ring 31x4.5
43 024 173 081 1 Pre-fi lter
44 941 717 191 1 Universal wrench SW 17/19
45 940 827 000 1 Angled screw driver
46 944 340 001 1 Carburetor screw driver
Accessories (not delivered with the chain saw)
50 953 100 090 1 Chain gauge 3/8"
51 953 004 010 1 File handle
52 953 003 040 1 Round fi le ø 5.5 mm
52 953 003 070 1 Round fi le ø 4.8 mm
53 953 003 060 1 Flat fi le
54 953 009 000 1 File holder
(with round fi le ø 5.5 )
- 953 007 000 1 File block for guide bar
55 944 500 860 1
✪ Screw driver
56 944 500 862 1
✪ Screw driver 200 mm
57 944 500 861 1
✪ Screw driver 100 mm
- 944 602 000 1 Piston stop
- 944 500 621 1 Socket wrench
(for vibration damper)
- 949 000 035 1 Combined can
(for 5l fuel, 2.5l oil)
