2 Reader Installation
2.1 Installation Overview
The Reader has been designed with easy installation in mind. The Figure 2.1-1 provides you
with any details that you will need to know.

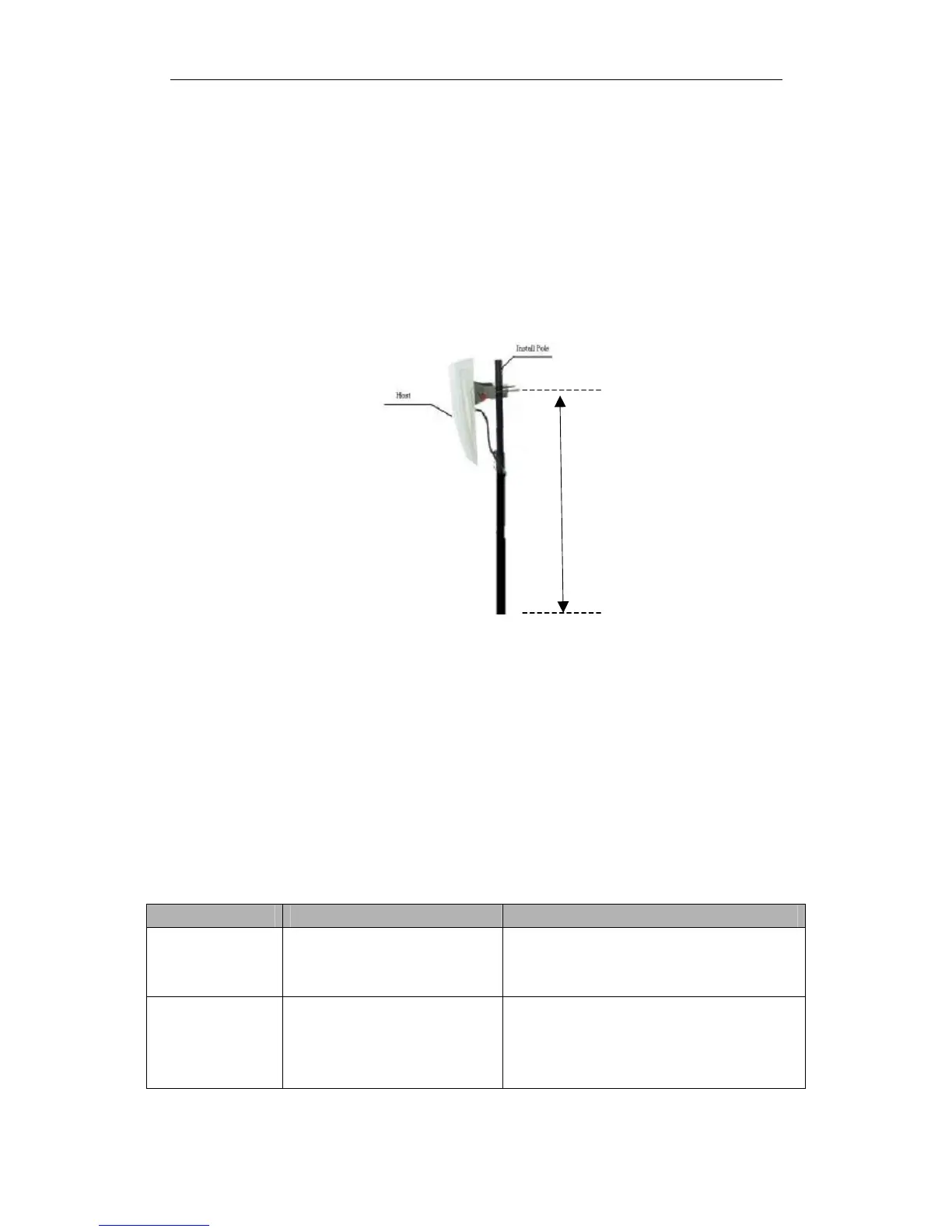

Figure 2.1-1 Installation
2.2 Installation Summary
There are two ways for installing by install position.
One installs on the side of the lane which we called Side Installation, while the other installs on
the overhead of the lane which we called Overhead Installation. For details please refer to the
Table 2.2-1
Table 2.2-1
Install Way Advantage Disadvantage
Side Installation 1. Easy to install with the pole
2. Easy for maintenance
1.The read range is subject to the install height & the
angle of the reader
2. The tag should installed to the side near the reader
Overhead Installation 1. The reader range is larger & wider
2. The tag position is more flexible
1. It‘s not easy for maintenance due to the install
height of the reader.
2. The extension power wire & communication wire
requires longer & thicker
