User Manual of DOLCWIUHFP
7
When the site meets following conditions, we suggest choosing the Overhead Installation way, otherwise
choosing the Side Installation way:
1. There are many types of car, especially with both large vehicle and small car;
2. The position of the tag is different from different type of vehicles;
3. The drive position is available for both left and right side
2.3 Side Installation
2.3.1 Overview
Take a simple parking lot for example: the width of the lane is 3.5 M, while the distance
between Gate and Ticket Box is 5 M. The reader is expec
ted to be placed to allow time for the
gate to open so the car can roll through without stopping while not allowing room for an untagged
car to be between the car being read and the gate. There 2 opinions position for installing Reader,
for the details please refer to the Figure 2.3.1-1

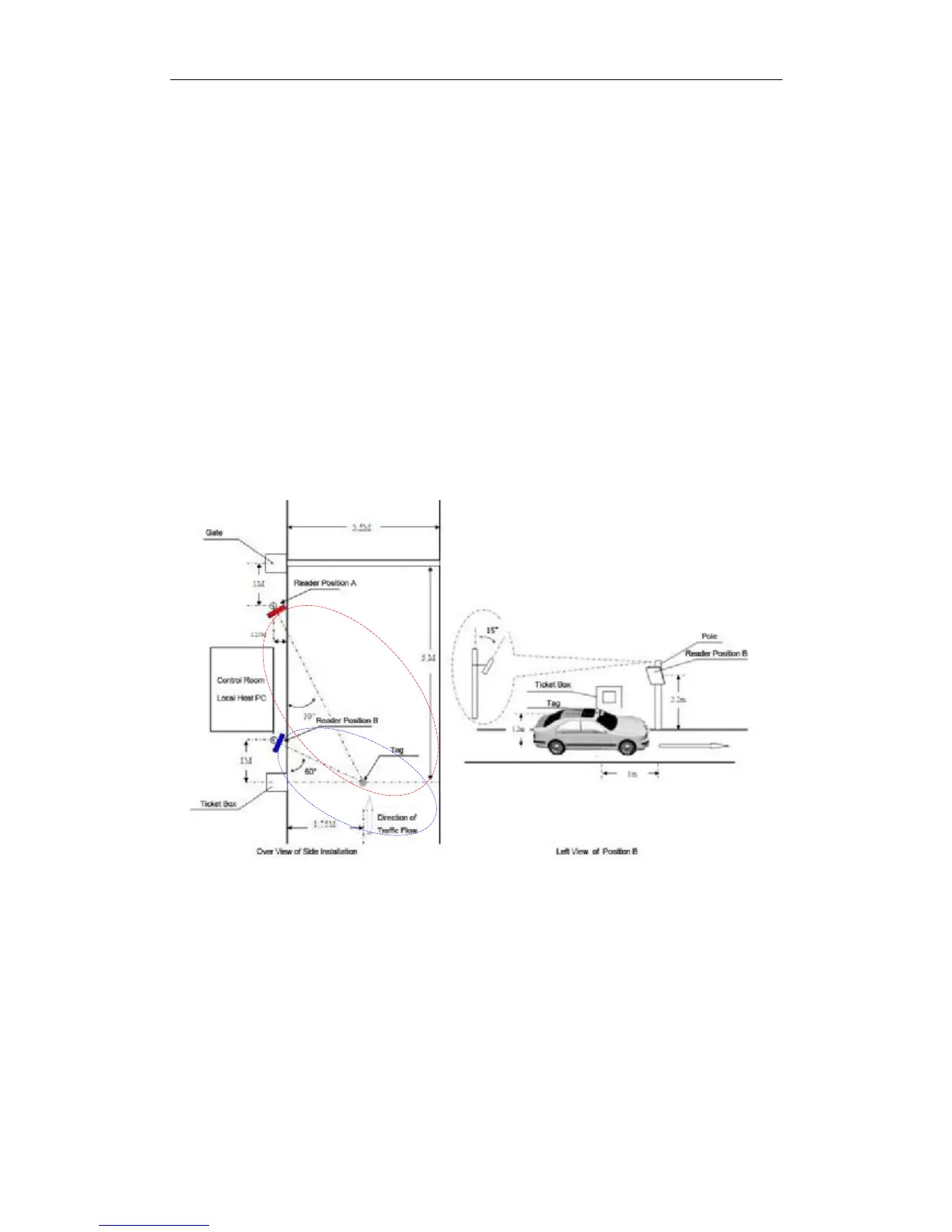

Figure 2.3.1-1
2.3.2 Instruction
The instruction mentioned in the Table 2.3.2-1 is based on the example showed on the Figure
2.3.1-1, if not suitable for your site, you can contact with Transmitter Solutions for assistance.
