7.10 Repositioning the Thermal Bulb

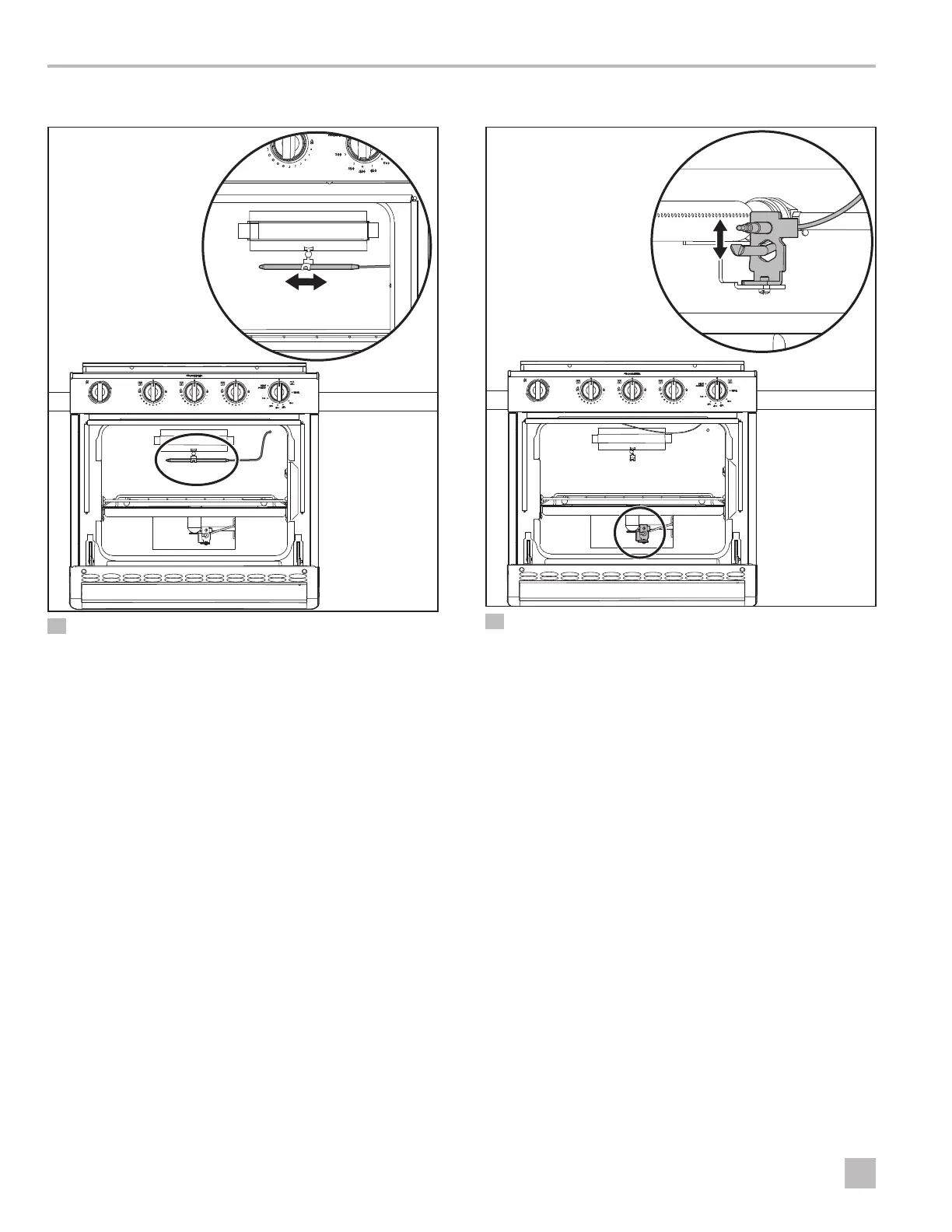

14 Repositioning the Thermal Bulb
1. Open the oven door.
2. Locate the thermal bulb. See Component Locations
(on page 8) for more detail.
3. Gently move the thermal bulb using your hand until
the bulb is horizontal and centered in the clip on the
back of the oven.
7.11 Aligning the Thermocouple
15 Aligning the Pilot and Thermocouple
1. Open the oven door.
2. Locate the pilot assembly. See Component Locations
(on page 8) for more detail.
3. Gently bend the thermocouple using your hand until
it is aligned with the pilot. The pilot flame should
engulf the thermocouple when lit.
