Rooop Air Conditioner (Air Distribution Box, Wall Thermostat Controls) Installation
qq
ww
ee

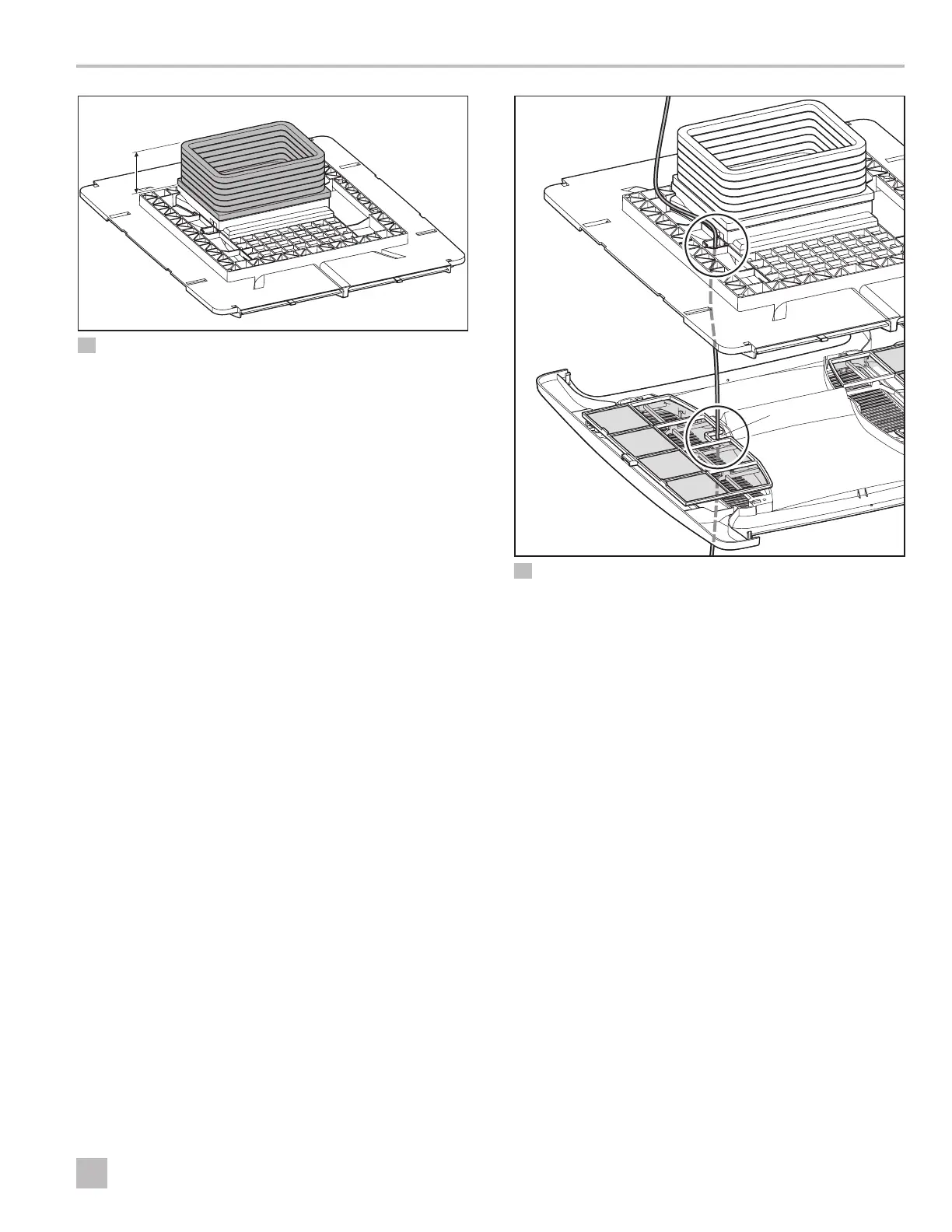

22 Confirming the foam divider height measurement
q
Flat surface of the ADB
e
Full height
measurement (equal
to the roof thickness)
w
Stack of foam dividers
5. Place the ADB face down on a stable, protected, flat
surface.
6. Stack the foam dividers required and place them
onto the ADB.
7. Measure the full height, from the flat surface of the
ADB to the top of the foam dividers to confirm the
full height is equal to the previously determined roof
thickness.
8. Adjust the number of foam dividers to reach the
correct full height, as necessary.
ww
qq
ee
23 Passing the wire through the filter notch
q
Filter
e
2-Conductor light cable
w
Filter notch
9. Slide out the filter to expose the filter notch.
10. Pass the 2-pin lighting cable (if equipped) through
the filter notch.
