7. OPERATING INSTRUCTIONS
7. OPERATING INSTRUCTIONS
7.1 SYSTEM VOLTAGE AND CURRENT

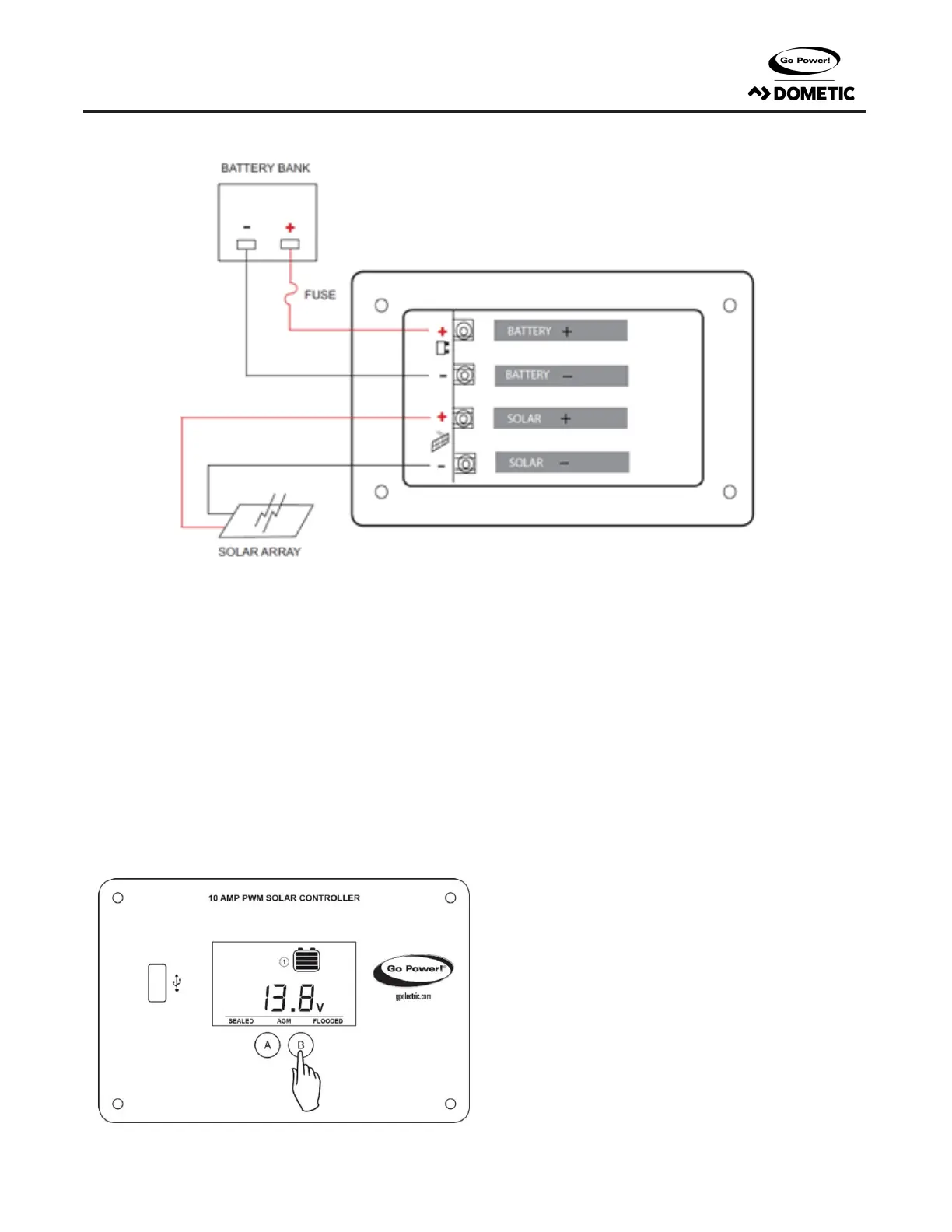

When the GP-PWM-10-FM is connected to the battery, the controller will go into Power Up mode.
Icons Displayed: All segments of the numerical display; backlight blinks. Depending on the battery voltage when the GP-PWM-10-FM Power Up
occurs,thecontrollermaydoaBoostChargeorquicklygointoFloatCharge.TheChargingProleselectedwillcommencethefollowingdayaftera
PowerUp(refertotheChargingProleChartonpage11formoredetails).
7.2 SETTING THE BATTERY CHARGING PROFILE
Toselectthebatterychargingprole,pressandholdtheB Button. This
willcausethecurrentbatterytypetoash.
Then,presstheBButtontotogglethroughtheproleoptions:Sealed/
Gel, AGM/LiFePO4 or Flooded.
Toconrmthebatteryprole,pressandholdtheA Button for 3 seconds.
Non-volatile memory: Any settings made on the GP-PWM-10-FM will be
saved even when the power has been disconnected from the controller.
RefertotheBatteryChargeProleChartbelowfordetailsoneachprole.
7.2 SETTING THE BATTERY CHARGING PROFILE
